Help CenterAir Power Hammer Pneumatic Power Forging Hammer for Sale C41-250KG
Related Products
-
Air Power Hammer Pneumatic Power Forging Hammer for Sale C41-560KGUS$ 310000 - 320000MOQ: 1 Set -
Air Power Hammer Pneumatic Power Forging Hammer for Sale C41-750KGUS$ 400000 - 410000MOQ: 1 Set
-
Air Power Hammer Pneumatic Power Forging Hammer for Sale 1000KGUS$ 500000 - 510000MOQ: 1 Set
-
C41 Series Pneumatic Forging Hammer C41-15KGCNY 16000 - 17000MOQ: 1 Set
-
C41 Series Pneumatic Forging Hammer Blacksmith HammerCNY 16000 - 17000MOQ: 1 Set

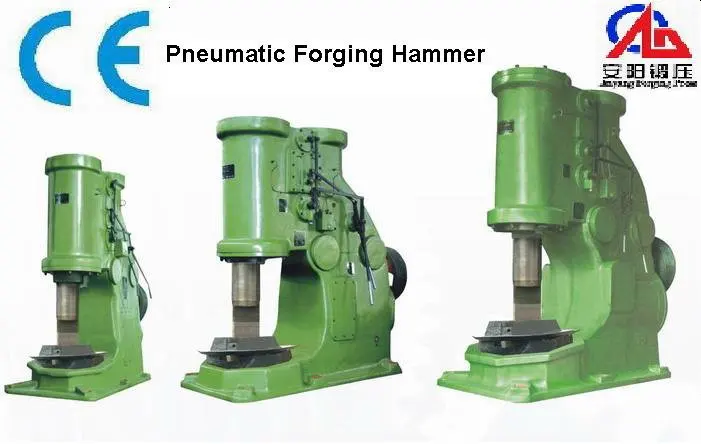

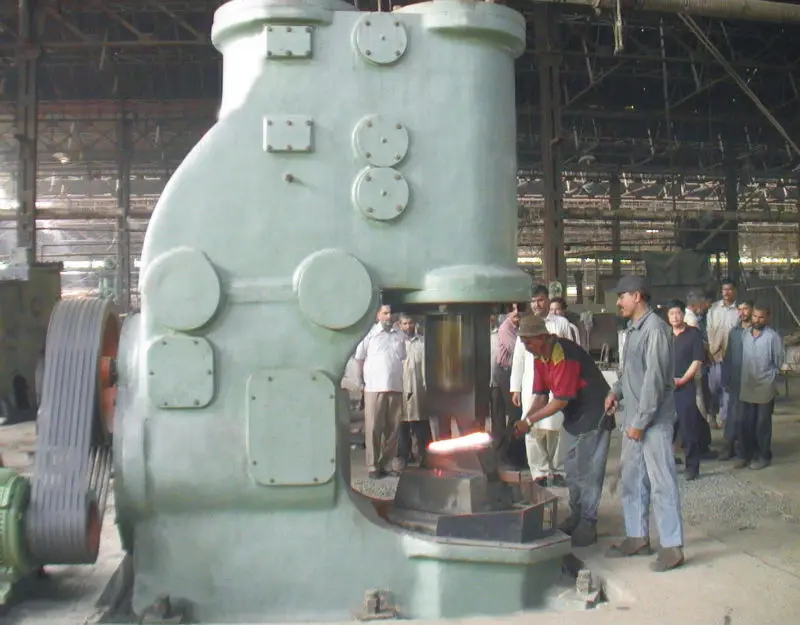

Anyang pneumatic forging hammer from 150kg to 2000kg are widely used in the industrial open die forging. The frames are cast irons,and the internal parts are forged steel and precision machined. The design is based on the time proved designs of the old European pneumaitc hammers many which are still in use today.
The features and advantages:
a, the Pneumatic forging hammer has its self-contained cylinder,require no ancillary power raising plant.
B, It is equipped with a self-priming lubricating oil pump, during operating, it can realize the automatic lubrication.
C, Easy to operate, by manipulating the hand lever or foot-pedal.
The main technical parameter of industrial pneumatic forging hammer | ||||||||
| Model | C41-150 | C41-250 | C41-400 | C41-560 | C41-750 | C41-1000 | C41-2000 | |
| Weight of falling parts(kg) | 150 | 250 | 400 | 560 | 750 | 1000 | 2000 | |
| Maximum hit energy(kj) | 2.5 | 5.6 | 9.5 | 13.7 | 19 | 27 | 54 | |
| Hit number(min-1) | 180 | 140 | 120 | 115 | 105 | 95 | 80 | |
| Heigh of working area(mm) | 370 | 450 | 530 | 600 | 670 | 800 | 1000 | |
| Tup axis to frame front(mm) | 350 | 420 | 520 | 550 | 750 | 770 | 950 | |
| Dimension of top die surface(L x W) (mm) | 200x85 | 220x100 | 250x120 | 300x140 | 330x160 | 365x180 | 400x300 | |
| Dimension of bottom die surface(L x W) (mm) | 200x85 | 220x100 | 250x120 | 300x140 | 330x160 | 365x180 | 400x300 | |
| Forges | Square(mmxmm) | 130x130 | 145x145 | 220x220 | 270x270 | 270x270 | 290x290 | 350x350 |
| Round(mm) | Φ145 | Φ175 | Φ240 | Φ280 | Φ300 | Φ320 | Φ400 | |
| Motor | Type | Y180M-4-B3 | Y180L-4-B3 | Y200L-4-B3 | Y280S-6-B3 | Y280M-6-B3 | Y315S-6-B3 | Y315L2-6-B3 |
| Power(kw) | 18.5 | 22 | 30 | 45 | 55 | 75 | 132 | |
| Weight | Hammer(kg) | 3260 | 5000 | 8000 | 9800 | 17000 | 20000 | 48000 |
| Anvil block(kg) | 1500 | 2500 | 4800 | 6720 | 9000 | 13000 | 24000 | |
| Outside Size | 2390x1085 x2150 | 2639x1155 x2540 | 2785x1400 x2884 | 3464x1500 x3157 | 3905x1370 x3175 | 4125x1500 x3770 | 4200x2300 x4390 | |
Pneumatic forging hammer for steel ball
1,Low investment, fast running,and can produce different diameter of steel balls.
2, Material can be steel bar or billet, length is not limited.
3,It is easy to arrange production.
4,Steel ball surface quality good.
5,Forged steel ball is widely used in the field of mine plant,steel plant,chemical plant,constructionmaterial plant,cement plant,power plant etc.
Anyang Forging press is the top manufacture of forging equipment include closed die forging machines and open die forging machines in China. It was established in 1956, covers an area of about 80 acres and has 1600 staffs. Our company has passed ISO9001:2008 quality certification and all our product has obtained CE certificates.
Our main products are: Closed die forging equipment, free forging equipment and forging auxiliary machines.
The products have been exported to USA, Canada, Mexico, Brazil, Chile, UK, Germany, France, Italy, Norway, Romania, Russia, Slovenia, Burma, India, Pakistan, Egypt, South Africa etc., totally more than 60 countries and regions.
