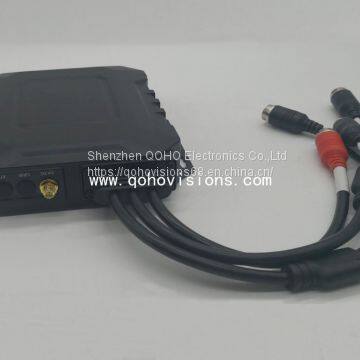

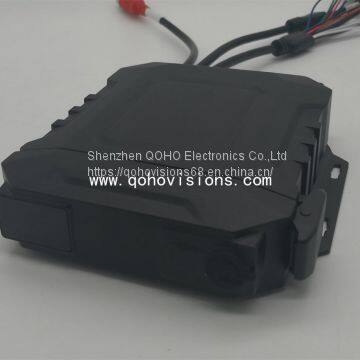

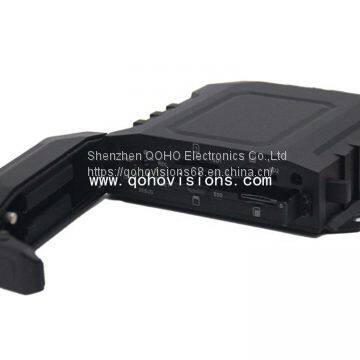

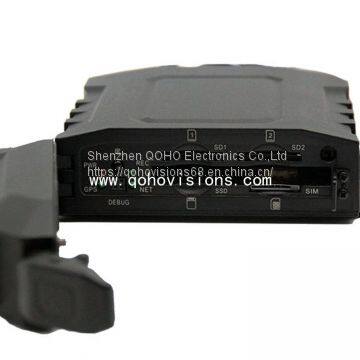

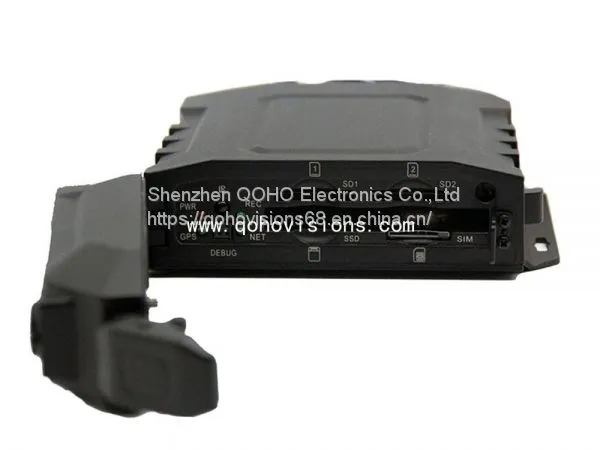

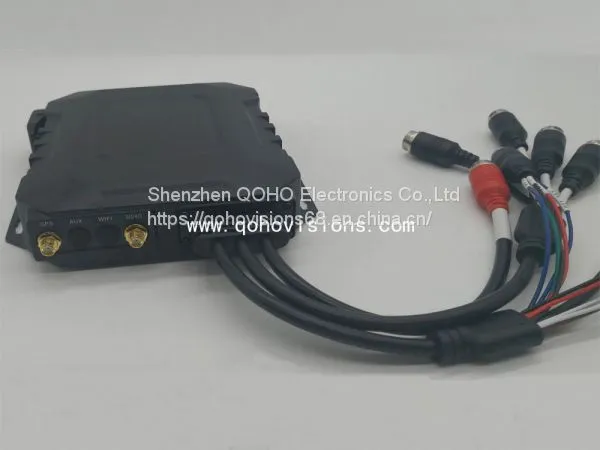

 4-CH 720P Waterproof SSD Mobile DVR

4 CH 720P AHD SSD SD card Waterproof IP67 Hand-size MDVR;

H.264 high profile.Waterproof IP67 housing design;

Ipad/Iphone/Android and PC remote view in real time.

Wide voltage  support over-load ,short circuit ,reverse connect protection

UPS power for continual work;

Basic type: Support 2 sd cards &external fire box, max support 256GB

SSD MDVR manufacturer Functional:Support 2 sd cards & external fire box, And supports 2.5' SSD,max support 2TB.

4G/WIFI transmit; multiple grade image quality transmitting option

GPS/BD/GLONASS global positioning

Powerful software platform including remote preview, playback, broadcast, talk and more

Support multiple serial port extension

With aviation connector, stable and reliable;

Special interface for mobile DVR, convenient for transportation and installation.

Support speed, turn, brake, reversing, door opening and closing.

Support G-sensor,Geo-fence,GPS, 3G/4G, WIFI(more fast and stable) for optional.

DC8V~36V wide voltage supply,aluminum housing,low power consumption.

Power off can work 8 seconds and 1~2 hour with UPS battery.

Product size:154(W)x39(H)x137(D) mm

We have strong production and R&D strength. QOHO products pass CE, RoHS certificate. And factory got ISO9001:2008 standard for Research and development, sales of 1080P AHD IPC Hybrid Mobile DVR, 8ch 720P HDD Mobile DVR, Waterproof SSD Mobile DVR, Body Police Camera, Personal Mini Mobile DVR.

Model

QH-MDVR8104SH


OS

Linux


User interface

Support E-set, remote controller, remotely   operation, SD card, etc to configure


Language

English, Chinese  (option customized)


Security

User password, Administrator password management


Audio

Audio input/output

4 channel audio input, independent handheld   talk MIC port ; 1 channel audio output;


Compression

G.726


Video & Live

Input/output

4 channel video input, 1 channel video CVBS output;   1.0Vp-p, 75Ω


OSD

Overlays letters,  like date /time,   vehicle ID, GPS, etc into the video


Compression

H.264 High Profile Compression


Dual stream

Record with HD video and remotely live view with   lower stream


Preview

1 channel / Quad live; support events   trigged to full screen and video switch


Speed(frame rate)

PAL: 100fps, each channel up   to 25fps;NTSC: 120fps, each channel up to 30fps


Resolution

720P /D1/CIF adjustable


Image quality

High, middle, and low option


Video rate

CIF: 384 kbps, 512 kbps, 768   kbps, 1024 kbps, 1536 kbps, 5 grades adjustable


D1: 512kbps/768kbps/1024kbps/1536kbps/2048kbps, 5   grades adjustable


720P:   1024kbps, 2048kbps, 3072kbps, 4096kbps, 5120kbps, 5   grades adjustable


Record

Storage

Support 1pc 2.5" SSD up to 2TB and 2pcs SD   card up to 256G


Format

CV1


Record strategy

Default  power-on record, also support time   schedule record, alarm record and events trigger record


Alarm

Input

4 channel level signal and 2 channel analog signal   input


Output

2 channel level signal output


Communication port

Serial Port

Support 2 channels RS232


Network

10M/100M network port


3G/4G/WIFI

Support 3G/4G and compatible with GPRS, EDGE, etc;   built-in WIFI, support hotspot


G-Sensor

Built-in G-Sensor


GPS(option)

Support GPS, option/BD/GLONASS


System upgrade

SD card; remotely upgrade; SSD upgrade; USB upgrade


Power supply & consumption

Power manage

time schedule on/off


Voltage input

DC:+8V ~ +36V


Voltage output
  Power failure

Camera +12V @ 2.5A  Other device: +5V @ 1A

UPS technology to ensure the record completely when   power failure suddenly;



Protection Consumption

Working:<10W; Standby: <0.5W


Work environment

Temperature

-25℃ ~ +60℃


Humidity

10%~95%


Size

154(W)x39(H)x137(D) mm


Weight

Net weight:1.6kg ;Gross weight:2.5kg



Product Tags: Mobile DVR , SSD MDVR manufacturer , HD Mobile Camera
