Forged Entire CNC Machined Pelton Runner

CNC & Forged Pelton Runner, Pelton Turbine Forging, Pelton Turbine Generator China & Supplier

Forging could considerably improve metal's organizational structure and mechanical property.

Forging offers uniformity of composition and structure. Forging results in metallurgical recrystalisation and grain refinement as a result of the thermal cycle and deformation process. This strengthens the resulting steel product particularly in terms of impact and shear strength.Forged steel is generally stronger and more reliable than castings part.

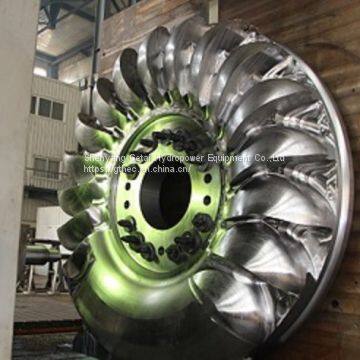

CNC & Forged Pelton Runner

Project Basic Information

Project Name: Minas-San Francisco HPP

Project Location: Ecuador

Pelton runner pitch diameter: 2460mm.

OD: 3179mm

Net Weight: 13300KG

Buckent No. 21

Output: 91.6MW

Pelton Turbine Forging Product Introduction

1. Brief introduction for Forged Integrally +100% CNC Machined Pelton Turbine Runner

Forging could considerably improve metal’s organizational structure and mechanical property.

Forging offers uniformity of composition and structure. Forging results in metallurgical recrystalisation and grain refinement as a result of the thermal cycle and deformation process. This strengthens the resulting steel product particularly in terms of impact and shear strength.

Forged steel is generally stronger and more reliable than castings of same material due to the fact that the grain flows of the steel are altered, conforming to the shape of the part.

Performance comparison table of forging parts and casting parts

 Performance test of forging part

Performance test of casting part

2.  Machining vedio for the Forged entire CNC machined Pelton runner.

3. ISO 9001 Quality Management system is carried out to ensure better management control

4. Advanced CFD, FEA technic is utilized in the designing process to ensure better technical solution.

5. CAE casting simulation is adopted for the produciton of casting parts, this advanced and reliable process plan could help effectively improve product quality.

6. All raw material strictly conform to international standard, key component such as runners, guide vane is Forged and entire CNC machined
