Home > Products > Car Auto Repair Tools/Equipment > 2018 Factory Price Vehicle Hydraulic Positioning Jack
2018 Factory Price Vehicle Hydraulic Positioning Jack
- 1000 Set / Sets per Month
- Qingdao, other for option
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- Full Finger Motorcycle Gloves Protective Gears Glove Recreational Sports Tactics gloves racing mountain gloves Hifly Industry
- 001Full Finger Motorcycle Gloves Protective Gears Glove Recreational Sports Tactics gloves racing mountain gloves Hifly Industry
- Manual Plastic Vehicle For Pumping Oil Suction Pipe Tank Car Oil Change Pump Tubing Pumping Device
- HF-TY-01 Bottle Stand With Faucet 5 Gallon Water Bottle Stand With Faucet Drinking Bottled Water Display Stand With Faucet Quality Choice
- HF-BS001(100) Bottle Stand With Faucet 5 Gallon Water Bottle Stand With Faucet Drinking Bottled Water Display Stand With Faucet
- HF-BS001 Bottle Stand With Faucet 5 Gallon Water Bottle Stand With Faucet Drinking Bottled Water Display Stand With Faucet
Product Details
Brand Name: | Hongyuan | Place of Origin: | China | Model Number: | HY-YC03A |
Type: | Mechanical Jack | Warranty: | 12 | Certification: | CE, ISO |
Min Height: | N/A | Max Height: | N/A | Capacity (Load): | 1-10T |
Product Description
Introduction of the Mechanical Car Mover
The jack hydraulic is ideal for the lifting and handling of the vehicle within the garage , workshop , bodywork , hangar , cas driveway to, or where the space to maneuver is reduced this positioner is recommended.
Easy and intuitive to use in moving the vehicle, it is sufficient to place the two rollers of the positioner alongside one of the driving wheels of the car and operate the hydraulic manual pedal control , the two rollers will approach as the oil is pumped inside. of the piston , with consequent lifting of the same.
Simply repeat the same operation for the opposite wheel with another positioner. Made of steel and powder-coated, they guarantee excellent resistance over time, with two positioners allowing 180 ° rotation of the car, while with 4 positioners they allow the car to rotate 360 °.
It is suitable for tires with a width of approximately 305 mm and the locking pins prevent unintentional lowering of the wheel
Application & Function:
Hydraulic jack is brand new tool designed for all sorts of operations.
You will use it in very short time consumption for many operations, such as change your car tires, lift a vehicle, etc.
It's no need to use other tools as hydraulic jack widely used in many areas, including vehicle workshop, car service shop, auto tool shop, car maintenance shop, and garage.
Hydraulic vehicle positioning jacks allow a single person to move cars, trucks and ATV's around the repair facility with ultimate flexibility.
There is no need to jack the vehicle up and place dollies under each tire, as each unit combines a Hydraulic jack and dolly together in one simple piece of equipment.
Perfect for moving vehicles under repair or restored automobiles in confined spaces, dollies allow cars to roll backwards, forwards and sideways easily.
Foot-operated hydraulic jack squeezes the support legs together, smoothly and safely lifting the tire off the ground in seconds.
The machine's function is for the individual drivers to stop the random stop, illegal parking, obstruction of traffic, occupation of other people's parking spaces and other acts, you can drag the car in order to clear the road to maintain normal traffic order, for standardized management, Dredge the vehicle can play a significant role. In addition to the underground parking lot of vehicle fire or other emergencies, can be timely to the vehicle from the scene or clear the lane. Wrecker durable, long life, easy operation, easy maintenance, easy to damage, one person can drag the vehicle in the ground. Manual hydraulic lifting device, flexible steering device, to ensure that the case of zero damage to the car, can be free to clean up the vehicle. Note: The wrecker can be used on the ground, can not be used in mud, dirt road.
Technical data of Mechanical Car Mover
Carriage capacity: max 680 kg
They allow excellent smoothness without ruining the floor.
External diameter of the rollers: 9.7 cm
Tire width up to 305 mm
Dimensions: 97 x 52 x 16 cm
Net Weight: 23 Kg
Gross weight: 25kg
24 month warranty

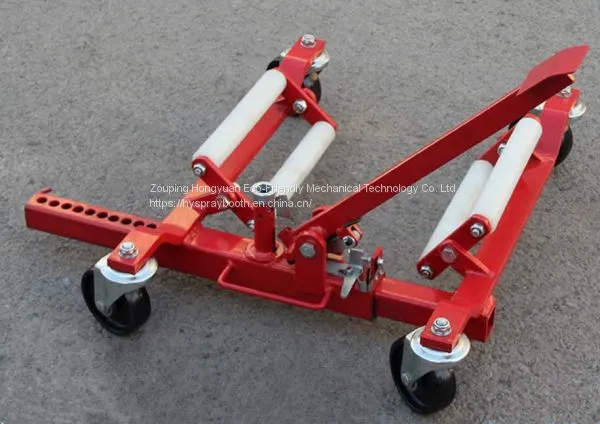

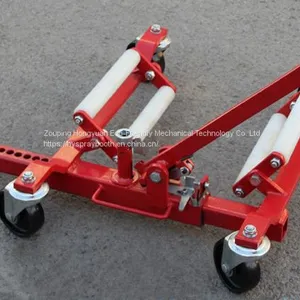

Picture of the Mechanical Car Mover
HY-YC03A Mechanical withtwo-layer roller
HY-YC02C lower cylinder
HY-YC02B upper cylinder
HY-YC02A built-in cylinder
HY-YC01 lever type
Package of the Mechanical Car Mover
Model | Type | Note | In stock |
HY-YC01 | Lever type | lever is free included for buy 4 pieces at once | yes |
HY-YC02A | Hydraulic type | built-in oil cylinder | yes |
HY-YC02B | Hydraulic type | upper oil cylinder | yes |
HY-YC02C | Hydraulic type | below oil cylinder | yes |
HY-YC03A | Mechanical type | two-layer roller design | yes |
HY-YC03B | Mechanical type | steel-made roller | yes |
HY-YC03C | Mechanical type | beam is higher than the roller | yes |
HY-YC04A | Puller type | car auto trolley with lever type universal wheel | yes |
HY-YC04B | Puller type | car auto trolley with lever type fixed wheel | yes |
HY-YC04C | Electric type | standard | yes |
HY-YC04D | Electric type | luxurious type | yes |
HY-YCP | 1. Loading frame for the trolley; | 2. Steel plate which is easier for going through the speed bump. | yes |
Send us enquiry about Mechanical Car Mover Please
