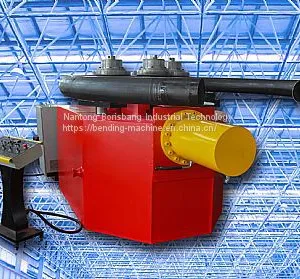

W24-75 Section Bending Machine

Description:

W24-75 Section Bending Machine is made up of bed, side roller, supporting roller, transmission, hydraulic system, electrical part and dies.W24-75 Section Bending Machineadopts the arc 3-roller Profile Bending Machine from Swedish ROUND Corporation. It has pre-bending function. Three working rollers are all main driving rollers driven by hydraulic motors, gear. The 2 bottom rollers rotate around a fixed center take-off and landing movement of arcs.

Feature:

1.The upper mold is the main drive and do the movement of elevation.

 Section Bending MachineW24-75 Section Bending Machine

The down mold do the circle movement through the meshing between the gear and reducer gear.

There’s a function of bending circle through adjust the height of the up mold.It’s impact and easy operate.

2.The machine consist of the working part which is welded in the whole basement and transmission part.

The working part made by a frame,three molds and other accessories.

The transmission part consist of motor,speed reducer and other accessories.

3.The transmission of down mold realized from the motor drive the speed reducer.

The meshing of the gear of the output shaft side of the reducer and the gear of the mold to rotate the down mold.

4.The metal pole in the hydraulic oil piston frame drive the up mold to do the movement of the elevation.

5.After finish the bending,rotate the metal pole to make the up mold lifting then unload the workpiece betweenthe up and down mold.

This machine can meet the requirements of 30L soft stainless pipe. Mini diameter of rolling>2400mm while the thickness of pipe should larger than 8mm.
