Help CenterHigh Quality Led Strip Production Machine Automatic SMT Pick and Place Machine
Related Products
-
High Speed Samsung Pick and Place Robot Machine for LED Driver With Low CostUS$ 75000 - 150000MOQ: 1 Set -
Hot Sale Full Automatic Chip Mouter SMT LED Pick and Place Machine for SMT LineUS$ 75000 - 150000MOQ: 1 Set
-
High Performance SMD Chip Mounter Pick and Place Equipment LED Chip MounterUS$ 75000 - 150000MOQ: 1 Set
-
Hot Selling Advanced SMT LED Samsung Pick and Place Machine 482Plus With Good QualityUS$ 75000 - 150000MOQ: 1 Set
-
Good Sale SMT Pick and Place Machine PCB Chip Mouter Samsung Chip Shooter Machine for SaleUS$ 75000 - 150000MOQ: 1 Set
1. Applicability to odd-shaped parts is reinforced.
2. Equipped with a head with one gantry and six spindles
3. Placement accuracy correction system(head offset,C/V offset etc.)
4. "Applicable to Max.740(L)x460(W)(Option)PCBs for long boards applied to LEDS and displays."
5. "It has improved actual producticity and placement quality by applying high speed and high precision electrically driven feeders."
6. Placement Rate:30,000CPH(Optimum)
7. Board Dimension(mm)):50(L)*40(W)~460(L)*400(W)
8. Option: 50(L)*40(W)~760(L)*460(W)
9. PCB Thickness:0.38mm~4.2mm
10. External Dimension(mm): 1650(L)*1680(D)*1530(H)
11. PCB Standard Transport Direction :Left-to-Right/Right-to-Left(Option)
| Model | SM471PLUS | SM481PLUS | SM482PLUS |
| Numbers of Spindles | 10 Spindles × 2 Gantry | 10 Spindles × 1 Gantry | 6 Spindles × 1 Gantry |
| Placement Speed | 78000CPH(Optimum) | 40000CPH(Optimum) | 30000CPH(Optimum) |
| Placement Accuracy | ±50μm@μ±3σ | ±30μm@μ±3σ | ±30μm@μ±3σ |
| Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H15mm) | 0402 ~ 55mm(H 15mm) |
| Applicable PCB | Max. 510(L) x 460(W)(Standard) | Max. 460(L) x400(W)(Standard) | Max. 460(L) x400(W)(Standard) |
| Max. 610(L) x 460(W)(Option) | Max. 1500(L) x 460(W)(Option) | Max. 1200(L) x 510(W)(Option) | |
| Dimension(mm) | 1650×1690×1458 | 1650×1680×1530 | 1650×1680×1458 |
Shenzhen ETA Technology Co., Ltd.Expert in making customized high quality SMT LED Pick and Place Machine, SMT LED Reflow Oven, SMT LED Stencil Printer, SMT Production Line,LED Assembly Line, SMT LED Machines with more than 23 years experience!
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.
Successful Experience:
Eta's customer in 35 countries around the world

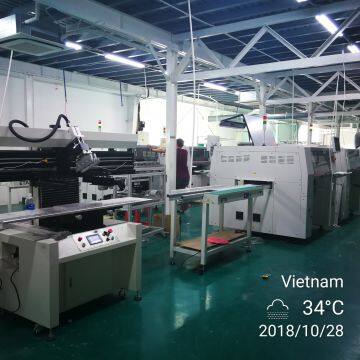

1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 500 experts and technician for customers.
3. Became the most reliable Chinese partner for you.
For SMT factory setup,we can do for you:
1. We provide fulL SMT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT factory setup
5. We can solve any question about SMT
