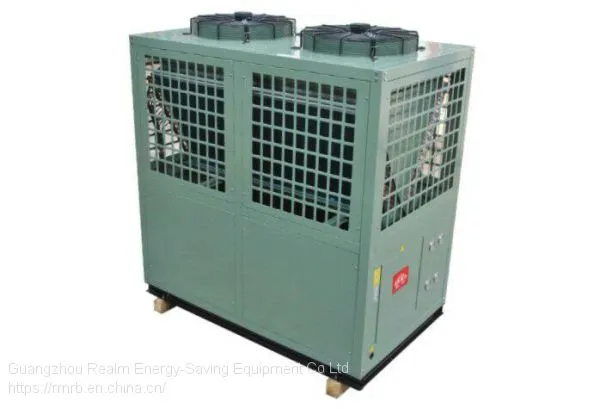

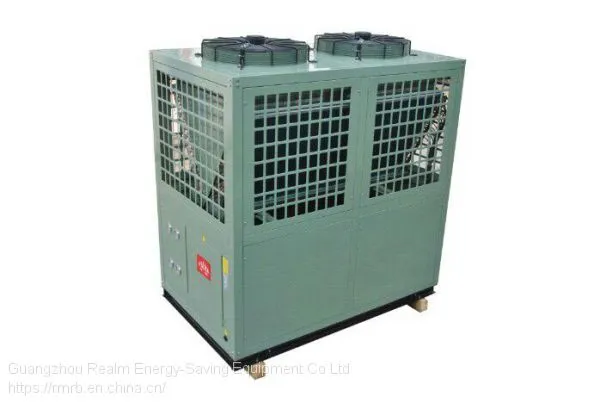

RMRB-20SR-2D heat pump systems chiller 75kw 380v industrial water chiller air cooled scroll type with warranty
Technical parameter of heat pump systems chiller 75kw 380v industrial water chiller air cooled scroll type with warranty
| Model | RMRB-03SR-D RMRB-04SR-D |
RMRB-05SR- D RMRB-06SR-D |
RMRB-08SR-2D RMRB-10SR-2D |
RMRB-12SR-2D RMRB-15SR-2D |
RMRB-20SR-2D RMRB-25SR-2D |
||
| Rated heating output KW | 11.2/14.0 | 18.8/22 | 30/38 | 44/50 | 75/86 | ||
| Input power KW | 2.8/3.6 | 4.7/5.5 | 7.5/9.5 | 11/12.8 | 19.1/21.5 | ||
| Voltage V | 380V-50HZ | ||||||
| Rated output water temperature | 55ºC | ||||||
| Max output water temperature | 60ºC | ||||||
| Rated output water quantity L | 240/300 | 400/475 | 645/817 | 950/1100 | 1600/1850 | ||
| Compressor | Form | Effective Flexible Scroll Type | |||||
| Quantity | 1 | 1 | 2 | 2 | 2 | ||
| Brand | Copeland | ||||||
| Heat Exchanger | Form | Effective spiral double pipe heat exchanger | |||||
| Pressure Drop | 50Kpa | ||||||
| Draught | Form | Internal Rotor Motor | External | ||||
| Power W | 150 | 230 | 150x2 | 330x2 | 500x2/550x2 | ||
| Weight KG | 100 | 180 | 250 | 310 | 630/780 | ||
| Control Mode | Microcomputer central processor(linear control) | ||||||
| Protection function | High pressure, Low pressure, Overload, High temperature, Freeze | ||||||
|
Notice: Cold water temperature 15ºC, environment temperature 20ºC Specifications are subject to change without prior notice. The appearance is only for reference, please see the real product for detailed information. | |||||||
Performance characteristic of heat pump systems chiller 75kw 380v industrial water chiller air cooled scroll type with warranty
· Apply world famous compressor, 4-way valve, expansion value, the performance is higher and more stable
· Microcomputer LCD controller, assures free attendance
· Intelligent de-frosting technology, completely remove frost, higher efficiency
· Silent work, no pollution to the environment
· Evaporator applies clear water membrane, high heat absorbing ability, high efficiency, anti-corrosion
· Conveninent installation, small occupation, saves cost
Heat pump systems chiller 75kw 380v industrial water chiller air cooled scroll type with warranty application
· Student dormitory, worker dormitory, hospital, hotel, entertainment center, big chamber constant temperature pool, laundry shop, restaurant and culture farm etc.
Comprehensive Comparison
| Hot water equipment | Safty | Evironment Friendly | Convenience | Maintenance cost | Service Life | Installation condition |
| Heat pump unit | Higher | Higher | Higher | Low | 10-15years | Less limit |
| Gas hot water boiler | Low | Low | Low | Higher | 6-8years | More limit |
| Fuel hot water boiler | Low | Low | Low | Higher | 6-8years | More limit |
| Solar+Electric auxiliary | Ordinary | Higher | Higher | Low | 5-6years | More limit |
