Help CenterCBN Grinding Wheel For Internal Grinding - Zoe@moresuperhard.com
Related Products
-
CBN Grinding Wheel For CrankshaftNegotiableMOQ: 2 Pieces -
CBN Grinding Wheel for Gear Hob Cutter - Zoe@moresuperhard.comNegotiableMOQ: 2 Pieces
-
CBN Grinding Disc for Spring Grinding - Zoe@moresuperhard.comNegotiableMOQ: 2 Pieces
-
Vitrified CBN Wheel for Face Grinding Steel Part - Zoe@moresuperhard.comNegotiableMOQ: 2 Pieces
-
CBN Grinding Wheels for Band Saw Blades - Zoe@moresuperhard.comNegotiableMOQ: 2 Pieces
Pls let me help if you can not find the model you want . Always online , customer-made service.
Whatsapp/Wechat : +86 18695876475
E-mail : zoe@moresuperhard.com
Facebook: /chen.zoe.1276
High workpiece precision. More porous existed in abrasive,easy to dress body and are good at large surface grinding. High porous rate shows a good chip performance, it is impossiple to burning workpiece. Good workpiece consistency, Long life time .
Applications Of CBN Grinding Wheel For Internal GrindingGrinding of Con-rods ends in the Auto Industry .
Grinding of Hydraulic and Pneumatic Cylinders .
CVJ ball-cage, inner and outer raceway .
Hydraulic tappet of automobile motor .
Grinding of Bores of Inner Rings .
Grinding of Gears Bores, Collects.
Pump stator of automobile,Grinding of Gun Barrels .
Roller, cylinder, flange cover of air-condition compressor.
Grinding of Inner and outer faces of Ball & Roller Bearings .
Specification Of CBN Grinding Wheel For Internal GrindingModels & Profile Diagram |
Details Size |
|
|
1A8 D * T * H (mm) |
|
D |
4mm - 45mm |
|
H |
1.5mm - 30mm |
|
T |
5mm - 50mm |
|
|
1A1W D * T * H * L * M (mm) |
|
D |
7.5mm - 50mm |
|
H |
4mm - 45mm |
|
T |
15mm - 50mm |
|
|
1A1 D * T * H * X (mm) |
|
D |
18mm - 50mm |
|
H |
10mm - 40mm |
|
T |
15mm - 50mm |
|

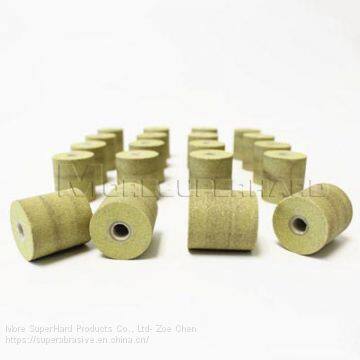

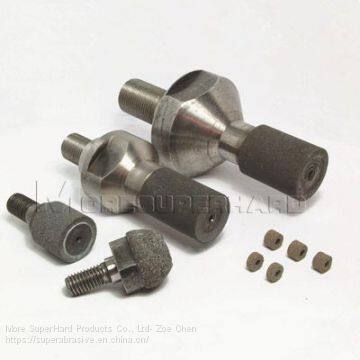

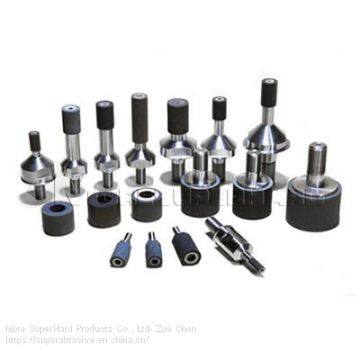

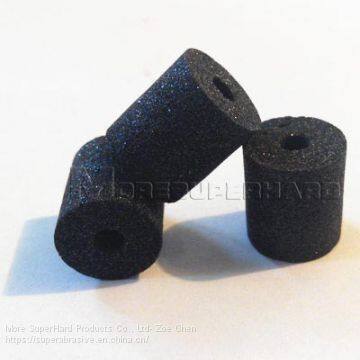

The two types of vit CBN grinding wheel for inner grinding: ID Wheel with Shank, ID Wheel without Shank
Hydraulic Industry. 1A1W Vit CBN Internal Grinding Wheel
We can also produce Vitrified Diamond Inner Wheel, Resin Diamond Internal Wheel and Metal Diamond Internal Wheel (1A1, 1A8, 1A1W, 1B1)
PCD Bearing Parts Grinding Of Vitrified Diamond Internal Grinding Wheel
