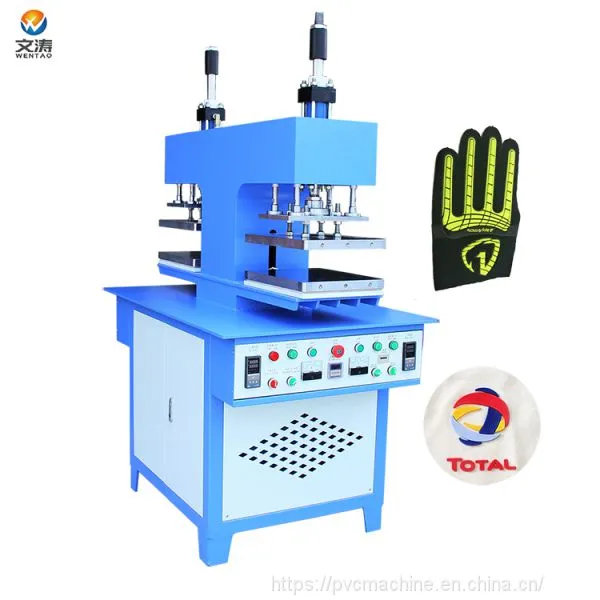

WenTao T-Shirt Printing Machine Garment Heat Embossing Machine
Features of Garment Heat Embossing Machine
1. Heating plate heating up and down, adjustable temperature up to 400 °C.
2. The size of the heating plate is 300*400mm, and the size of the heating plate is customized.
3. Built-in counting function, automatic counting of the number of moldings during production.
4. Two working positions, which can be controlled independently or simultaneously.
5. Double oil circuit, single motor and single oil pump control, low energy consumption.
6. Hydraulic pressure, stable and safe performance, strong product adhesion.
Garment Heat Embossing Machine, Adjuster of distance: the distance of both plates is can be controlled according to material and the thickness of the pattern.
| Machine Name | Garment Heat Embossing Machine |
| system | hydraulic |
| Heating plate | with heating up and bottom |
| Work station | double station |
| Stroke | 110mm |
| Main cylinder diameter | 80mm |
| Horse | 4.5hp |
| Heating plate size | 300*400mm |
| Other Available Size | Custom size by your special order |
| heat power | 7.2kw |
| Voltage | 220V, single phase |
| machine size(L*W*H) | 795*1195*1800MM |
| Weight | 600KG |
application:
1. T-shirt trademark embossing;
2. Denim embossing;
4. Microfiber fabric/gloves silicone trademark/silicone thermal transfer;
5. Silicone bracelet embossing hot pressing;
5. Thermal transfer and bronzing of ready-to-wear/knit fabric/shoes
Detail of Garment Heat Embossing Machine
1. hydraulic double-headed;
2. can adjust the stroke according to the material and mold thickness;
3. can increase the temperature up and down, can be controlled independently;
4. automatic temperature control, keep the tolerance between preset temperature and actual temperature be ±1°C.
5. motor delay automatic stop, can protect the oil circuit system better, power saving.
Our Factory
Seaworthy wooden packaging
