Home > Industrial Equipment & Components > Bearing > Slewing Bearing > CSF14-3516 9*55*16.5mm Harmonic Drive Bearing ,china Harmonic Reducer Bearing Supplier
CSF14-3516 9*55*16.5mm Harmonic Drive Bearing ,china Harmonic Reducer Bearing Supplier
US$ 100 - 1000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BCM
Model Number:
CSF14-3516
Outside Diameter:
10, 100
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Shanghai
Delivery Detail:
7 days
Related Products
-
CSF17-4216 10*62*16.5mm Harmonic Drive Bearing ,china Harmonic Reducer Bearing SupplierUS$ 100 - 1000MOQ: 1 Piece -
CSF20-5016 14*70*16.5mm Harmonic Drive Bearing ,csf Harmonic Drive Special for RobotUS$ 100 - 1000MOQ: 1 Piece
-
CSF25-6218 20*85*18.5mm Harmonic Drive Bearing ,csf Harmonic Drive Special for RobotUS$ 100 - 1000MOQ: 1 Piece
-
CSF32-8022 26*112*18.5mm Customized Csf Harmonic Drive Special for RobotUS$ 100 - 1000MOQ: 1 Piece
-
CSF40-9524 24*126*24mm Customized Csf Harmonic Drive Special for RobotUS$ 100 - 1000MOQ: 1 Piece
Brand Name
BCM
Model Number
CSF14-3516
Outside Diameter
10, 100
Bore Size
10, 300
CSF14-3516

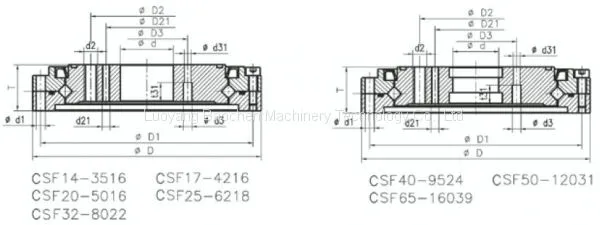

| Designation | Dimensions (hli) | Basic Load ratings(KN) | Weight | ||||||||||||||
| d | D | T | D1 | D2 | D21 | D3 | n1-d1 | n2-d2 | n21-d21 | n3-d3 | d31 | t31 | rsmin | Cr | Cor | kg | |
| CSF14-3516 | 9 | 55 | 16.5 | 49 | 23 | 14.5 | 15.5 | 8-φ3.5 | 6-M4 | 6-M3 | 2-φ3 | --- | --- | 0.3 x 45 ° | 4.6 | 5.1 | 0.25 |
