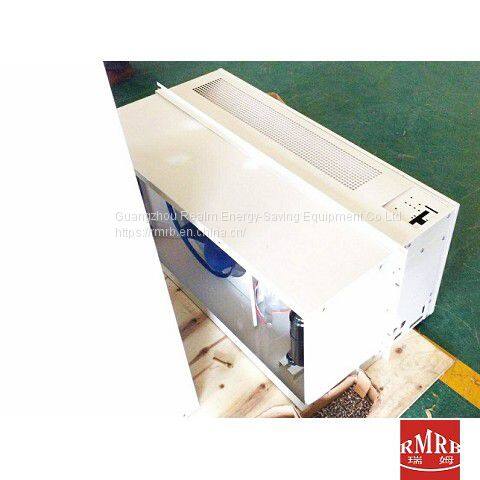

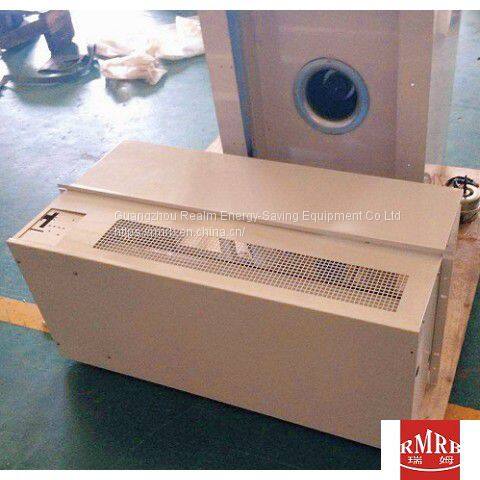

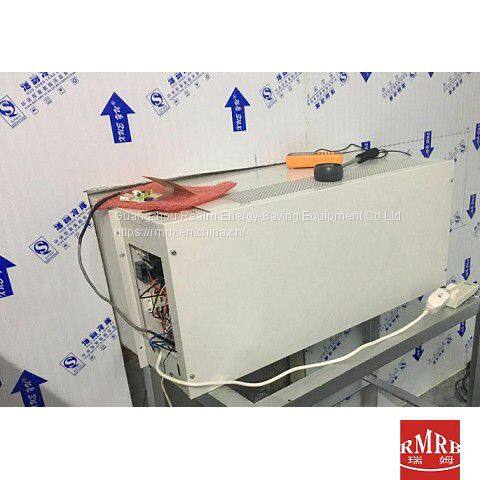

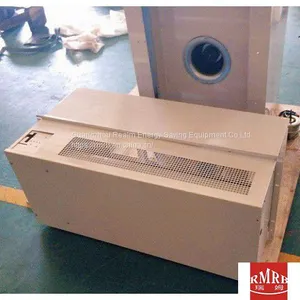

DC inverter factory low price window air conditioning wall mounted air conditioner high cop
Technical parameter of window air conditioner
| Cooling | Capacity | Btu/h | 12000btu |
| Input | Watt | 1250 | |
| Rated current | Amps | 5.4 | |
| EER | Btu/w.h | 9.6 | |
| Heating | Capacity | Btu/h | 9000btu |
| Input | Watts | 1095 | |
| Rated current | Amps | 4.89 | |
| COP | Btu/w.h | 8.2 | |
| Electric Heating | Btu/Hr | / | |
| Dehumidification | LB/HR | 1.92 | |
| Moisture Removal | L.ph | / | |
| Max. input consumption | Watts | 2562 | |
| Max. current | Amps | 11.2 | |
| Starting current | Amps | 28.5 | |
| Plug type | / | ||
| Power cord | Amps | With leakage protection plug | |
| Thermostat type | / | Wire control board | |
| Connection wiring | / | ||
| Compressor | Model | 2P14S236A1N | |
| Type | Power-driven and Total enclosed type | ||
| Brand | RMRB | ||
| Capacity | Btu/h | 10800 | |
| Input | Watts | 1050 | |
| Rated current (RLA) | Amps | 4.6 | |
| Locked rotor Amp (LRA) | Amps | 28 | |
| Thermal protector | B185-135-141C 1K14920120 |
||
| Thermal protector speci | Celsius | 125 | |
| Capacitor | uF | 35uF/450V~ | |
| Main coil resistance(operation) | Ohm | 2.84Ω | |
| Minor coil resistance(switch on) | Ohm | 2.43Ω | |
| Refrigerant oil | ml | 350 | |
| Indoor fan motor | Model | YDK-16B-4C 1 | |
| Brand | RMRB | ||
| Input | Watts | 45 | |
| Main coil resistance | Ohm | / | |
| Minor coil resistance | Ohm | / | |
| Capacitor | uF | 2 | |
| Speed | RPM | 1550 | |
| Indoor coil(Evaporator) | Number of rows | / | 2 |
| Tube pitch * row pitch | mm | 12*21 | |
| Fin spacing | mm | 1.7 | |
| Fin type (code) | Corrugated fin or window type fin | ||
| Tube outside dia.and type | mm | ∮7 Internal screw thread copper tube | |
| Coil height * width | mm | 231*659* | |
| Number of circuits | 10 per row | ||
| Fuse current | Amps | T8A 250V | |
| Indoor air flow (Hi/Mi/Lo) | C.M.ph | ≥650 | |
| Indoor noise level (Hi/Mi/Lo) | dB(A) | 45～60dB | |
| Whole window air conditioner | Dimension(W * H * D) | mm | 915*390*475 |
| Packing (W * H * D) | mm | 1000*520*555 | |
| Net/Gross weight | Kg | Net weight：50kg, Gross weight：66kg | |
| Outdoor fan motor | Model | YDK-55-4C | |
| Brand | RMRB | ||
| Input | Watts | 55 | |
| Main coil resistance | Ohm | / | |
| Minor coil resistance | Ohm | / | |
| Capacitor | uF | 3 | |
| Speed | RPM | 1600 | |
| Outdoor condenser | Number of rows | 3 rows | |
| Tube pitch * row pitch | mm | 12*21 | |
| Fin spacing | mm | 1.7 | |
| Fin type (code) | / | Window type fin | |
| Tube outside dia.and type | mm | ∮7 Internal screw thread copper tube | |
| Height * width | mm | 378*496 | |
| Number of circuits | 17 per rows | ||
| Capillary (O.D * I.D * Length) | mm | φ2.4×φ1.4 | |
| Capillary flow | L.pm | ||
| Outdoor air flow | C.M.ph | 1000 | |
| Outdoor noise level | dB(A) | 45～60dB | |
| Refrigerant type R410A | g | 900 | |
| Drainage pipe diameter | mm | 15 | |
| Operation temp | Celsius | 16~31 | |
| Ambient temp | Celsius | -7~43 | |
| Qty' per 20' /40' / 40'HQ | set | ||

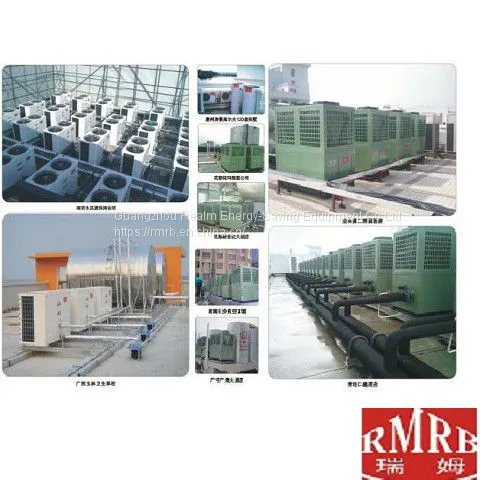

More other air source split unit-gas cycle heat pump for reference
Our Certifications

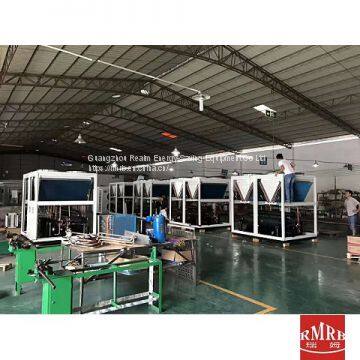

Our factory
Guangzhou RMRB Energy-Saving Equipment Co., Ltd (RMRB), started from year 2002, make production from 2004, registered its own brand RMRB HEAT PUMP from May 2005. As a manufacturer who proffessional produce heat pump. Near Baiyun Airport. It located at No. 1-3, Building58 Back Seat, Zhuliao Avenue, Zhongluotan Town, Baiyun District, Guangzhou City, Guangdong Province, China.
RMRB major in producing all kinds of heat pump. Such as, hot water system heat pump (air to water heat pump, water to water heat pump), heat pump combined system provide Cooling / heating & hot water, Air-cooled modular heat pump cooling/heating unit, water-cooled modular heat pump cooling/heating unit, and geothermal Source heat pumps, for both household and industrial /business projects use.
RMRB RMRB Products serials including:
1). Swimming pool heat pump;
2). Air Source Heat Pump Combine Cooling, Heating and Hot water Units (CCHH Series);
3). Industrial / Business heat pump hot water system;
4). Air-cooled modular heat pump cooling/heating unit;
5). Water-cooled modular heat pump cooling/heating unit;
6). Water source heat pump combined system;
7). Geothermal source heat pumps;
8). Direct Air-source heat pump hot water units;
9). Domestic air source heat pump hot water system (both split style and all-in-one type).
The energy saving times requires us to select energy source products which can meet the development of the society better. RMRB heat pump, as the leading in the industry, provide the best selection due to advanced technology and market management.
RMRB heat pumps are manufactured strictly following USA ATSE quality control system and technique requirements, and Have passed ISO2008, ISO9001 certification, USA EMC member certification, Germany SGS authority, China CCC certification, CE, CB and other energy saving certificates. Guangzhou RMRB Energy-Saving Equipment Co., Ltd possesses top R&D team, advanced equipments and outstanding development environment, be capable of constantly promoting quality products. What is more important: After constant development, with profound knowledge to the marker, the company has summarized the practical and effective strategy with complete and systematic solutions and rich engineering experience.
The most important is, RMRB offer Dedicated Lifelong Service.
Contract Manufacturing:
OEM Service: Offered
Design Service: Offered
Buyer Label: Offered
RMRB Heat Pump
widely application to : Student dormitory, worker dormitory, guest house, village, settlements living area, hotel, hospital, entertainment center, super market, small and big chamber, constant temperature pool, spa center, house, villa, beauty salon, laundry shop, restaurant, culture farm, army department, and so on.
Our Target: Develop international famous brand on energy saving. Set up the worldwide RMRB heat pump chain stores and warranty service systems.
Our Service and Guarantee: The entire machine enjoys one or two years of warranty service, the defective parts enjoy replacement service within two year; Nomal service life of our products reaches 10 to 15 years or more; Free patrol inspection service once a year within China; Products are insured by PICC.
Dear Valued Customer, Thank you so much for your purchase, we hope that you are happy with the item and our service. If there be any problems with the heat pump units, please contact us freely, we will try our best to resolve it.
Welcome contact me---Xiao He
Company Heat Pump Website:
Email: rmrbseller@foxmail.com
WhatApp/Skype/Imo/Wechat: +(86)17727752841
