4LZ-1.2 Wheat Harvester Function
4LZ-1.2 rice/ wheat harvester is used to harvest rice and wheat.It is kind of multi-functional machine which accomplishes cutting,threshing,straw separating and grain bagging in one working process,thus it improve working efficiency and save much labor costs. It is very easy to operate.
Main Technical Parameter
| Feed width | 1.2m |
| Diesel Model and power | 12 changchai diesel engine;13.2hp |
| Size | 3200×1100×1300m |
| Weight | 690kg |
| Feed amount | 1.2kg/s |
| Fuel consumption | 10.5-13.5 kg/h m2 |
| Mini ground clearance | 260mm |
| Production | 0.16-0.35 ha/h |
| Total loss rate | ≤1.5% |
| Percentage of damage | ≤1.5% |
| Impurity rate | ≤2% |
4LZ-1.2 Rice / Wheat Harvester Overview
Different color can be customized

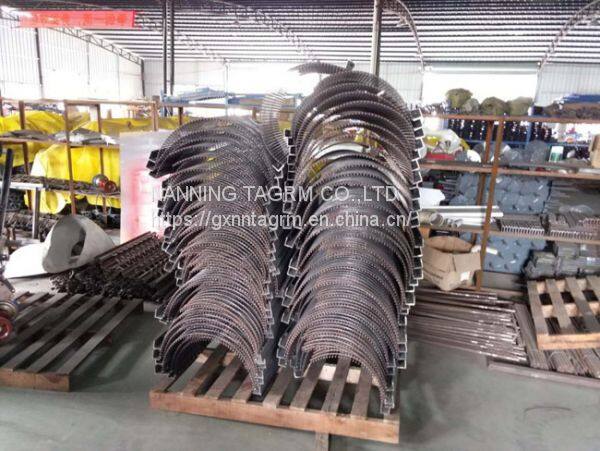

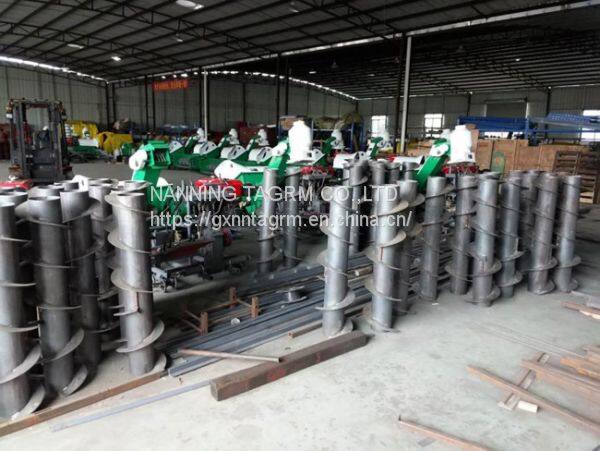

Workshop & Material Showing
4LZ-1.2 rice harvester is mate with Changchai China well-known diesel engine with 9.78kw,iron crawler wheels.Good material,high quality machine.
Overall schematic diagram of 4LZ-1.2 combine harvester
1. Pulling wheel; 2. Right divider; 3. Cutting table stirring dragon; 4. Left divider; 5. Cutting table;
6. Track assembly; 7. Gearbox; 8. Engine; 9. Grains conveying trough; 10. Threshing mechanism; 11. Cleaning mechanism; 12. Grain conveying trough; 13. Control mechanism; 14. Driver seat.

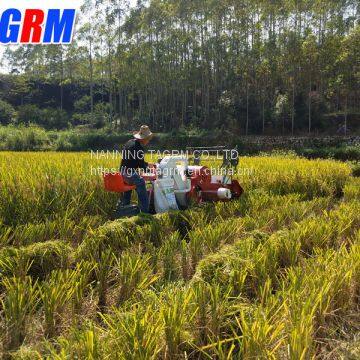

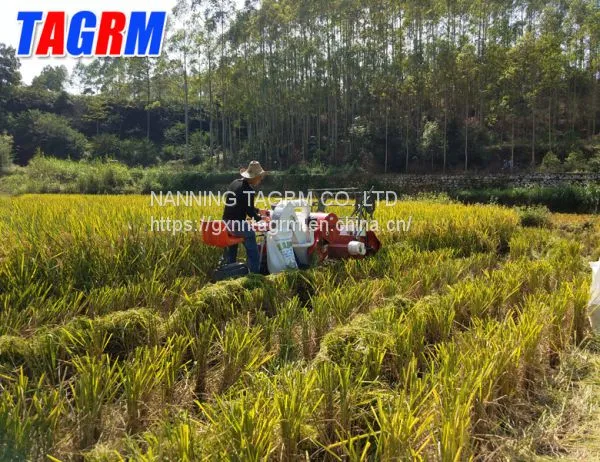

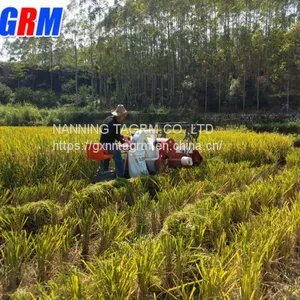

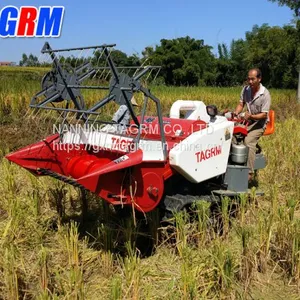

Mini harvester working performance
With good quality crawler,our machine can work in both dry and muddy field,and climb slope field.It can harvest very clean rice.
Company Profile:
Nanning Tagrm Co.,Ltd is a leading manufacturer and specialist of export agricultural
machinery with a long history, famous for sugarcane machines; compost machines, rice machines,
cassava machines etc.
Our Company adopts advanced management system and has strong technical power as well.
We unite three national research instituteswhich have over 30 years' experience in agricultural machinery industry.Our company has become the top supplier of agricultural machines.
Our success comes from excellent and precise manufacture, advanced technology, rich industry
experience, reliable quality and the best service.
