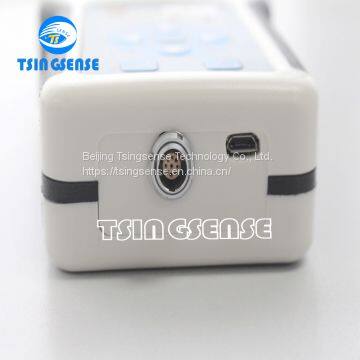

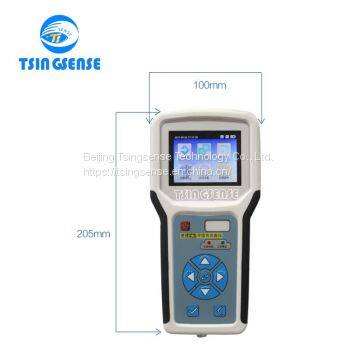

HDL-2000 handheld digital signal collector is a multi-interface data acquisition instrument developed by the company and integrated with various data acquisition, storage, analysis and customization functions.With humanized operation interface, simple and reliable operation.Built-in large-capacity memory, can store more than 60,000 data, and has power-down data storage. Support RS232, RS422 bus for data acquisition. Supports Modbus RTU protocol; supports dual channel SDI12 bus; supports dual-channel PWM count measurement. The open script development interface facilitates user system integration or secondary development.
Features
l Color LED display screen
l High quality waterproofing insert from Switzerland
l Good corrosion resistance
l A large capacity storage
l Support multitask mode (One machine serves several purposes)
l High reliability (suitable for various natural environments)
l Low power design
l Support GPS positioning
l Support dry batteries and USB power supplying
l Industrial-grade data collection system
l Support timing collecting and real-time collecting
l Support data collection, storage, analysis and export
l Suitable for all mainstream sensor configurations
l Have custom-made and secondary developed function
l Customer proprietary script (can write hundred kinds of sensor interfaces)
Technical parameters
Power supply |
5 dry batteries / USB |
Operating temperature |
-20℃~+75℃ |
Power consumption |
110mA |
Sleep power consumption |
|
External power supply |
12V 200mA,5V 500mA |
Data storage |
32MB |
External interface |
RS422(1 channel) RS232(1 channel) SDI12(2 channels) PWM measuring(2 channels) |
Packing list
Collector 1 set
Power adapter 1 set
Instruction 1 copy
Certificate/ Warranty 1 copy
Application
Company information
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don't offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends' visits.
