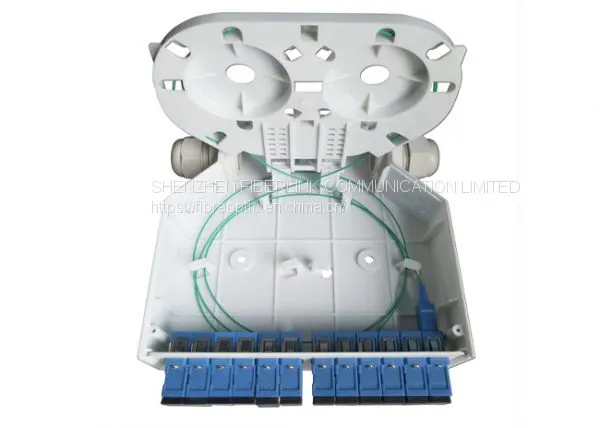

Fiberlink Din-rail Mount Fiber Patch Panels are designed for either to support termination or fusion splicing of the fibers. The cable entry is from the bottom of the enclosure which allows 1 cable to be secured using a cable gland. The patch panels can be loaded with a variety of adapters like ST, SC and LC.
Features
Standard size, light weight and reasonable structure
Material: PC+ABS, adapter plate: cold rolled steel
Flame Rating: UL94-V0
Cable tray can be overturn, easy to manage.
Optional adapter and adapter plate.
Din guide rail, easy to install on rack panel in cabinet.
Applications
Internal application
Data Center or telecommunications networks
For use in Multi-dwelling units or demarcation points within a network
Specifications
| Model | Adapter Type | Adapter Quantity | Splicing Capacity |
| FLK-DIN-RFP-SC12S | SC Simplex Adapter | 12 | 12 |
| FLK-DIN-RFP-SC6S | SC Simplex Adapter/LC Duplex Adapter | 6 | 6/12 |
| FLK-DIN-RFP-SC6D | SC Duplex Adapter | 6 | 12 |
| FLK-DIN-RFP-ST6 | ST Simplex Adapter | 6 | 6 |
Rack Mount Frame Dimension
| Name | Model | Size | Capacity |
| Rack frame | DRF-001 | 482.6*88*180mm | 12 Slots |
