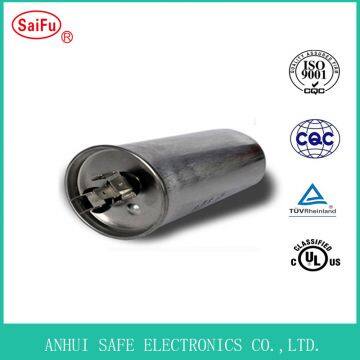

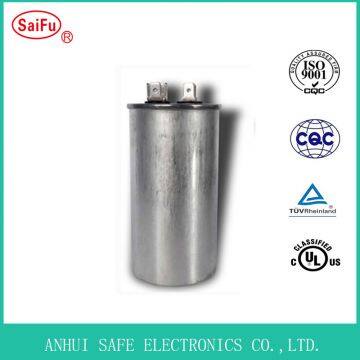

Help CenterCBB65 Air Conditioner Capacitor
Related Products
-
CBB65 Air Conditioner Fan CapacitorUS$ 0.5 - 3.33MOQ: 1 Piece -
CBB65 CompressorCapacitorUS$ 0.5 - 3.33MOQ: 1 Piece
-
2um 3um 4um 5um 6um Metallized Film for Capacitor UseUS$ 5 - 15MOQ: 1 Kilogram
-
Metallic Polyester PET Film 6 Micron Metallized Polyester FilmUS$ 5 - 15MOQ: 1 Kilogram
-
MPP Film Aluminum Metallized Polypropylene FilmUS$ 5 - 15MOQ: 1 Kilogram
Features
·Widely applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
·Self-healing property.
·Good stability and reliability.
·Safer with Anti-explosion design.
·Round capacitor, can be provide oval capacitor.
·Single capacitor, can be provide double capacitor.

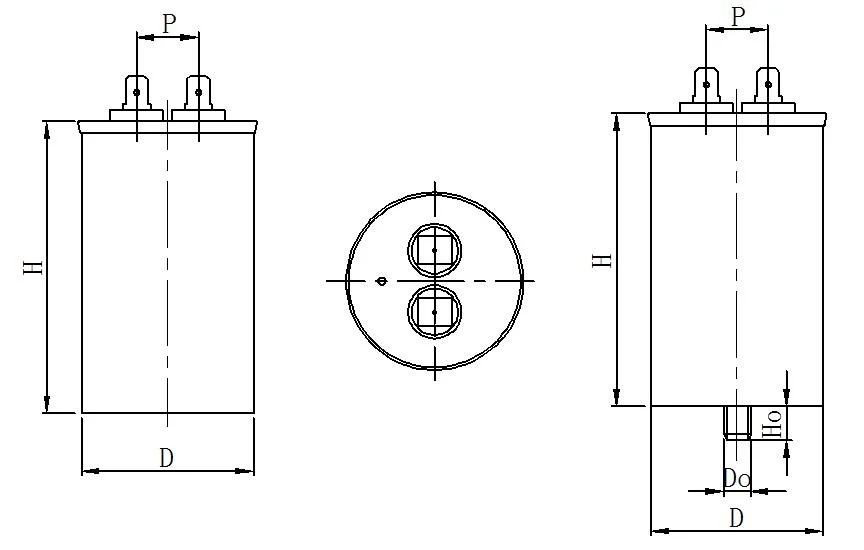

Outline Drawing
The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.The elements of CBB65 Capacitor are tightly wind by high-velocity winders and canned in aluminum cases.The second generation of machine anti-explosion design is selected ad blast -proof secure measure for our capacitors.And the reliability is more affirmatively enhanced.
Specifications
| Reference Standards | GB/T 3667.1 ( IEC60252-1) |
| Climatic Category | 40/70/21 or 40/85/21 |
| Class of operation | Class B(10000h) Class C(3000h) |
| Class of Safety Protection | S2 |
| Voltage Range | 250VAC,370VAC,440VAC,450VAC |
| Capacitance Range | 2uF~100uF |
| Capacitance Tolerance | ±5%,±10%,±15% |
| Dissipation Factor | 20*10-4(100Hz,20℃) |
| Test Voltage Terminal to Terminal UTT | 2Un for 2 Seconds |
| Test Voltage Terminal to Case UTC | (2Un+1000)VAC or 2000VAC- 50Hz for 60 Seconds |
| Insulation Resistance | ≥3000s(100Hz,20℃,1min) |

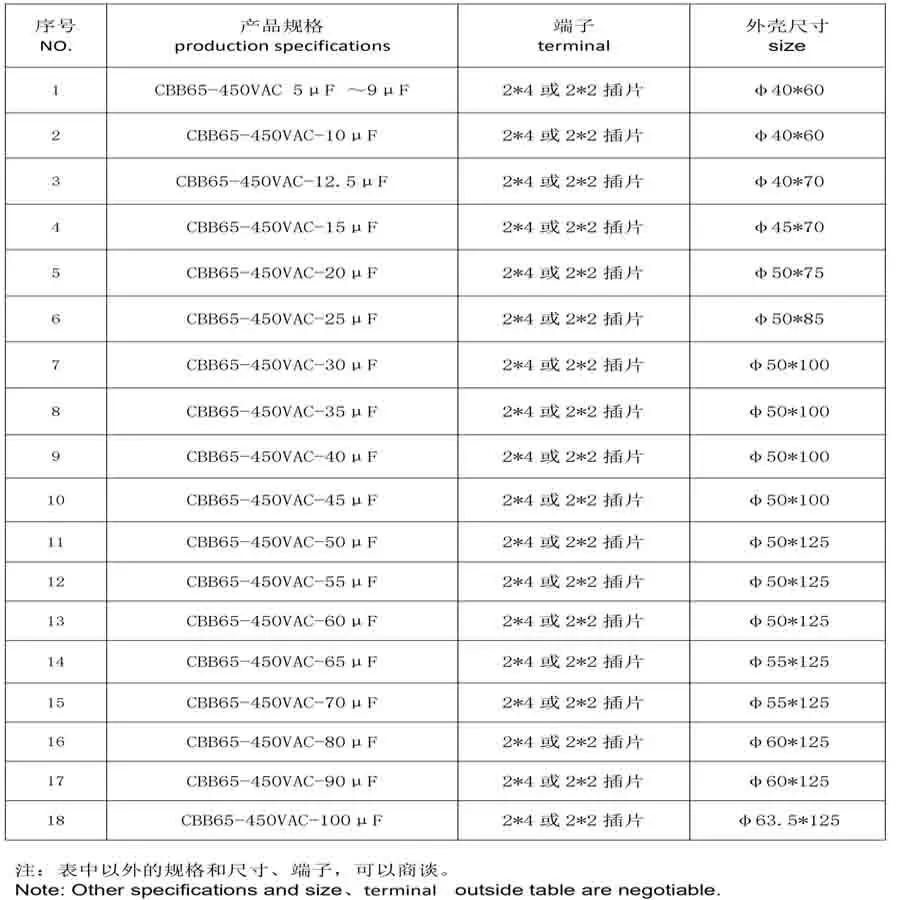

Dimensions

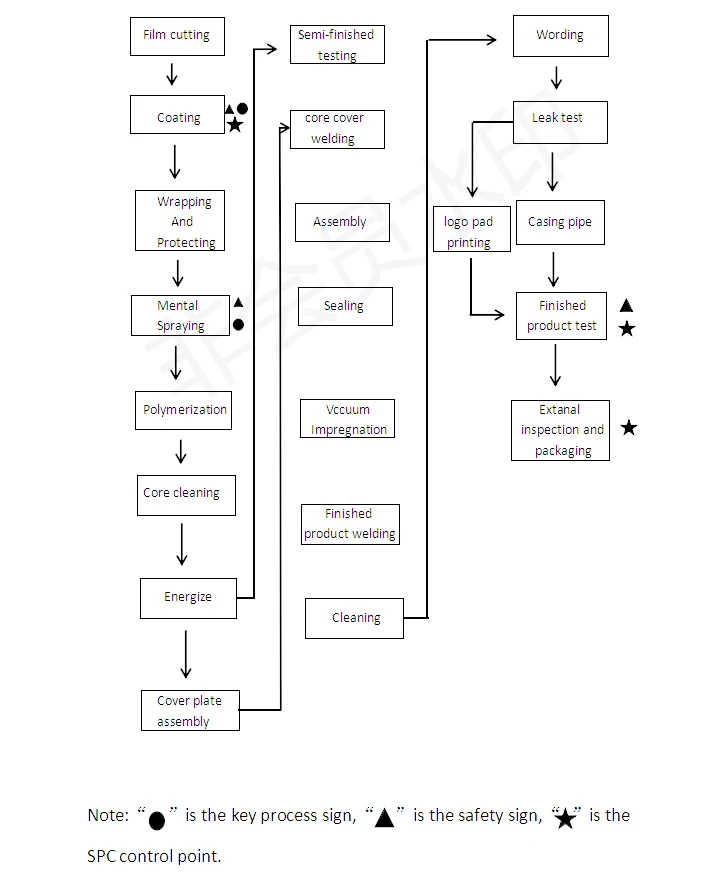

Process
Application
Capacitors have the characteristics of small size, light weight, small loss, excellent electrical performance, and good self-healing properties. It is suitable for starting and running AC motors with a frequency of 50Hz / 60Hz, such as air conditioners, compressors and motors.
·Used in AC power systems to assemble automatic compensation factor cabinets, local compensation devices, and UPS power supplies.
·For starting and running a single-phase motor with a frequency of 50Hz AC power supply, it can work continuously.
·Suitable for places with high requirements for coal mine underground, railway and aerospace.
Certificate
Our quality management system aaare certified by ISO9001 and our products have CQC,TUV,UL,VDE and other performance certicifications,compliance with EU RoHS directive, with SGS report.
Honor

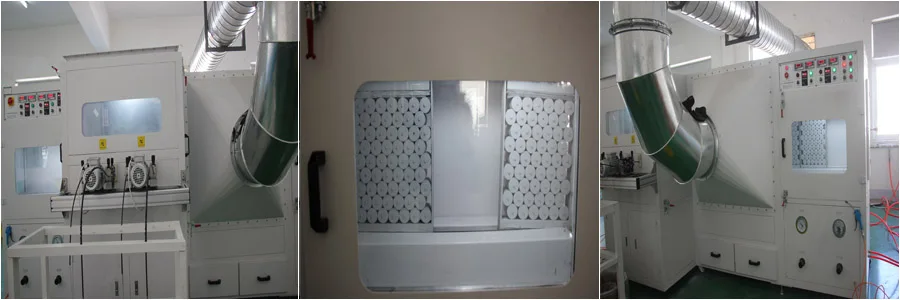

Equipment
Our company onw has 3 high-vacuum coating machines,14 high-speed slitting machines,7 winding machines,fou-gun meatal spraying machine,Capacitor vacuum impregnation system and three phase withstand voltage machine and other automatic equipment.

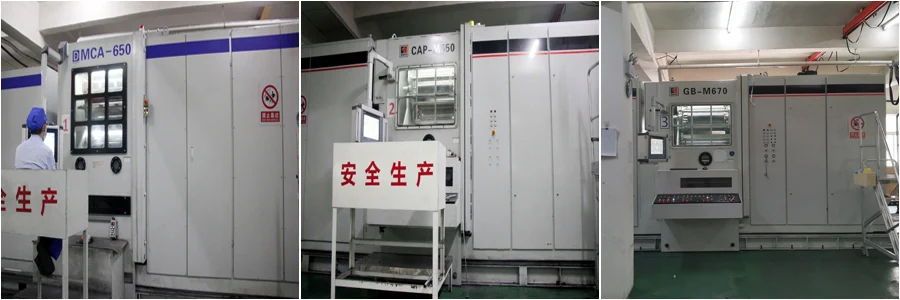

Vacuum Coating Machine
High Speed Slitting Machine

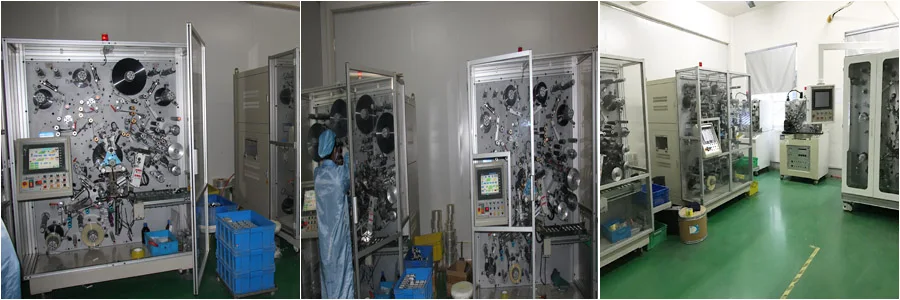

Winding Machine
Gun Gold Spray Machine

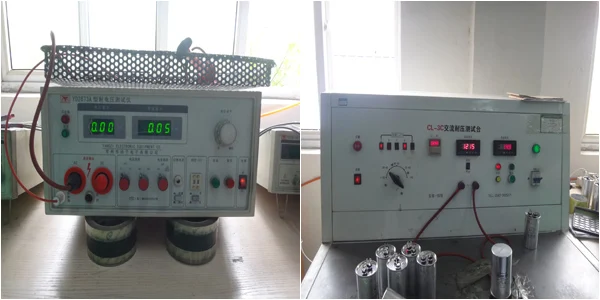

Voltage tset Equipment

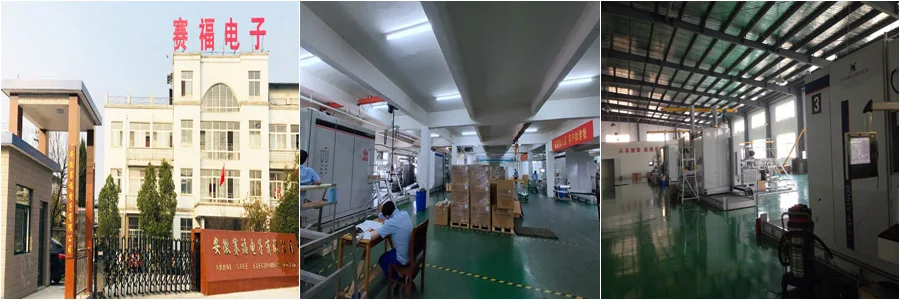

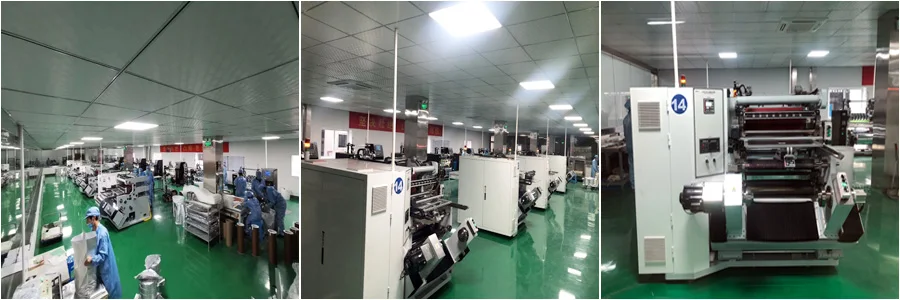

Factory

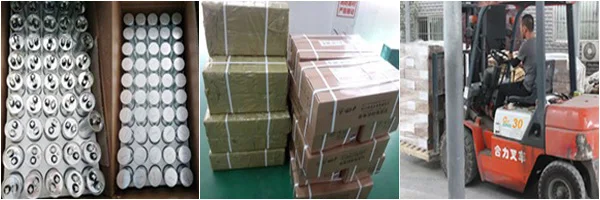

Package&Delivery
