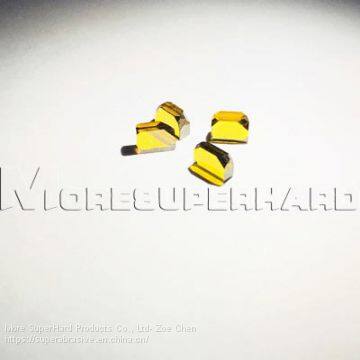

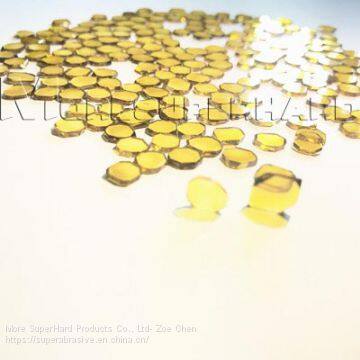

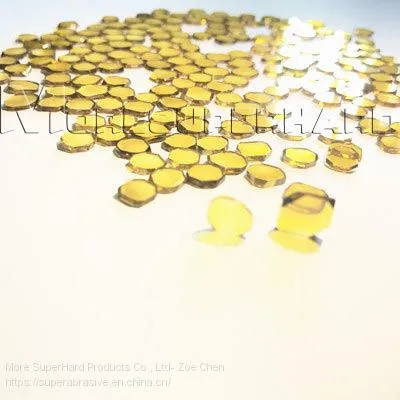

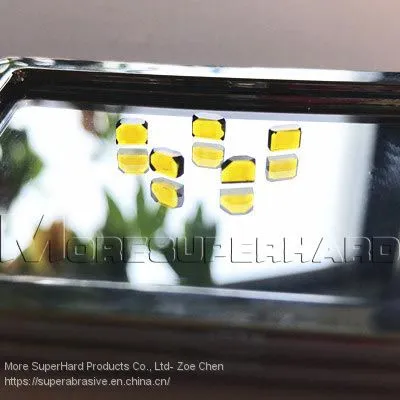

HPHT mono crystal diamond (MCD) is also called as synthetic single crystal diamons (SCD). It is synthetic diamonds produced by high pressure high -temperature synthesis under tightly controlled growth conditions .
Advantages of HPHT single crystal diamond plate* The ideal ultra-precision cutting tool material
* Large size,up to 7x 7 x 1 mm. (thickness 1.0-1.7mm)
* High toughness, Scratch proof and wear resistance
* High quality grade, pure color, better shape. High clarity under visible light and infrared light
* Great Thermal Stability,the unrivalled thermal conductivity ( > 2000 W cm − 2 K − 1 )
HPHT single crystal diamond plates are divided into Grade A, Grade B and Grade CGrade A:with precise laser cut edge ,no missing angle,Clean crystal ,without any inclusions under the microscope
Grade B:a lack of angle,can see the minimal inclusions under the microscope
Grade C:a lack of angle, can see the visible inclusions and scrap inside under the lights
|
L (mm) | W (mm) | T (mm) |
| 2.5 | 2.5 | 1.0 + | |
| 3.0 | 3.0 | 1.0 + | |
| 3.5 | 3.5 | 1.0 + | |
| 4.0 | 4.0 | 1.0 + | |
| 4.5 | 4.5 | 1.0 + | |
| 5.0 | 5.0 | 1.0 + | |
| 5.5 | 5.5 | 1.0 + | |
| 6.0 | 6.0 | 1.0 + |
*Other specifications can be produced according to customers’ requirement

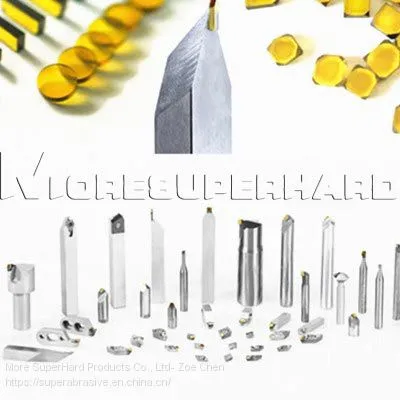

Application of HPHT single crystal diamond plateMore Super Hard mainly produce industrial-grade single crystal synthetic diamond plate. It is used for cutting tools for non-ferrous and non-metallic materials , specialty tools (cutter, turning tools, carving tools,angle tools)
| |
