Help CenterEurope Hot Selling 16 Cores Fiber Distribution Box(FLK-FDB-216D)
Related Products
-
16 Cores FTTH Fiber Distribution Box(FLK-FDB-216E)NegotiableMOQ: 10 Pieces -
24 Cores Indoor/Outdoor FTTH Fiber Distribution Box(FLK-FDB-224A)NegotiableMOQ: 5 Pieces
-
24 Core FTTx Fiber Distribution Box(FLK-FDB-324A)NegotiableMOQ: 10 Pieces
-
24 Cores FTTx Fiber Wall Mount /Pole Distribution Box (FLK-FDB-324B)NegotiableMOQ: 10 Pieces
-
New Design 24 Cores FTTx Fiber Distribution Box (FLK-FDB-324C)NegotiableMOQ: 5 Pieces

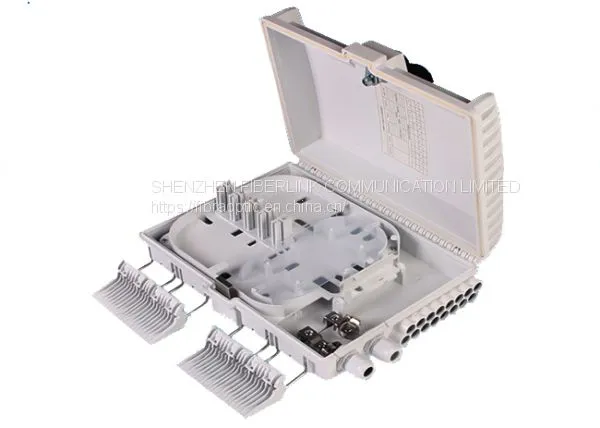

FLK-FDB-216D 16 Cores FTTH Fiber Distribution Box is designed for the FTTx project and provide mechanical protection for fiber management system that include the functions of patching, splicing and passive optic components integration indoor or outdoor environments. This fiber distribution box is typically used with 1x4, 2x4, 1x8, 2x8, 1x16 or 2x16 Micro Splitter for FTTx access networks.
Features
Protection Rating: IP55
Industry Standard User Interface, be made of high impact plastic
Can accommodate 1x4, 2x4, 1x8, 2x8, 1x16 or 2x16 Micro Splitters
Up to 16 FTTH drops
2xPG21 glands
Wall and pole mountable
Indoor or Outdoor application
Double lock system by plastic hasp lock and standard key lock
With the function of mechanical splice, fusion splice, light splitting, wiring distributions
Applications
Widely used in FTTH Access Networks
Telecommunication Networks
CATV Networks
Local Area Networks
Specifications
| Part No. | FLK-FDB-216D |
| Dimension | 295×220×85 mm |
| Entry ports | 2×PG21 glands of φ13.5mm |
| Drop cable ports | 16×drop cable |
| Splice capacity | 12/24 FO |
| Splitter Type | Micro Splitter 1x4, 2x4, 1x8, 2x8, 1x16 or 2x16 optional |
| SC Adapter | 16xSC Simplex or 16xLC Duplex |
| Mounting type | Wall-mount or pole-mount |
| Color of Distribution box | Grey & Black optional |
Performance
| Part No. | FLK-FDB-216D |
| Housing material | Plastic |
| Temperature range | -40 oC to +70 oC. |
| Life expectancy | 20years |
| Flame resistant | V0 |
| UV resistant | Outer body of box applied for UV protection |
| Seal material of the box | EPDM |
| Seal material of the ports | Rubber |
| Protection rating | IP55 |

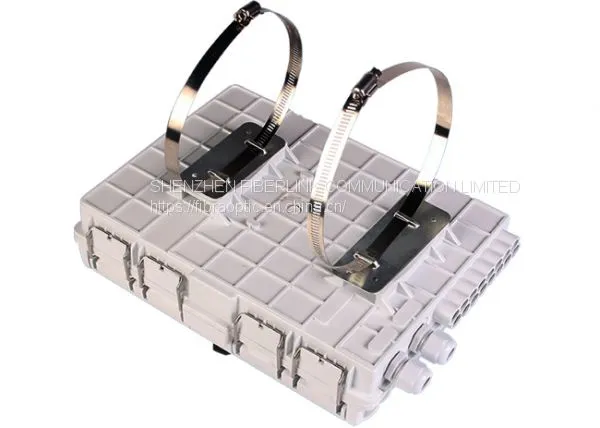

Wall-mounted and Pole-mounted
