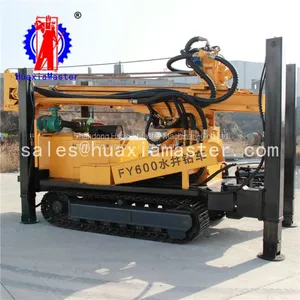

FY600 Crawler Pneumatic Water Well Rig
US$ 1000 - 10000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HUAXIA MASTER
Place of Origin:
China
Model Number:
FY600
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Huaxia Master Supply Geological Exploration Mining Machine RigUS$ 1000 - 10000MOQ: 1 Set -
XYD-200 Crawler Uses Automatic Telescopic Drilling RigUS$ 1000 - 10000MOQ: 1 Set
-
Multi-purpose Drilling RigUS$ 1000 - 10000MOQ: 1 Set
-
XYX-130 Core Drilling RigUS$ 1000 - 10000MOQ: 1 Set
-
XYX-200 Hydraulic Water Well Drilling RigUS$ 1000 - 10000MOQ: 1 Set
Brand Name
HUAXIA MASTER
Place of Origin
China
Model Number
FY600
Type
Rotary Drilling Rig
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
6 months
Weight
12T
Dimension(L*W*H)
5400mm*2100mm*2850mm
Power Type
Diesel
Usage
Water Well
Condition
New
The applications of FY600 crawler pneumatic water well drilling rig
· civil engineering drilling
· geothermal drilling
· drilling with large diameter and deep drilling footage
· fast, flexible and efficient
The specifications of FY600 crawler pneumatic water well drilling rig
Model |
FY600 |
|
Gross weight |
T |
12 |
Dimension |
mm |
5400*2100*2850 |
Aperture |
mm |
140-350 |
Drilling depth |
m |
600 |
Feed stroke |
mm |
6600 |
Travel speed |
km/h |
2.5 |
Grade ability |
max. |
30° |
Rising height from ground |
mm |
250 |
Wind pressure |
mpa |
1.7-3.5 |
Air consumption |
m³/min |
17-35 |
Engine power |
kw |
115 |
Rotation speed |
rpm |
45-110 |
Rotation torque |
n.m |
8500-10050 |
