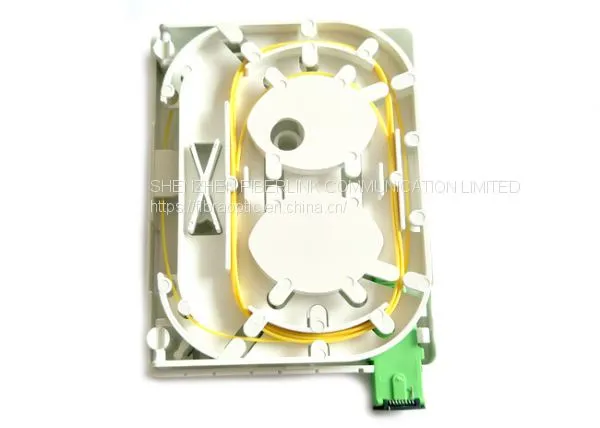

FLK-FTB-302B Fiber Access Terminal Box is an indoor terminal applied in the FTTX network to connect the drop cable and optical devices through fiber port. FLK-FTB-302B Access terminal box covers the capacity of 1 core, 2 cores or 4 cores and supports splicing, Mechanical connection and FMC, wall mounted installation.
Features
Water-proof design with IP-45 Protection level.
Integrated with cable termination and management rods.
Manage fibers in a reasonable fiber radius(30mm) condition.
High quality industrial anti-aging ABS plastic material.
Suitable for the wall mounted installation.
Suitable for FTTH indoor application.
2 port cable entrance for drop cable or patch cable.
Fiber adapter can be installed in the rosette for patching.
UL94-V0 fire-retardant material can be customized as option.
Applications
Widely used in FTTH Access Networks
Telecommunication Networks
CATV Networks
Local Area Networks
Dimension
Specifications
| Parameter | Value |
| Part No. | FLK-FTB-302B |
| Size (H×W×D) | 105×82×22mm |
| Material | Plastic |
| Color | (RAL9001) |
| Storage of fibers | G657A1 or G657A2 |
| Splice Capacity | 2 cores |
| Splice method | Fusion splice |
| Adapter ports | 2*SC |
| Installation Models | Wall Mounted |
