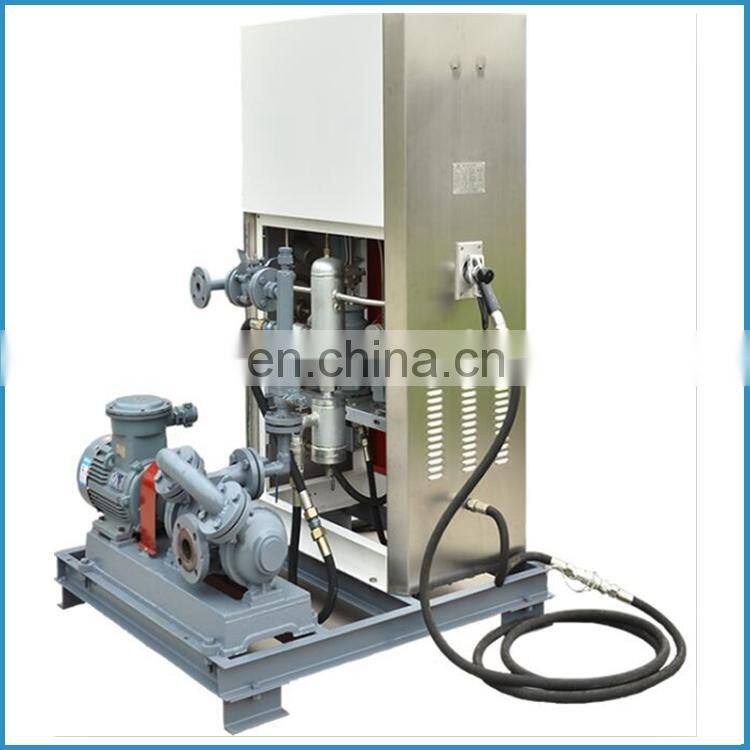

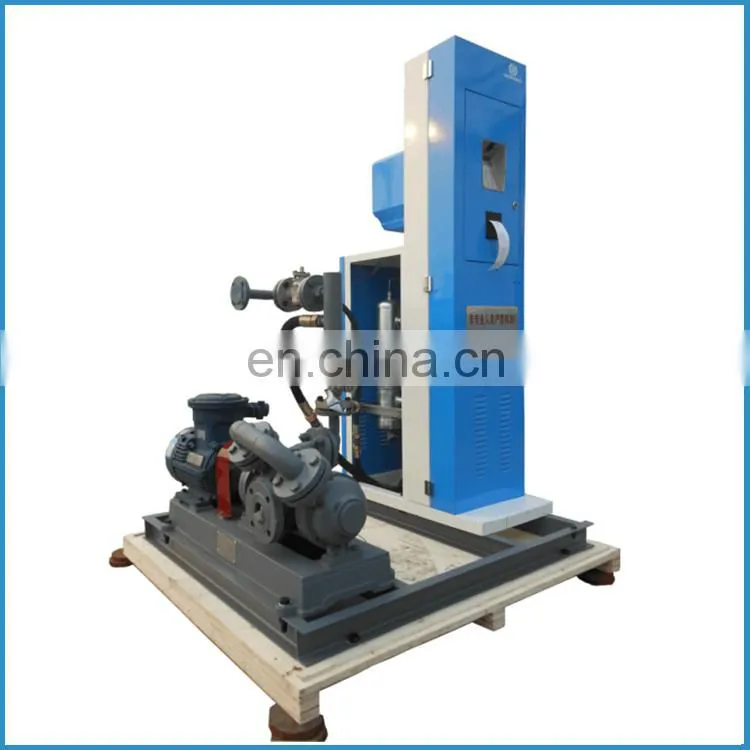

Lpg Filling Machine With Pump,cooking Gas Filling Machine, Lpg Gas Filling Machine

Lpg Filling Machine With Pump,cooking Gas Filling Machine, Lpg Gas Filling Machine photo-1
US$ 8,800 - 8,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
talents lpg filling machine with pump
Place of Origin:
Tianjin, China
Model Number:
09-TL-LGFM
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang tianjin
Delivery Detail:
Delivery time depends on order quantity.
Brand Name talents lpg filling machine with pump
Place of Origin Tianjin, China
Model Number 09-TL-LGFM
Certification GB
After-sales Service Provided No overseas service provided
Weight 200kg
Dimension(L*W*H) 916*160*1650mm
Voltage 220V
Power 50Hz
Application Chemical, Commodity, Machinery & Hardware
Condition New
Automatic Grade Automatic
Driven Type Electric
Packaging Material Metal, Paper, Plastic
Packaging Type Bottles, Cans, Stand-up Pouch

lpg filling machine with pump,cooking gas filling machine, lpg gas filling machine





product feature





feature of lpg filling machine with pump,cooking gas filling machine, lpg gas filling machine:



1)American Parker solenoid valves, American Rego safety valves, Explosion-Proof juntion box,

Water-proof keyboards can make sure the machine work at bad condition. In order to prevent the leakage,

all joints are welded seamlessly. Good quality can save your maintenance cost.



2)Equipped the sum, gas amount preseting function, you could preset the L, Gallon, USD first,

the dispenser can stop filling when it reach the target figure. Good design can save your manual work cost.



3)With the power-off protection function, the dispenser can save the gas filling data in real time,

when emergency power-off, the mainboards battery can supply the display data for 30 minutes.

 And when power on, the mainboards can unload all data automatially.

Detailed service can reduce your loss.





Product Description



product description of lpg filling machine with pump,cooking gas filling machine, lpg gas filling machine:



lpg turbine gas pum:



differential pressure: max 0.8Mpa

flow: max 8m3/h

design working pressure: 2.5Mpa

ambient temperature:-40-55℃

roatating speed: 2880r/min



lpg gas dispenser:

LPG dispenser Technical Parameter:

1. Flow: (5-50)Litres/min

2.Measurement Accuracy: 0.5%

3.MWP (Max.Working Pressure) : 2.5Mpa

4. Ambient Temperature: (-40~50)°C

5. Voltage: 220V, 50Hz, Single Phase

6.Power: ≤300W

7.Single Measurement Range: 0-9999.99 gas amount or sum

8. Unit Price Range: 00.10-99.99

9.Stored measurement range: 0-999999.99 gas amount or sum

10.Connection type:hose coupling

11.Breaking-away valve: break away by 400-600N

12. Filter Screen: 300 meshes

13.Solenoid valve:AC220V, anti-explosion



lpg filling machine with pump,cooking gas filling machine, lpg gas filling machinelpg filling machine with pump,cooking gas filling machine, lpg gas filling machine
