Customized Different Telescopic Lighting Mast and Antenna Mast

FOB Price

US$ 400 - 4,000 / Unit

1 Unit(Min. Order)

Port Shenzhen China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	talents,telescopic mast		Place of Origin	Liaoning, China
Model Number	Tal-mpe-ODM

Product Description

Product Description----Customized Different telescopic lighting mast and antenna mast

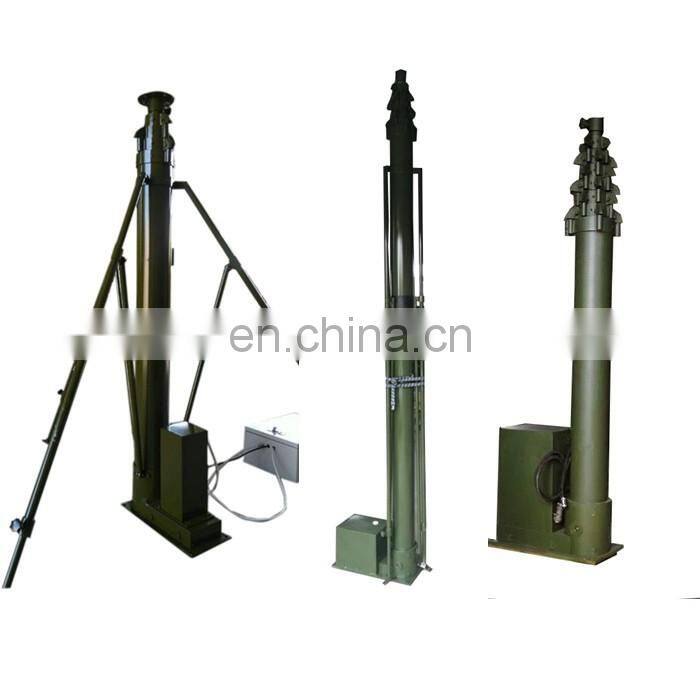

Three lift ways for choose:

manual model---lift control by handle lifting bar, with hand winch
motorized model --- lift control by motor, with steel wire and screw inside the mast.
pneumaitc model--- lift control by air compressor or foot pump or hand pump, wiht pneumatic accessories inside the mast

Manual telescopic mast

Motorized telescopic mast

Pneumatic telescopic mast

3.Mast specification: (cound be customized)

extended height: 1.5m to 30m retracted height: 0.7m to 4.5m Head-load: 5kg to 300kg

4.Accessories: based on the mast lift model and if need tripod.

Manual model

1. pulling cord box----------------3pcs
2. Ground anchor-----------------3pcs
3.stainless steel stake----------6pcs
mounted flange-----------1pc
5.bottom base---------------------1pc
4.tripod-------------------------------1pc

Motorized model

1. Motor------------------------------1pc
2.Control box----------------------1pc
3.Handle lifting bar---------------1pc
4.Remote controller------------2pcs
5.Pulling cord box---------------4pcs
6.Ground anchor----------------4pcs

Pneumatic model

1. Air hose----------------------1pc
2.Control valve----------------1pc
3.Top flange--------------------1pc
4.Bottom base-----------------1pc
5.Air compressor-------------1pc
6.Tripod-------------------------1pc

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* Customized.

After-Sales Service

* Give advice for mounting the mast.

* 1 year warranty after sale.

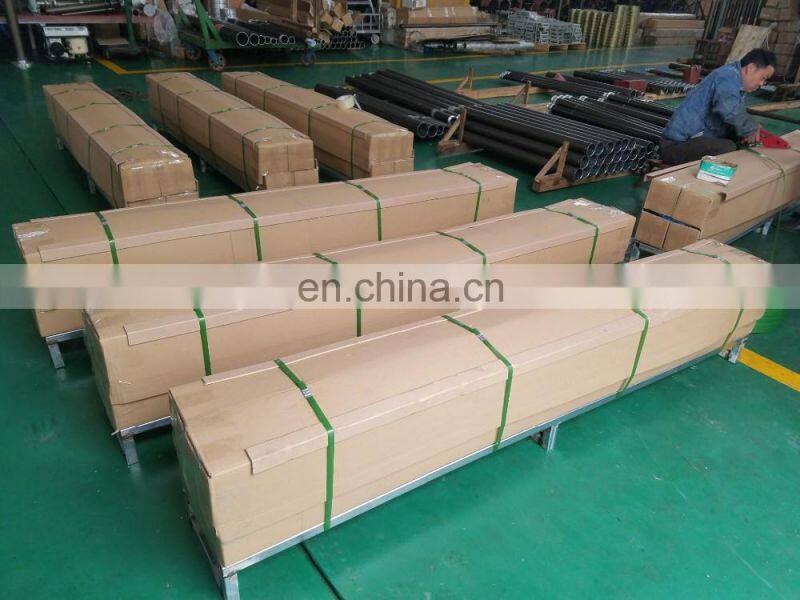

Packing & Delivery

Packaging
Size	based on the mast specification
Weight	less than 50kg mast
Packaging Details	The normal package is carton for the extended heihgt less than 6m. also can be plywwod case as customers special request. The remaining interior space will be filled with foam or EPE.

Packaging
Size	based on the mast specification
Weight	more than 50kg mast
Packaging Details	The normal package is plywood case for the mast weight more than 50kg to protect the mast better. The remaining interior space will be filled with foam or EPE.

pneumatic mast

95.8% Response Rate

manual telescopic mast

95.0% Response Rate

motorized telesopic mast

92.5% Response Rate

Specification table

Specification Manual telescopic mast
Model No.	Extended height (m)	No. Of section	Retracted height (m)	Outer tube range (mm)	Max head-load (kg)
TAL-M3-1-20-A	3	3	1	70-90	20
TAL-M6-1.7-10-A	6	5	1.7	50-90	10
TAL-M8-1.5-20-A	8	8	1.5	40-130	20
TAL-M10-1.95-10-A	10	7	1.95	30-90	10
TAL-M20-2.95-10-A	20	9	2.95	30-130	10
TAL-M30-3.85-10-A	30	10	3.85	30-150	10

Specification Motorized telescopic mast
Model No.	Extended Height (m)	Retracted height (m)	Outer tube Diameter range (mm)	Section NO.	Max Head-load (KG)
TAL-E4-1.55-10-A	4	1.55	40~80	4	10
TAL-E6-1.70-10-A	6	1.7	40~90	6	10
TAL-E10-2.45-30-A	10	2.45	40~105	7	30
TAL-E12-2.3-35-A	12	2.3	40~130	7	35
TAL-E15-2.8-30-A	15	2.8	50~130	7	30
TAL-E25-3.4-60-A	25	3.4	60~210	10	60

Specification Pneumatic telescopic mast
MODEL No.	Extended Height(m)	Retracted Height(m)	Bottom OD (mm)	TOP OD (mm)	Section NO	Max Head-load(KG)
TAL-3.0-1.1-30-AT8	3	1.1	87	43	4	30
TAL-5.0-1.7-40-AT8	5	1.7	98	51	4	40
TAL-6.0-1.7-30-AT8	6	1.7	118	51	5	30
TAL-8.0-2.2-30-AT8	8	2.2	118	51	5	30
TAL-20.0-3.3-55-AT8	20	3.3	229	66	9	55

Our Service

OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery

Our Company

Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.

Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. 23 years of our specialized knowledge and experience of the telescopic mast technology allows us to effectively supply the solutions and designing for the OEM/ODM and after-sale services of the mast to meet our customer's needs, whilst ensuring that we are achieving maximum efficiency and output at the same time. We are serving our long-term customers from the five Continents and the four Oceans

Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers

an one for one timely information feedback, we have organized an expert team for quality control and inspection system,

we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer. We

think outside the box and are continually developing new products to meet customer requirements, what you are asking

for is our motive power of task, we wish one of our products will well-meet what you demand.
