12m Outdoor High Mast for Antenna Tower

FOB Price

US$ 1,868.88 - 2,038.5 / Unit

1 Unit(Min. Order)

Port China main port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents, 12m outdoor high mast		Place of Origin	Tianjin, China
Model Number	Tal-P12.0-2.6--10-AT8

Product Description

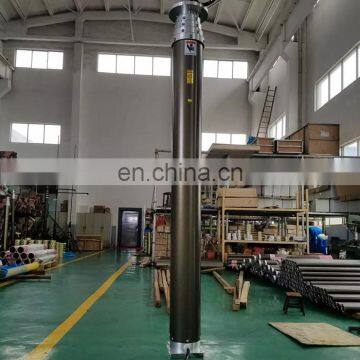

12m mobile antenna telescopic mast for TV antenna mounting

Specification

12m outdoor high mast for antenna tower

Article number:	TAL-P12.0-2.6-10-AT8
Max top payload:	10 kgs
Closed length:	2600mm
Extended length:	12000mm
Main poles' sections:	7sections
sec.1#(OD/ID/thickness):	36/30/3mm
sec.2#(OD/ID/thickness):	51/45/3mm
sec.3#(OD/ID/thickness):	66/60/3mm
sec.4#(OD/ID/thickness):	82/75/3.5mm
sec.5#(OD/ID/thickness):	98/90/4.0mm
sec.6#(OD/ID/thickness):	118/110/4.0mm
sec.7#(OD/ID/thickness):	140/130/5.0mm
Bottom base size (dia./thickness):	235mm/10mm
Top plate size (dia./thickness):	120mm/10mm
Working temperature:	-15--+50C
Air cpmpressor:	AC220,0.2MPa
Wind load:	65km/h
Pulling cord's OD:	2mm
Material for main pole:	aluminum alloy 6063B
Material for bottom base:	iron steel
Material for accessories:	iron steel
Material for air hose	PU tube
Material for pulling cord:	Nylon
Material for other asscessaires	iron steel

Packing list:

Mian pole in 5 sections:	1 set
Air pump(AC220v):	1 set
Air hose:	3 meters
Bottom base:	1 piece
top plate:	1 piece
Pulling cord:	3 sets
Ground anchor:	3 pieces
Clamp:	1 piece
Hand operated valve	1 piece
Surface color Technology:	phosphoric acid anodizing
Packing method:	One set to be packed into a carton with inside filled by Polyurethane foam

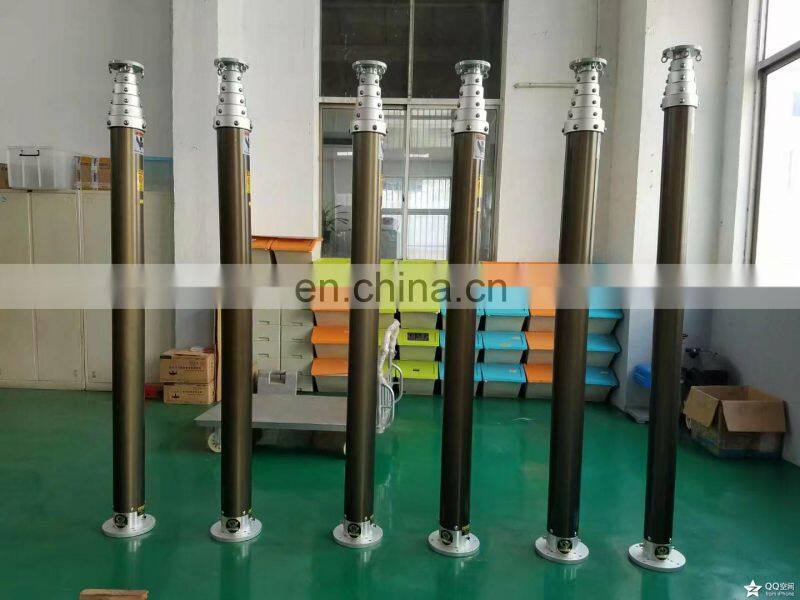

12m outdoor high mast for antenna tower

1. The telescopic mast is made of aluminum alloy or stainless steel tube.

2. It can help lamplight, camera, Antenna, mobile and military, emergency, illumination,

photography, meteorological measurement equipments rise and drop to a certain

height after its work.

3. It can be mounted on the vehicle or stand on the ground with tripod.

4. It has manual, motorized and pneumatic lifting method, the extended length up to 35m

and closed length to 1.3m.

5. The top payload up to 400kgs, wind load: 80 km/h., working temperature: -15--+60℃.

Except the motorized lifting telescopic mast, we still have manula lifting and pneumatic lifting

telescopic masts available for supply as follows, please refer to the catalogue attached below:

Pneumatic telescopic mast

Article No.	Retracted height (mm)	Extended height (mm)	Bottom OD (mm)	TOP OD (mm)	Section NO.	Head-load (kg)
TAL-2.0-1.3-150-AT8	1300	2000	118	98	2	150
TAL-3.0-1.1-30-AT8	1100	3000	87	43	4	30
TAL-3.0-1.5-50-AT8	1500	3000	98	66	3	50
TAL-3.2-1.5-200-AT8	1500	3200	160	118	3	200
TAL-3.2-1.5-250-AT8	1500	3200	180	140	3	250
TAL-4.0-1.85-250-AT8	1850	4000	180	140	3	250
TAL-4.0-1.3-30-AT8	1300	4000	87	43	4	30
TAL-4.0-2.0-250-AT8	2000	4000	180	140	3	250
TAL-4.0-1.2-10-AT8	1200	4000	87	43	4	10
TAL-4.5-1.5-30-AT8	1500	4500	87	36	4	30
TAL-4.5-1.2-30-AT7	1200	4500	140	51	6	30
TAL-4.5-1.65-50-AT9	1650	4500	118	66	4	50
TAL-5.0-1.75-35-AT9	1750	5000	98	51	4	35
TAL-5.0-1.7-40-AT8	1700	5000	98	51	4	40
TAL-5.0-1.75-110-AT8	1750	5000	140	82	4	110
TAL-5.0-1.75-30-AT9	1750	5000	98	51	4	30
TAL-5.0-1.45-10-AT8	1450	5000	87	43	4	10
TAL-5.5-1.8-30-AT8	1800	5500	87	43	4	30
TAL-6.0-1.7-30-AT8	1700	6000	118	51	5	30
TAL-6.0-1.9-30-AT8	1900	6000	87	36	4	30
TAL-6.0-1.95-60-AT8	1950	6000	118	66	4	60
TAL-6.0-2.0-30-AT8	2000	6000	98	51	4	30
TAL-6.0-1.75-12-AT8	1750	6000	87	28	5	12
TAL-6.0-1.95-30-AT8	1950	6000	98	51	4	30
TAL-6.0-2.0-50-AT9	2000	6000	118	66	4	50
TAL-6.0-1.8-60-AT8	1800	6000	140	66	5	60
TAL-6.0-1.95-30-AT8	1950	6000	87	43	4	30
TAL-6.0-1.5-25-AT9	1500	6000	118	51	5	25
TAL-6.0-1.8-15-AT8	1800	6000	98	51	4	15
TAL-7.0-1.95-40-AT8	1950	7000	118	51	5	40
TAL-8.0-1.8-30-AT9	1800	8000	140	36	7	30
TAL-8.0-1.8-50-AT9	1800	8000	160	51	7	50
TAL-8.0-2.2-30-AT8	2200	8000	118	51	5	30
TAL-8.0-2.5-250-AT8	2500	8000	229	118	5	250
TAL-8.0-2.2-60-AT7	2200	8000	140	66	5	60
TAL-8.0-2.0-25-AT8	2000	8000	118	36	6	25
TAL-8.0-2.0-25-AT9	2000	8000	118	36	6	25
TAL-8.4-2.3-30-AT8	2300	8400	118	51	5	30
TAL-9.0-2.15-30-AT8	2150	9000	140	51	6	30
TAL-9.0-2.4-30-AT8	2400	9000	118	51	5	30
TAL-10.0-2.2-20-AT8	2200	10000	140	51	6	20
TAL-10.0-2.4-30-AT7	2400	10000	140	51	6	30
TAL-10.0-2.2-15-AT8	2200	10000	140	36	7	15
TAL-10.0-2.4-15-AT8	2400	10000	118	36	6	15
TAL-12.0-2.7-250-AT8	2700	12000	279	140	7	250
TAL-12.0-2.6-15-AT9	2600	12000	140	36	7	15
TAL-12.0-2.6-15-AT8	2600	12000	180	51	7	15
TAL-12.0-2.6-30-AT9	2600	12000	160	36	7	30
TAL-15.0-3.2-30-AT9	3200	15000	160	51	7	30
TAL-15.0-3.0-20-AT8	3000	15000	140	36	7	20
TAL-15.0-2.65-20-AT8	2650	15000	180	30	9	20
TAL-15.0-3.5-150-AT9	3500	15000	229	98	6	150
TAL-16.0-3.0-30-AT8	3000	16000	180	51	8	30
TAL-18.0-3.3-220-AT9	3300	18000	280	118	8	220
TAL-18.0-3.0-100-AT8	3000	18000	279	66	10	100
TAL-20.0-3.3-55-AT8	3300	20000	229	66	9	55
TAL-30.0-4.0-30-AT8	4000	30000	316	51	13	30
