12m Motorized Masts Mobile Antenna Telescopic Mast
- Port of Tianjin China
- T/T Credit Card
You May Like
-
10m 80kg Payload Telescopic Electro Mechanical Mast for Antenna Feeder Device
-
Mild Steel Portable Lightweight Antenna Communication Pole Customized Mast
-
Aluminum Alloy Camera Tower Heavy Duty Truck Lifts Roof Mounted Mast
-
Stainless Steel Electro Telescoping Antenna 6m Motor Telescopic Mast Camera Photography Cellular Tower
-
Mild Steel Camera Trailer Pole Tunnel Detection Electric 10m Motorized Telescopic Light Mast
-
Aluminum Alloy Vehicle Security System Wireless Mast Telecommunication Antenna Tower
Product Details
| Brand Name | talents, telescopic motorized mast | Place of Origin | Tianjin, China | |
| Model Number | TAL-E12-2.6-200-A | Certification | CE Certificate | |
| After-sales Service Provided | No overseas service provided | Warranty | One Year | |
| Weight | 200kg | Power | 220v/12v | |
| Rated Loading Capacity | 30kg | Overall Dimensions | 12m(extended) | |
| Min. Lifting Height | 2.8 | Max. Lifting Height | 15.0 | |
| Table Size | 180mm | Lift Drive / Actuation | Electric Motor | |
| Lift Mechanism | Telescoping Lift |
Product Description

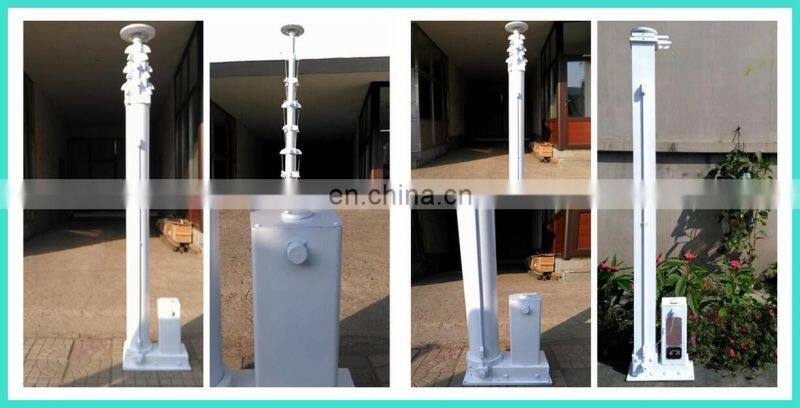

12m motorized masts mobile antenna telescopic mast
12m motorized masts mobile antenna telescopic mast
Specification list
| Article number: | TAL-E12-2.6-200-A |
| Max top payload: | 200kgs |
| Closed length: | 12m |
| Extended length: | 2.6m |
| Main poles' sections: | 6 sections size 1# 150*150mm; 2#120*120mm 3# 100*100mm; 4# 80*80mm 5# 60*60mm; 6#40*40mm |
| Bottom base size (L/W/thickness): | 190mm |
| Top plate size (dia./thickness): | 160mm |
| Working temperature: | -40--+50C |
| Mortor power: | AC220 |
| Wind load: | 120km/h |
| Pulling cord's OD: | 2mm |
| Material for main pole: | square steel |
| Material for bottom base: | iron steel |
| Material for accessories: | iron steel |
| Material for pulling cord: | stainless steel |
| Material for other asscessaires | iron steel |

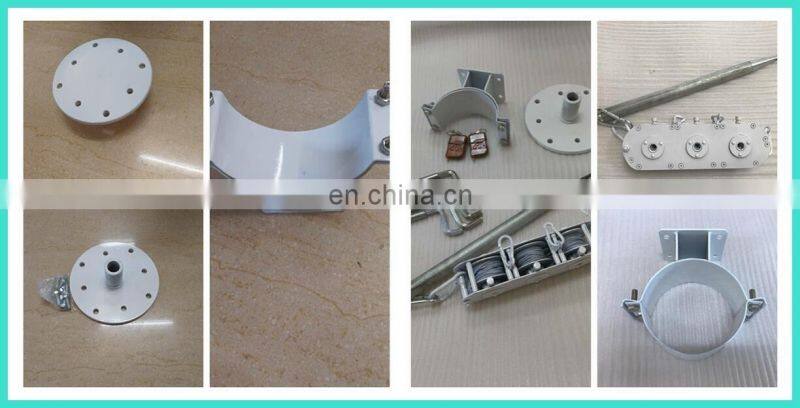

Packing list:
| Mian pole in 7sections: | 1 set |
| Mortor(AC220v): | 1 set |
| Handle lifting bar: | 1 piece |
| Remote controller: | 2 pieces |
| Bottom base: | 1 piece |
| top plate: | 1 piece |
| Pulling cord box with handle bars: | 3 sets |
| Ground anchor: | 3 pieces |
| Clamp: | 1 piece |
| tripod: | 1 set |
| Surface color Technology: | Painting in army green, the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of the aluminum alloy only with top 4cm of each section in army green color. |
| Packing method: | the main mast and the accessories are wrapped with foamed membrane and then to be packed into a polywood case |
1. The telescopic mast is made of aluminum alloy or stainless steel tube.
2. It can help lamplight, camera, Antenna, mobile and military, emergency, illumination,
photography, meteorological measurement equipments rise and drop to a certain
height after its work.

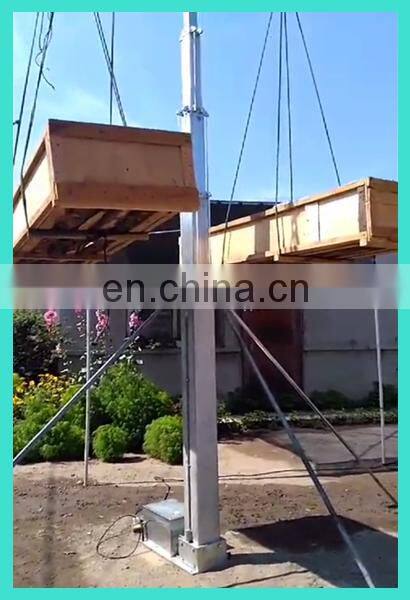

3. It can be mounted on the vehicle or stand on the ground with tripod.
4. It has manual, motorized and pneumatic lifting method, the extended length up to 35m
and closed length to 1.3m.
5. The top payload up to 400kgs, wind load: 80 km/h., working temperature: -15--+60℃.
Except the motorized lifting telescopic mast, we still have manula lifting and pneumatic lifting
telescopic masts available for supply as follows, please refer to the catalogue attached below:
Mortorized lifting telescopic mast
| Article No. | Retracted height (mm) | Extended height (mm) | Diameter range (mm) | Section No.s | top payload (kgs) |
| TAL-2M-30 | 1000 | 2000 | 40-60 | 3 | 30 |
| TAL-2M-100 | 1200 | 2000 | 105-130 | 2 | 100 |
| TAL-3M-250 | 1750 | 3000 | 90-130 | 3 | 250 |
| TAL-4M-250 | 1800 | 4000 | 90-130 | 3 | 250 |
| TAL-4M-10 | 1550 | 4000 | 40-80 | 4 | 10 |
| TAL-4M-50 | 1200 | 4000 | 60-130 | 6 | 50 |
| TAL-5M-150 | 1400 | 5000 | 60-160 | 6 | 150 |
| TAL-5M-600 | 1600 | 5000 | 60-150 | 5 | 600 |
| TAL-6M-10 | 1700 | 6000 | 40-90 | 6 | 10 |
| TAL-6M-50 | 1700 | 6000 | 50-105 | 6 | 50 |
| TAL-8M-30 | 2200 | 8000 | 40-105 | 6 | 30 |
| TAL-10M-30 | 2450 | 10000 | 40-105 | 7 | 30 |
| TAL-12M-200 | 2450 | 12000 | 70-160 | 7 | 200 |
| TAL-12M-35 | 2300 | 12000 | 40-130 | 7 | 35 |
| TAL-12M-100 | 2700 | 12000 | 50-130 | 7 | 100 |
| TAL-15M-20 | 2800 | 15000 | 40-105 | 7 | 20 |
| TAL-15M-30 | 2800 | 15000 | 50-130 | 7 | 30 |
| TAL-15M-300 | 2700 | 15000 | 60-155 | 7 | 300 |
| TAL-20M-200 | 3700 | 20000 | 70-230 | 7 | 200 |
| TAL-25M-80 | 3400 | 25000 | 60-230 | 10 | 80 |
| TAL-25M-60 | 3400 | 25000 | 60-210 | 10 | 60 |
| TAL-28M-15 | 3700 | 28500 | 30-130 | 10 | 15 |
| TAL-35M-10 | 3900 | 35000 | 30-180 | 11 | 10 |
