15m Hand-crank Mechanical Telescopic Mast

Name: 15m Hand-crank Mechanical Telescopic Mast
Brand: Talents
Availability: InStock

FOB Price

US$ 1,453.68 - 1,947 / Set

1 Set(Min. Order)

Port Tianjin port China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents		Place of Origin	Tianjin, China
Model Number	Tal-15.0-2.6-30-H-AXT

Product Description

Product Application

It can help lamplight, camera, Antenna, mobile and military, emergency, illumination,photography, meteorological measurement equipment rise and drop to a certain height after its work. It also plays an important role in natural disasters, emergency rescue.

15m hand-crank mechanical telescopic mast

DESCRIPTION Aluminum manual mechanical telescopic antenna mast
Specification	Extended height	15.0m
	Retracted height	2.6m
	Head-load	30KG
	Self-weight	77kg
	Tube OD & wall thickness	9 sections 1# 1503.0mm;2# 1305mm, 3#1052.5mm,4#902mm, 5#802mm, 6#702mm, 7#602mm, 8#502mm. 9#40*2mm
Accessories	Tripod Nylon pulling cord Handle lifting bar Ground anchor Stainless steel stakes Top flange bottom base
Lift type	Hand crank

Accessories pics

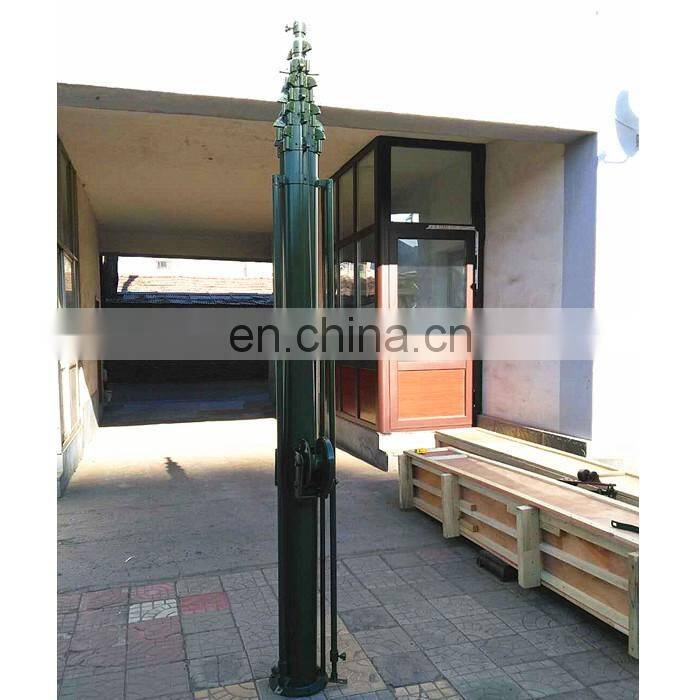

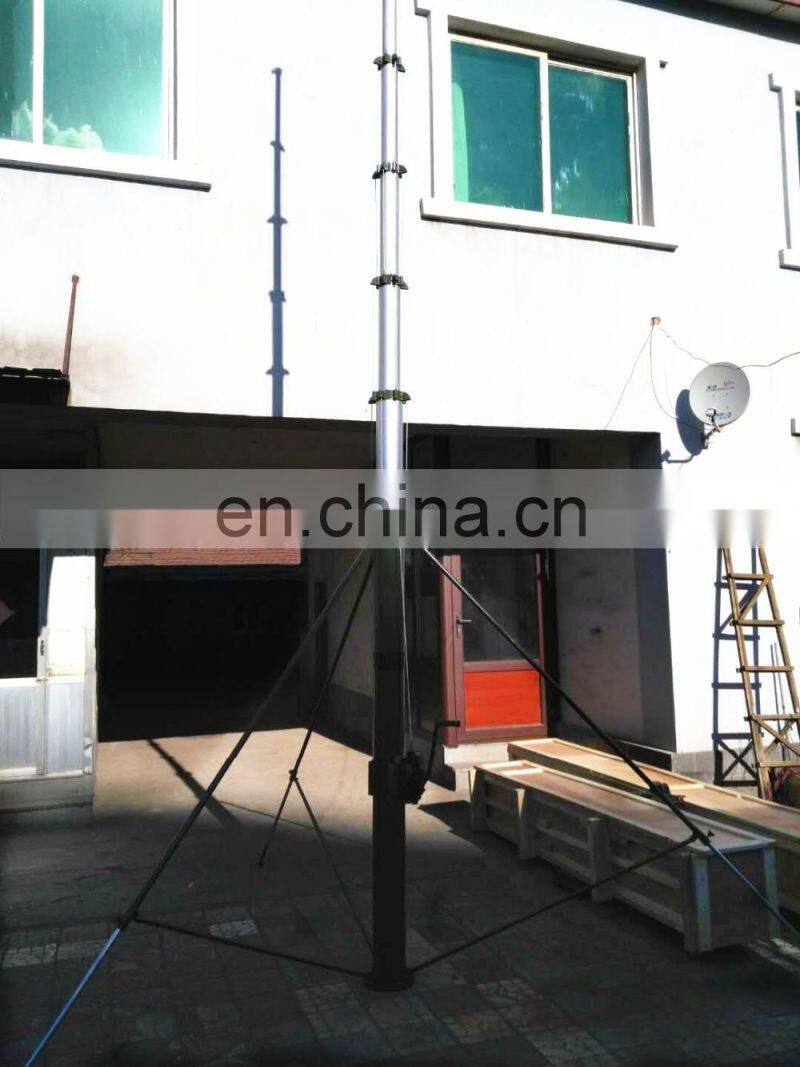

15m ground mounted maual telescopic mast

Handle lifting bar

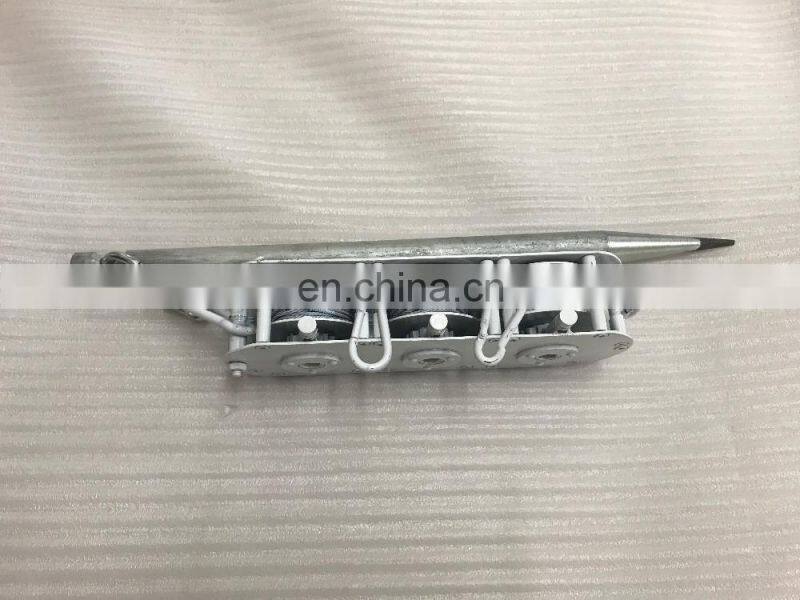

Pulling cord box

Ground anchor

Stainless steel

Top flange

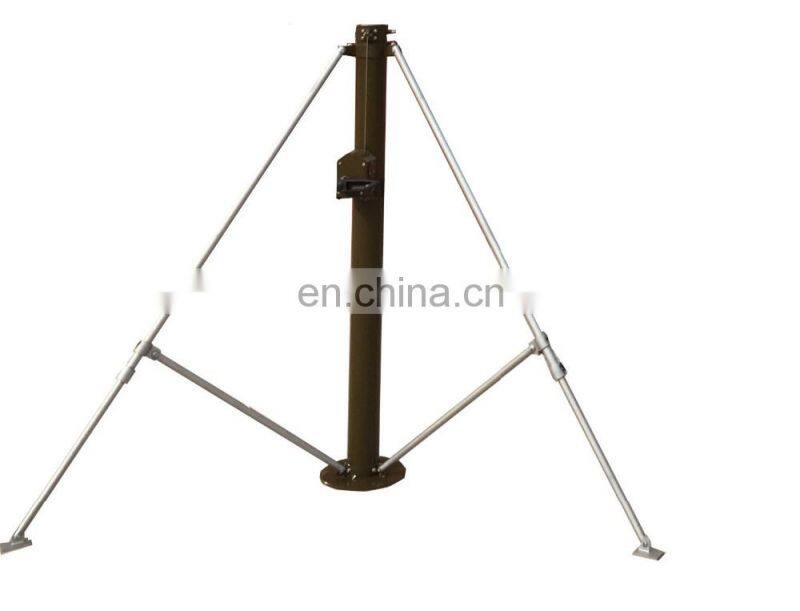

Aluminum tripod

Packing & Delivery

Packaging
Size	2754742CM
Weight	134kg
Packaging Details	1.The normal package is plywod case which is fumigated. 2.all the accessories will be packed with the EPE in independent package 3.the inner parts of the box will be filled with some foam to protect the mast

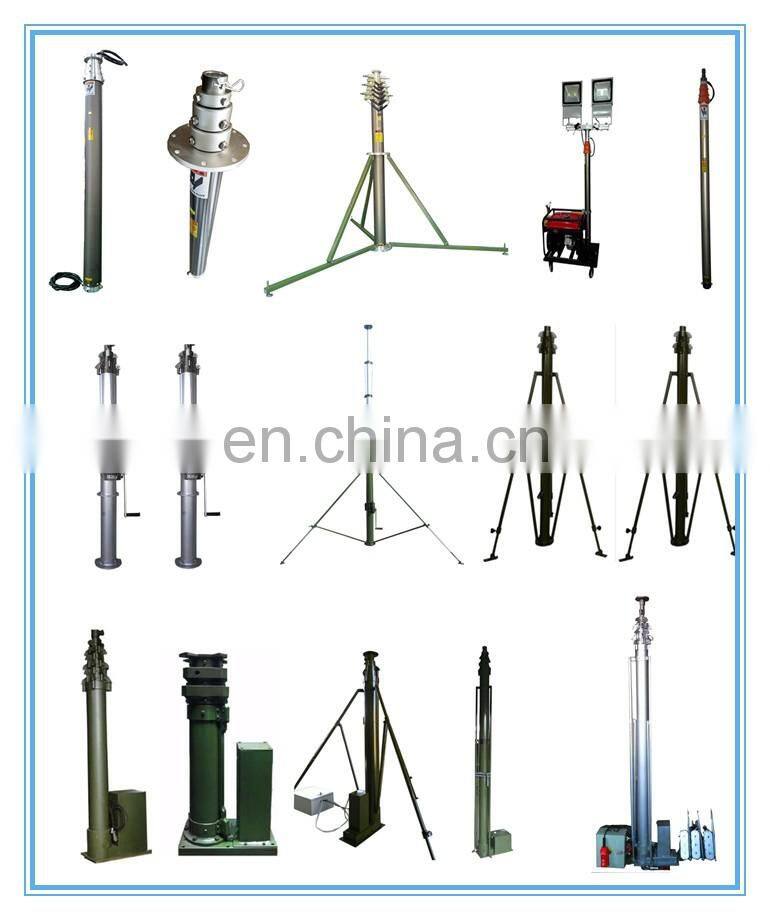

Other Specification

Model No.	Extended height(m)	No. Of section	Retracted height(m)	Outer tube OD(mm)	Head-load (KG)
TAL-M3-1-20	3	3	1.0	70-90	20
TAL-M4-1.5-30	4	3	1.5	50-80	30
TAL-M5-1.65-10	5	4	1.65	50-80	10
TAL-M5-1.2-15	5	5	1.2	40-90	15
TAL-M5-1.2-10	5	6	1.2	40-90	10
TAL-M5-1.7-100	5	6	1.7	60-130	100
TAL-M6-1.7-10	6	5	1.7	50-90	10
TAL-M6-1.5-100	6	6	1.5	60-130	100
TAL-M6-1.3-60	6	7	1.3	40-130	60
TAL-M7-1.8-30	7	7	1.8	40-105	30
TAL-M8-1.8-10	8	6	1.8	40-90	10
TAL-M8-1.5-20	8	8	1.5	40-130	20
TAL-M9-1.8-30	9	7	1.8	40-105	30
TAL-M9-1.8-100	9	7	1.8	60-160	100
TAL-M9-1.9-5	9	7	1.9	30-90	5
TAL-M10-1.95-10	10	7	1.95	30-90	10
TAL-M10-2-40	10	7	2	30-105	40
TAL-M12-2.1-15	12	7	2.1	30-90	15
TAL-M12-2-40	12	8	2.2	40-130	40
TAL-M15-2.45-10	15	8	2.45	30-105	10
TAL-M15-2.6-35	15	9	2.6	30-130	35
TAL-M15-2.5-200	15	7	2.5	70-200	70
TAL-M16-2.6-10	16	8	2.6	30-105	10
TAL-M18-2.7-10	18	9	2.7	30-130	10
TAL-M18-3.2-30	18	9	3.2	30-130	30
TAL-M18-3.7-100	18	7	3.7	50-130	100
TAL-M20-2.95-10	20	9	2.95	30-130	10
TAL-M22-3.15-10	22	9	3.15	30-130	10
TAL-M25-3.4-10	25	10	3.4	30-150	10
TAL-M25-3.5-250	25	10	3.5	80-280	250
TAL-25-3.6-20	25	9	3.6	40-150	20
TAL-M30-3.85-10	30	10	3.85	30-150	10
TAL-M35-4.5-25	35	10	4.5	40-180	25

Our Service

1.Reply Inquiry within 24 hours

By e-mail, Whatsapp, Tradermanager, Wechat... based customers

2.OEM

Tell extended height, rectracted height, head-load,application, we supply drawing and detail

3.Export shipping

We can arrange the shipping for clients, We have long-term cooperation of freight forwarding, to get the

most suitable price
