21m Outdoor Tripod Telescopic Hand Lifting Antenna Mast in White
- Xingang
- T/T Credit Card
You May Like
-
22m Hand Crank Telescopic Mast Manual Tripod Mast
-
Telescopic Pole Aerial Photography Monitoring Camera 5m
-
Hand Winch Portable Telescoping Antenna Tower
-
15m Hand-crank Mechanical Telescopic Mast
-
High Mast Lighting Tower Telescoping Telecommunication Antenna Tower Mast Pole
-
15m 30kg Load Hand Raised Tripod Telescopic High Mast
Product Details
| Brand Name | Talents telescopic hand lifting antenna mast | Place of Origin | Tianjin, China | |
| Model Number | 04TAL-M21-3.0-10 telescopic hand lifting antenna mast |
Product Description

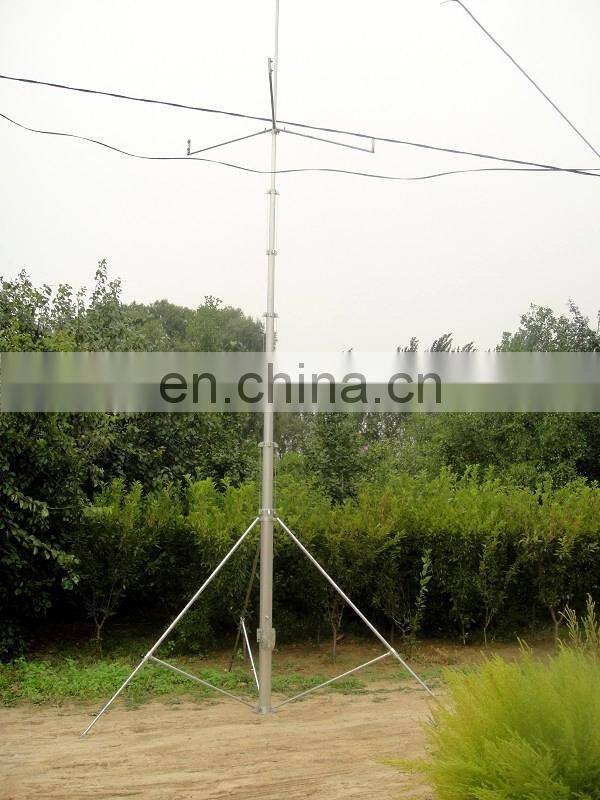

21m outdoor tripod telescopic hand lifting antenna mast in white
21m outdoor tripod telescopic hand lifting antenna mast in white
21m outdoor tripod telescopic hand lifting antenna mast in white
Basic specifications
| Product name | 21m outdoor tripod telescopic hand lifting antenna mast in white |
| Closed length | 3.00m (Bottom base included) |
| Extended length | 21.00m (Bottom base included) |
| Max.payload | 10 kgs |
| Lifting method | hand lifting |
| OD | 30-130mm |
| Material | aluminum alloy |
| Section | 9 |
| Working temperature | -50---+60℃ |
Detailed information
(1)Main pole in 9 sections:
Section No. OD Thickness Height of each section
1# 30mm 2.0mm 2.4m
2# 40mm 2.0mm 2.4m
3# 50mm 2.0mm 2.4m
4# 60mm 2.0mm 2.4m
5# 70mm 2.0mm 2.4m
6# 80mm 2.0mm 2.4m
7# 90mm 2.0mm 2.4m
8# 105mm 2.5mm 2.4m
9# 130mm 4.0mm 2.4m
(2)Top plate Thickness: 10mm Diameter:130mm hole size:4pcs of dia.10mm
Bottom base:180*180mm
(3)Accessories:
Pulling cord box with handle bars------------------3 units
Ground anchor----------------------------------------3 pieces
Handle lifting bar-------------------------------------1 piece
Tripod --------------------------------------------------1 piece
(4)Material:
Main Pole: Section 1-8---aluminum alloy 2A12T4
Section 9-----aluminum alloy 6063
Bottom base and accessories (except the ground anchor): iron steel
Ground anchor: galv stainless steel
Guy wire:nylon
(5)Color: the whole unit will be in silver white when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.
(6)Color Technology: painting
Accessories
1.Pulling cord box and handle bars
3.Handle lifting bar
One unit of telescopic hand lifting antenna mast to be wrapped with Poly tapes then 2 units to be packed into a plywood case
AFTER-SALE SERVICE:
Except the damages due to misuse, unauthorized modification and man-made sabotage, the main pole of 18m with quality problems will enjoyed free after-sales maintenance within one year time from the date of delivery on the condition that the buyer himself will bear the shipping cost back and forth and the said damage should be confirmed by the seller through photos and description
Installation
A.Manual telescopic mast on the ground
1.Determine the mounting position of telescopic mast and ground anchor, hitting one nail per 120 degrees.
2.Ground anchor is nailed to the direction of the mast.
3.The base is fixed with the ground nail, and the direction of the three pulling holes is aligned with the direction of the three ground anchors, and the three hanging boxes are respectively hung on the three pull rings.
4.The handle bar of the mast is inserted into the bottom of motorized telescopic mast, and the hand crank is rotated clockwise, and the mast body is vertical to the ground until the required height is reached.
B.Vehicle mounted manual telescopic mast
1.Determine the installation position, the bottom plate and the vehicle axis should be parallel, and the area should be equivalent to the size of the body floor area, so that the handle bar has a revolving space.
2. The mast is perpendicular to the horizontal plane of the vehicle in the installation of the bottom plate and car clamp of the mast.
3.During the whole installation, the position of bottom plate and car clamp must be ensured at the same time.
4.Car clamp and bottom bracket should be installed on the object which can not be displaced.
5.The clamps can not be installed too tight, so as to avoid the deformation and normal work of the mast.
