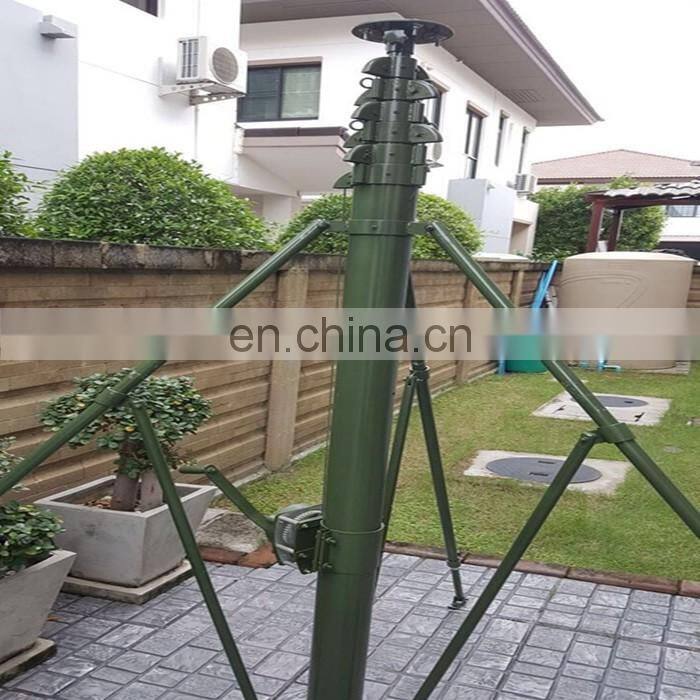

8m mobile hand winch telescopic pole China

Name: 8m mobile hand winch telescopic pole China
Brand: talents
Price: USD $755 - 800 / Unit

FOB Price

USD $755 - $800 / Unit

1 Unit(Min.Order)

Supply Ability 300 Unit / Units per Month
Port Shenzhen China
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

talents

Place of Origin:

Tianjin, China

Model Number:

TAL-M8-1.8-10

Product Description

manual telescopic mast is composed of three sections,the main pole,manual lifting power,connection wire

rope.Hand lifting and screw nut power systerm generate upward momentume.The max payload mainly
depends on sections,height, diameter ,the bottom base,and the tripod,pulling cord ,as well the ground or vehicle

situation.
Screw nut transmission systerm utilizing transformation of force,make a small hand power produce great
upward momentum. Combination part tightness and aluminum alloy material of the mast let no water retention ,
no rain go in.
The mast available extended height is 2m to 35m.The payload up to 300kg from 5kg.
It can help lamplight,camera,ham radio,photography,antenna.......
It can be used on the ground or vehicle mounted or the wall......

Specification for 8m.
Article number	TAL-M8-1.8-10
Lifting method	manual lifting
Closed length and extended length	1.8-8m
material	for main tube:alluminun alloy
net wieght	35kgs( include tripod and other accessories)
Max payload	10kgs
wind load	80km/h
temperature	-40--+50℃
6sections	8
outer tube diameter	40-90mm
reference bottom base	Diameter:120mm Thickness: 10mm

Workshop

Details

Accessories.

Usually the pulling rope used on less than 15m mast;The pulling cord box used on above 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile

If you have other accessories requirement, please contact us separately.

Surface treatment .

Painting or Anodizing

Color :

army green, yellow, white, bronze... ...any color OEM is available.

Other Specification

Model No.	Extended height(m)	No. Of section	Retracted height(m)	Outer tube range(mm)	Self weight (kg)	Max.payload (kg)
TAL-M3-1-20	3	3	1.0	70-90	15	20
TAL-M4-1.5-30	4	3	1.5	50-80	15	30
TAL-M4-1-20	4	3	1.0	70-90	16	20
TAL-M4-1.6-10	4	3	1.6	60-80	14	10
TAL-M5-1.65-10	5	4	1.65	50-80	17	10
TAL-M5-1.2-15	5	5	1.2	40-90	20	15
TAL-M5-1.5-60	5	5	1.5	50-90	20	60
TAL-M5-1.7-100	5	6	1.7	60-130	35	100
TAL-M6-1.7-10	6	5	1.7	50-90	21	10
TAL-M6-1.5-100	6	6	1.5	60-130	40	100
TAL-M6-1.3-60	6	7	1.3	40-130	32	60
TAL-M7-1.8-30	7	7	1.8	40-105	23	30
TAL-M8-1.5-20	8	8	1.5	40-130	34	20
TAL-M9-1.8-40	9	7	1.8	40-105	25	40
TAL-M9-1.8-30	9	7	1.8	40-105	25	30
TAL-M9-1.8-100	9	7	1.8	60-160	43	100
TAL-M9-1.9-5	9	7	1.9	30-90	25	5
TAL-M10-1.95-10	10	7	1.95	30-90	26	10
TAL-M10-2-40	10	7	2	30-105	31	40
TAL-M12-2.2-10	12	7	2.2	30-90	28	10
TAL-M12-2.1-15	12	7	2.1	30-90	28	15
TAL-M12-2-40	12	8	2.2	40-130	44	40
TAL-M15-2.45-10	15	8	2.45	30-105	33	10
TAL-M15-2.6-35	15	9	2.6	30-130	40	35
TAL-M15-2.5-200	15	7	2.5	70-200	200	70
TAL-M16-2.6-10	16	8	2.6	30-105	35	10
TAL-M18-2.7-10	18	9	2.7	30-130	47	10
TAL-M18-3.2-30	18	9	3.2	30-130	48	30
TAL-M18-3.7-100	18	7	3.7	50-130	47	100
TAL-M20-2.95-10	20	9	2.95	30-130	55	10
TAL-M20-3.20-20	20	8	3.20	40-130	58	20
TAL-M22-3.15-10	22	9	3.15	30-130	58	10
TAL-M25-3.4-10	25	10	3.4	30-150	72	10
TAL-M25-3.5-250	25	10	3.5	80-280	90	250
TAL-25-3.6-20	25	9	3.6	40-150	71	20
TAL-M30-3.85-10	30	10	3.85	30-150	84	10
TAL-M35-4.5-25	35	10	4.5	40-180	130	25

Packing & Delivery

8m mobile hand winch telescopic pole China.

Packing meterial: one unit (main pole and all accessories)to be wrapped with EPE and then to be packed into a plywood case.

Gross weight:60kgs

Package meas:190*25*25

Certifications

Our Service

1.OEM/ODM service available for the buyers.
2.1 year free after-sale warranty after delivery.
3.Professional team for consultation, solution and designing.
4.Complete quality control system before delivery

5.Multi-ways fast delivery channel at buyer's option.

Our Company

Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Our masts are CE certified, we are providing customers an one for one timely information feedback.We are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
