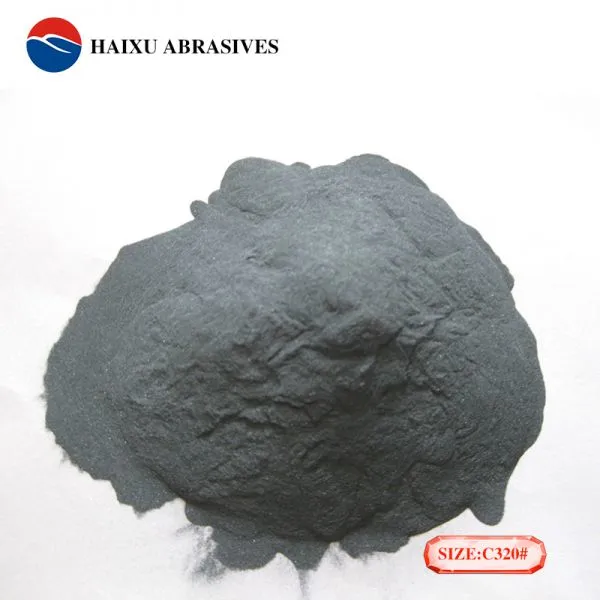

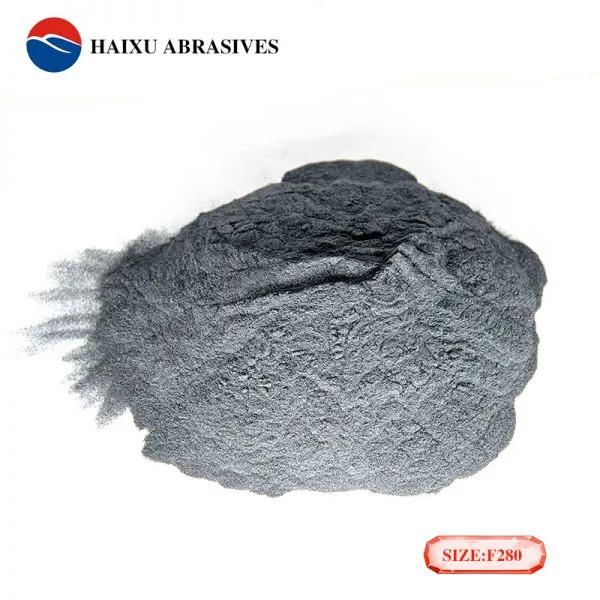

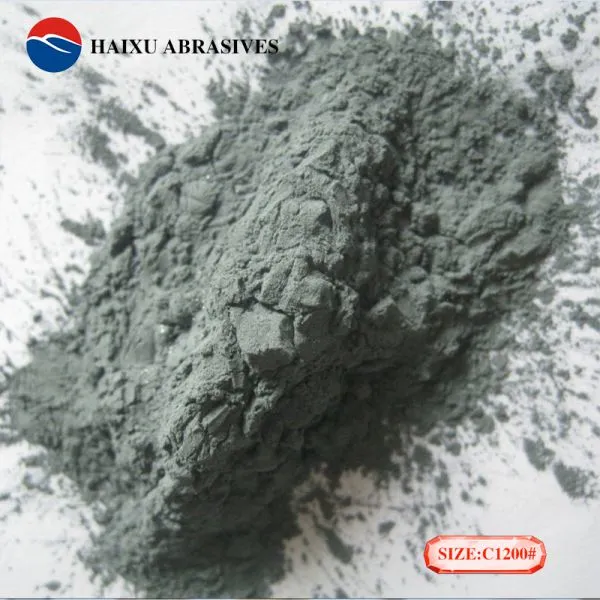

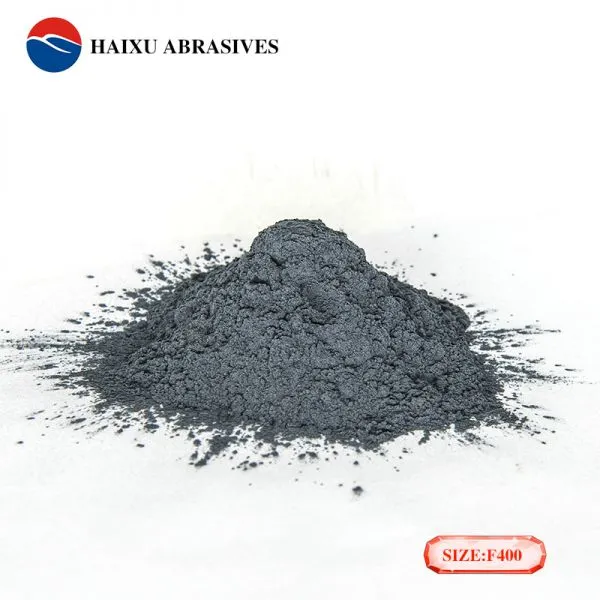

Black silicon carbide powder China manufacture
Description:
Black Silicon carbide powder is acid pickled water separated powder with an extreme hardness after producing at high temperature in an electric resistance type furnace with quarts sand and petroleum coke.
Black Silicon Carbide is produced by a process involving the electrochemical reaction of silica(SiO2) – in the form of quartz mixed with Carbon(C) in the form of raw petroleum coke. The stoichiometric mixture is reacted in an electrical resistance furnace at a temperature up to 2500℃ to yield high-quality crystals. The process is large furnace technology with a graphite electrode in the furnace center. The large crystals are then segregated, crushed, cleaned of magnetic impurities in high-intensity magnetic separators and classified into narrow size fractions to suit the end-use. Dedicated lines produce products for different applications. The micro powder form silicon carbide from HAIXU Abrasives is with good size distribution, high purity, and low impurities.
High hardness, retaining hardness and strength at high temperature.
High wear resistance.
Excellent thermal shock resistance with high thermal conductivity and low linear thermal expansion.
Good ability to withstand the strongest alkalis and acids.
| TYPICAL CHEMICAL ANALYSIS | |
| SiC | ≥98% |
| SiO2 | ≤1% |
| H2O3 | ≤0.5% |
| Fe2O3 | ≤0.3% |
| F.C | ≤0.3% |
| Magnetic content | ≤0.02% |
| TYPICAL PHYSICAL PROPERTIES | |
| Hardness: | Mohs:9.2 |
| Melting Point: | dissociated at about 2300 °C |
| Maximum service temperature: | 1900℃ |
| Specific Gravity: | 3.2-3.45 g/cm3 |
| Bulk density(LPD): | 1.2-1.6 g/cm3(depends on the size) |
| Color: | Black |
| Particle shape: | Hexagonal |
| Modulus of Elasticity | 58-65x106 psi |
| Coefficient of Thermal Expansion | 3.9-4.5 x10-6/ ℃ |
| Thermal Conductivity | 71-130 W/MK |
| AVAILABLE SIZES | |
| FEPA | F230 F240 F280 F320 F360 F400 F500 F600 F800 F1000 F1200 F1500 F2000 |
| JIS | 240# 280# 320# 360# 400# 500# 600# 700# 800# 1000# 1200# 1500# 2000# 2500# 3000# 4000# 6000#8000# |
D50 Sizes of black silicon carbide power:
| FEPA-microgrits sizes bonded | |
| Grit designation | Mean grain size ds50-value in μm |
| F 230 | 53.0 ± 3 |
| F 240 | 44.5 ± 2 |
| F 280 | 36.5 ± 1.5 |
| F 320 | 29.2 ± 1.5 |
| F 360 | 22.8 ± 1.5 |
| F 400 | 17.3 ± 1 |
| F 500 | 12.8 ± 1 |
| F 600 | 9.3 ± 1 |
| F 800 | 6.5 ± 1 |
| F 1000 | 4.5 ± 0.8 |
| F 1200 | 3.0 ± 0.5 |
| F 1500 | 2.0 ± 0.4 |
Ceramic products like silicon carbide ceramic seal.
Lapping, polishing.
Insulation
Wire sawing
Cutting material such as stone, silicon wafers.
Raw material of Knife Grinder, Whetstone, oilstone, grinding stone, honing, sharpening sticks, etc.
Material of Polishing wax, polishing fluid, grinding powder, grinding fluid and so on
Wear-resisting floor and non-slip coating such as additive for epoxy resin floors.
Brake linings
Semiconductor industry.
Ø We are a manufacturer, which can control the cost easier than trade company also can give you answer more quickly.
Ø As a manufacturer, we know much in technique and can give you more support in technique problem
Ø Professional and experienced service team, specialized in abrasive production, more than 10 years.
Ø Our products are complete in specifications with various of sizes
Ø We enjoy a good reputation in the customers in domestic and overseas markets.
Ø Large production capacity, short lead time of products.
Ø 24*7 online service.
