SAIFU Factory Ceiling Fan Wiring Diagram CBB60 Capacitor

Anhui Safe Electronics Co.,LTD
SAIFU Factory Ceiling Fan Wiring Diagram CBB60 Capacitor thumbnail-1
SAIFU Factory Ceiling Fan Wiring Diagram CBB60 Capacitor thumbnail-2
SAIFU Factory Ceiling Fan Wiring Diagram CBB60 Capacitor thumbnail-3
SAIFU Factory Ceiling Fan Wiring Diagram CBB60 Capacitor thumbnail-4
SAIFU Factory Ceiling Fan Wiring Diagram CBB60 Capacitor thumbnail-5
SAIFU Factory Ceiling Fan Wiring Diagram CBB60 Capacitor photo-1
SAIFU Factory Ceiling Fan Wiring Diagram CBB60 Capacitor photo-2
SAIFU Factory Ceiling Fan Wiring Diagram CBB60 Capacitor photo-3
SAIFU Factory Ceiling Fan Wiring Diagram CBB60 Capacitor photo-4
SAIFU Factory Ceiling Fan Wiring Diagram CBB60 Capacitor photo-5
US$ 0.1 - 2 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SaiFu
Place of Origin:
China
Model Number:
cbb60
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SaiFu
Place of Origin China
Model Number cbb60
Type Polypropylene Film Capacitor
Application AC / Motor
Rated Voltage 220vac - 450vac
Operating Temperature 40/70/21 or 40/85/21
Package Type Through Hole
Capacitance 1uf - 130uf

SAIFU factory ceiling fan wiring diagram CBB60 capacitor

Product Description

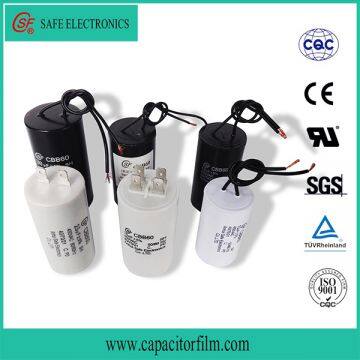

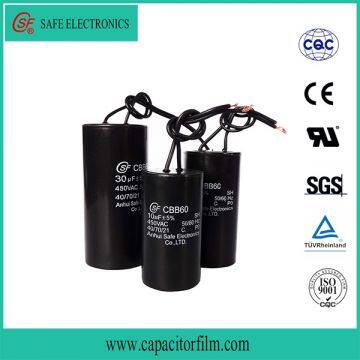

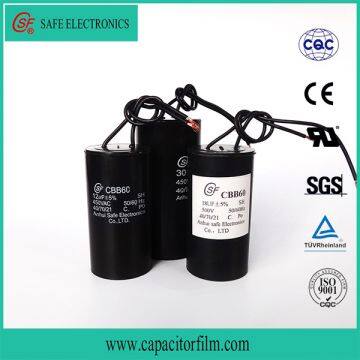

 Features of CBB60 capacitor:

1. Cylindrical flame–retardant plastic shell, resin filled and plastic case sealed;
2. Non-inductive winding structure by metallized polypropylene film;
3. Small size, light weight, low loss;

4. Self-healing property, high stability and reliability;

5. Lead out with pins or wires, with or without screw at the bottom of capacitor.

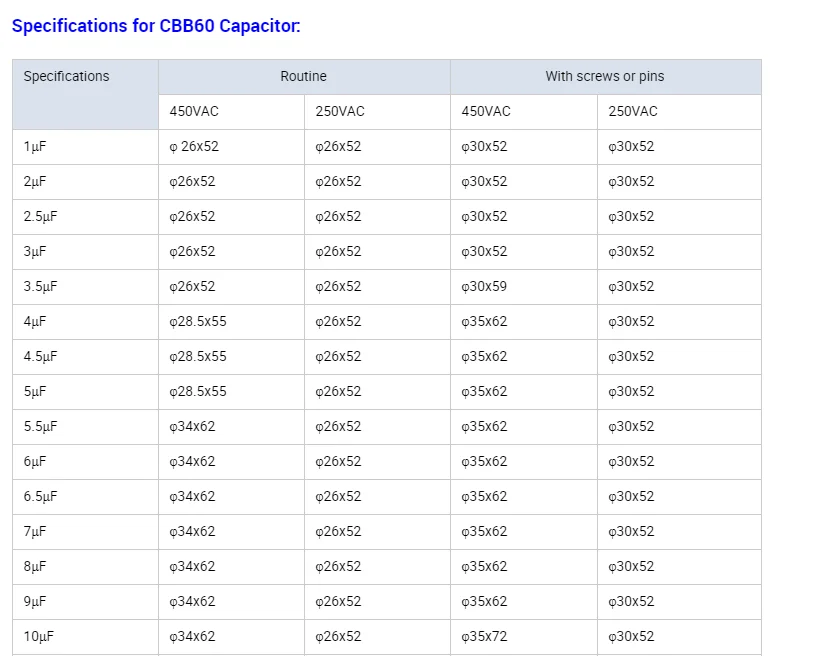

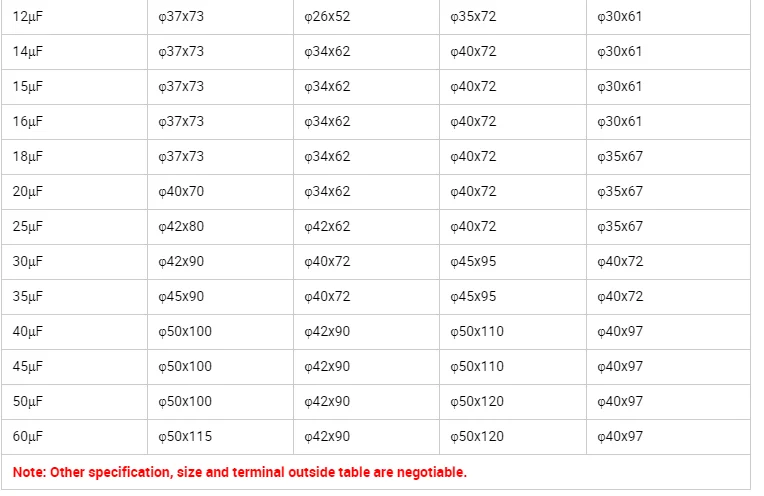

Specifications:

Product type
 CBB60 Capacitor
Reference standards
GB/T 3667.1 (IEC60252-1)
Operating temperature
40/70/21, 40/85/21
Class of operation
Class B(10000h) Class C(3000h)
Class of safety protection
P2/P0
Rated Voltage
200-500VAC
Capacitance tolerance
±5%
Test voltage terminal to terminal
2 Un for 2 seconds
Insulation resistance
≥3000MΩ.μF(100Hz, 20℃, 1min)

Technology

Equipments:  hot selling 5.5uF 450V CBB60 capacitor for water pumphot selling 5.5uF 450V CBB60 capacitor for water pumphot selling 5.5uF 450V CBB60 capacitor for water pumphot selling 5.5uF 450V CBB60 capacitor for water pumphot selling 5.5uF 450V CBB60 capacitor for water pump

hot selling 5.5uF 450V CBB60 capacitor for water pumphot selling 5.5uF 450V CBB60 capacitor for water pump

hot selling 5.5uF 450V CBB60 capacitor for water pump

hot selling 5.5uF 450V CBB60 capacitor for water pump

Company Information

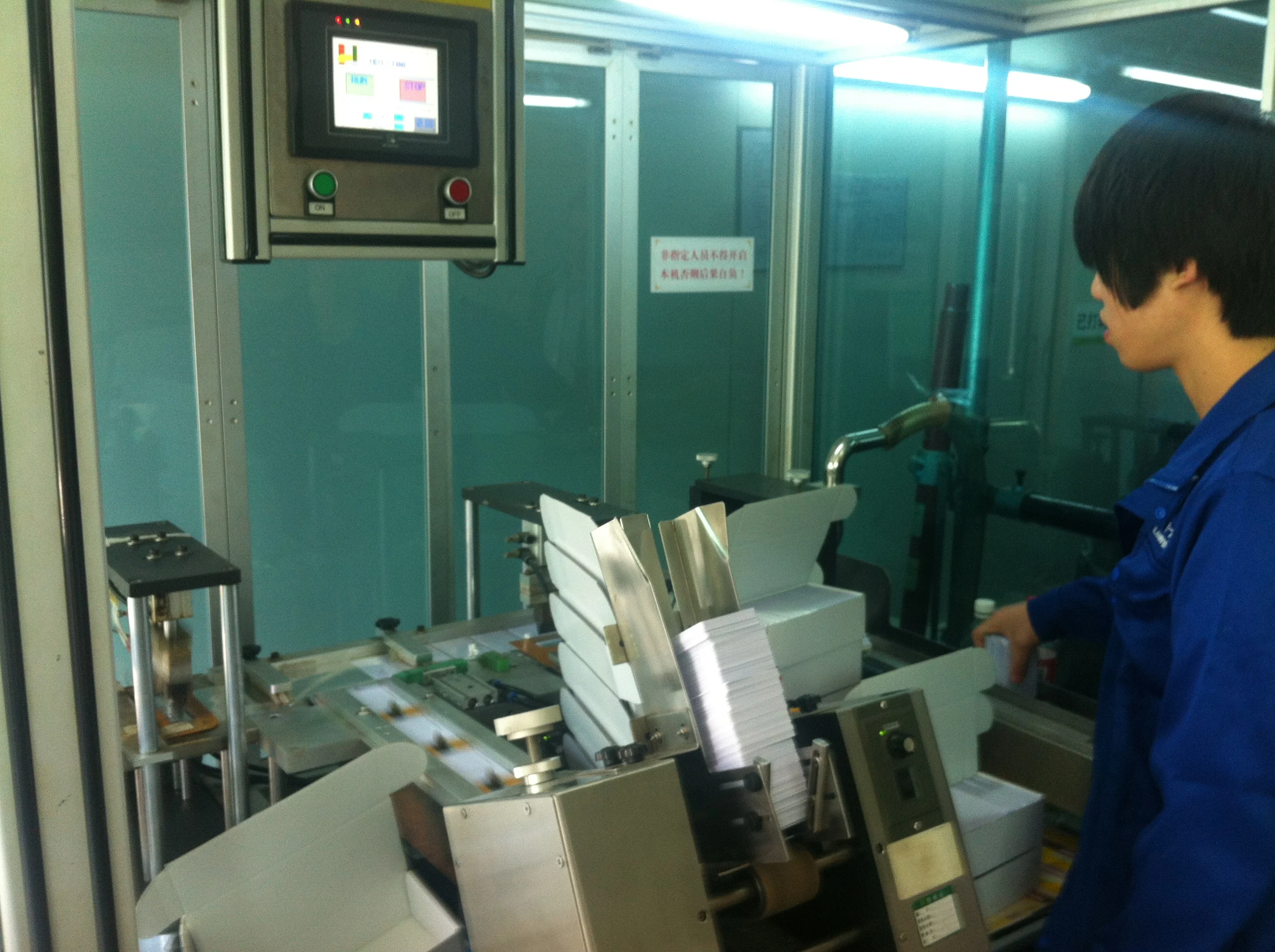

 As a company which is specialized in manufacturing metallized film for capacitor use and metallized film capacitors for about 10 years, we possess non-dust workshop, many professional manufacturing equipments, many professional test equipment and testing instruments. You can see part of them from below pictures:

hot selling 5.5uF 450V CBB60 capacitor for water pump

Certifications

The company has obtained ISO9001,SGS,VDE,TUL,UL and CQC certificate .



hot selling 5.5uF 450V CBB60 capacitor for water pump
