Ship Moving Rubber Pontoon

Ship Moving Rubber Pontoon photo-1
Ship Moving Rubber Pontoon photo-2
Ship Moving Rubber Pontoon photo-3
US$ 300 - 1800 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
FLORESCENCE
Place of Origin:
China
Model Number:
FL-SJY4020
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name FLORESCENCE
Place of Origin China
Model Number FL-SJY4020
Part Other

Ship moving airbags also known as marine airbag, ship launching airbag, ship salvage airbag, inflatable airbag, ship lifting bag, air balloon, made by natural rubber & multi layer of rubber-dipped tyre fabric.

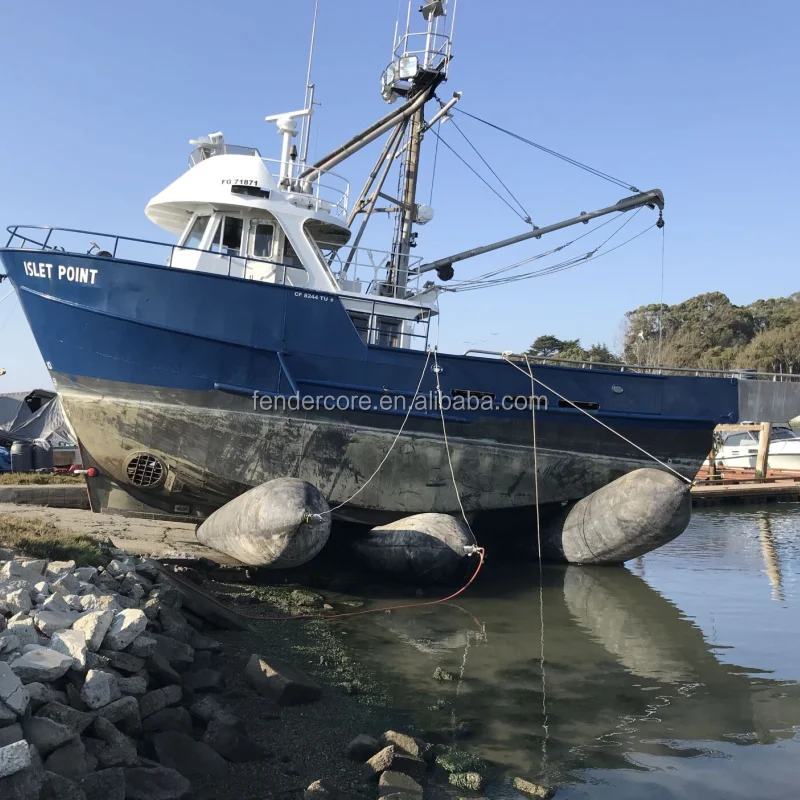

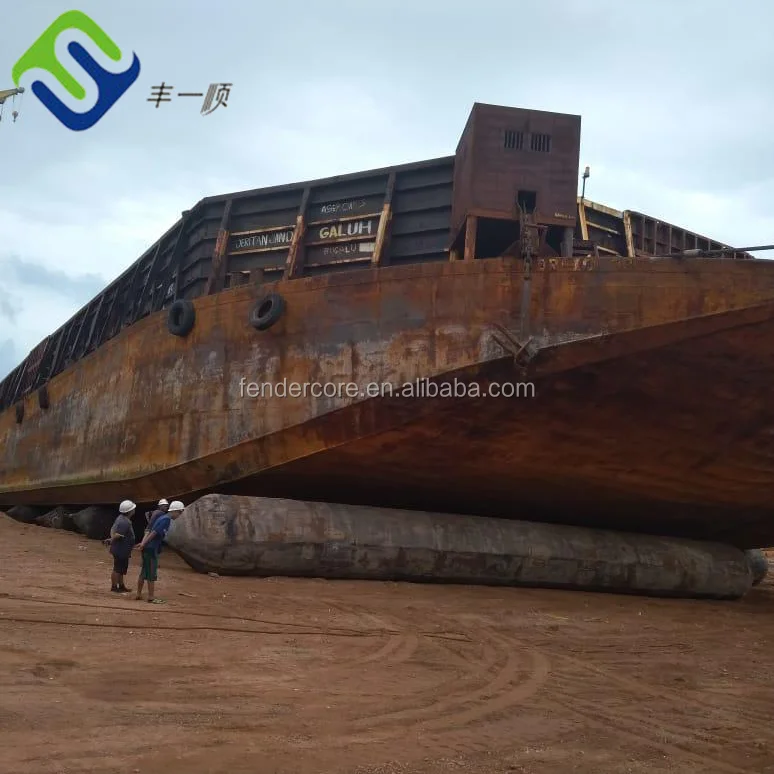

Ship moving airbags are widely used in launching and landing ship/ boat/vessel, lifting and moving heavy goods, salvaging stranded boats.
Ship moving airbags are very popular with shipyard, ship owner, and marine supplies company now.

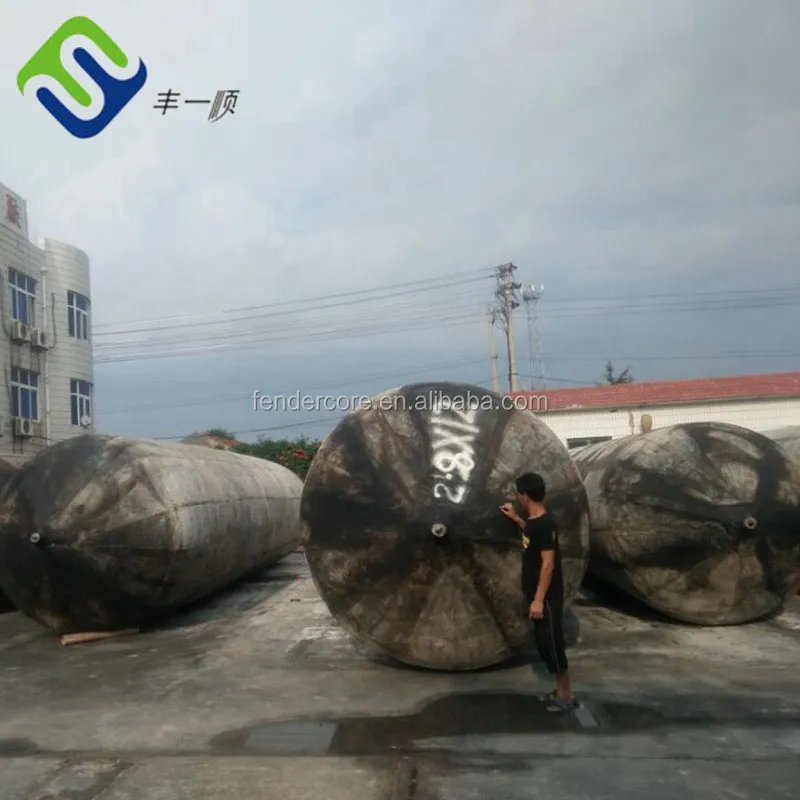

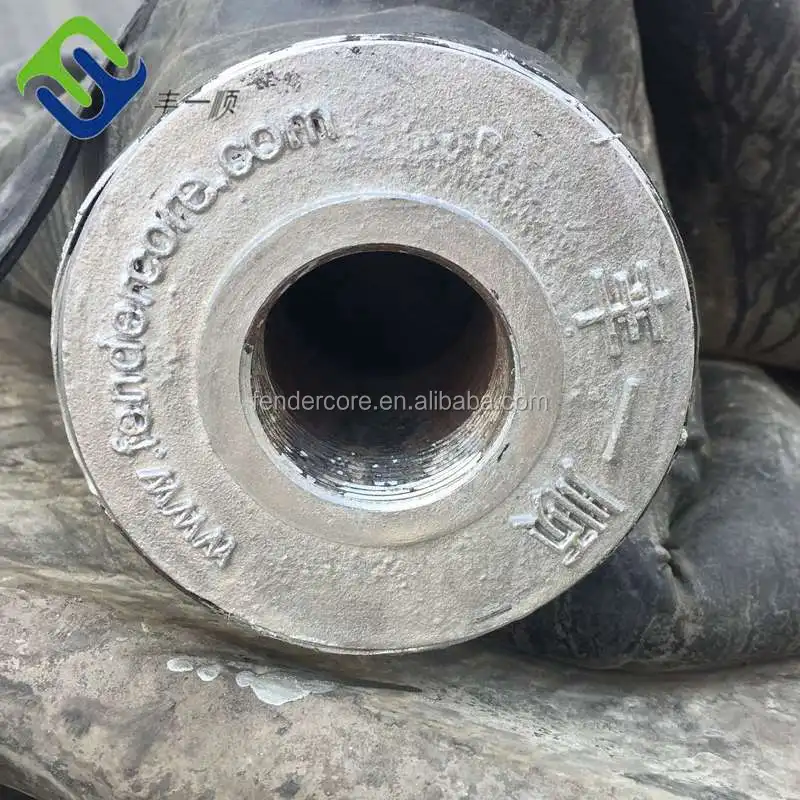

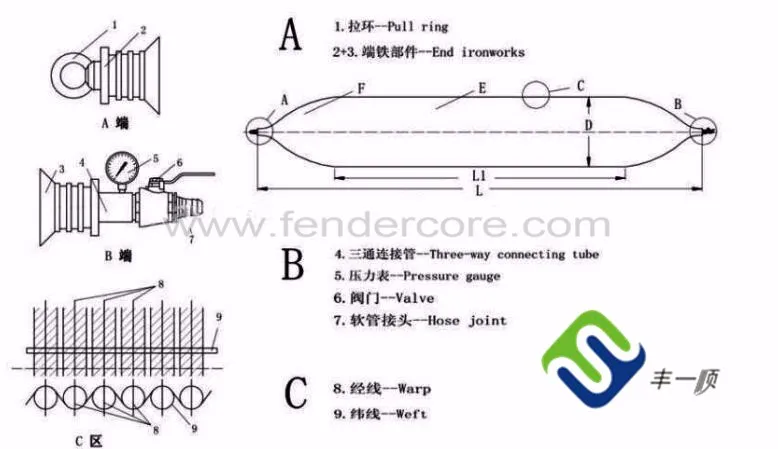

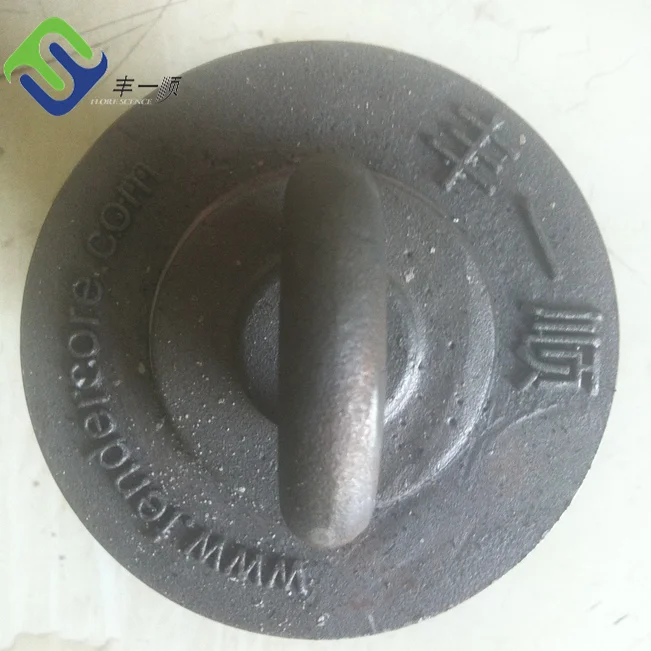

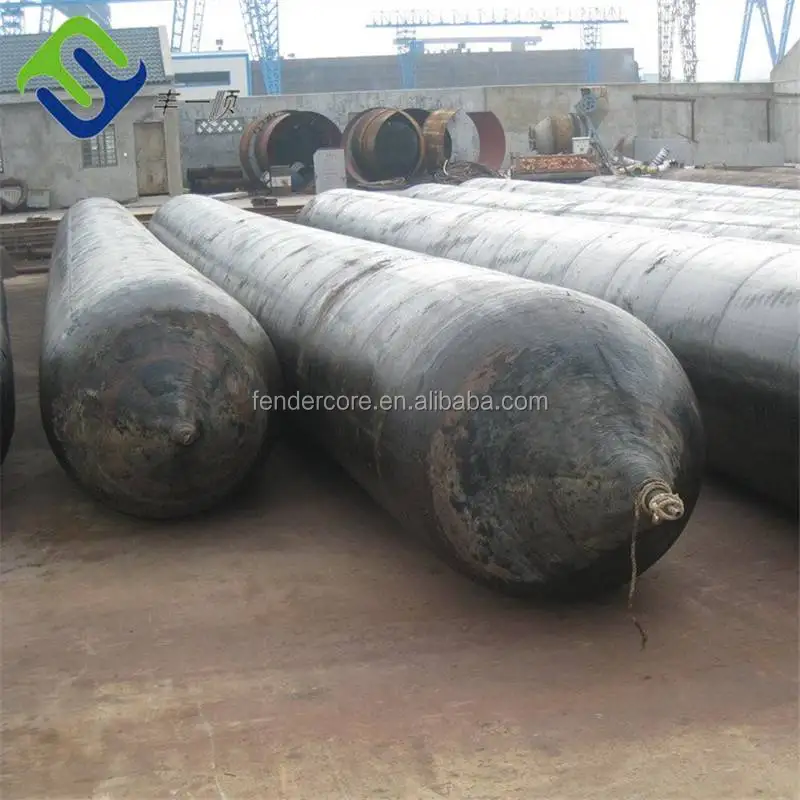

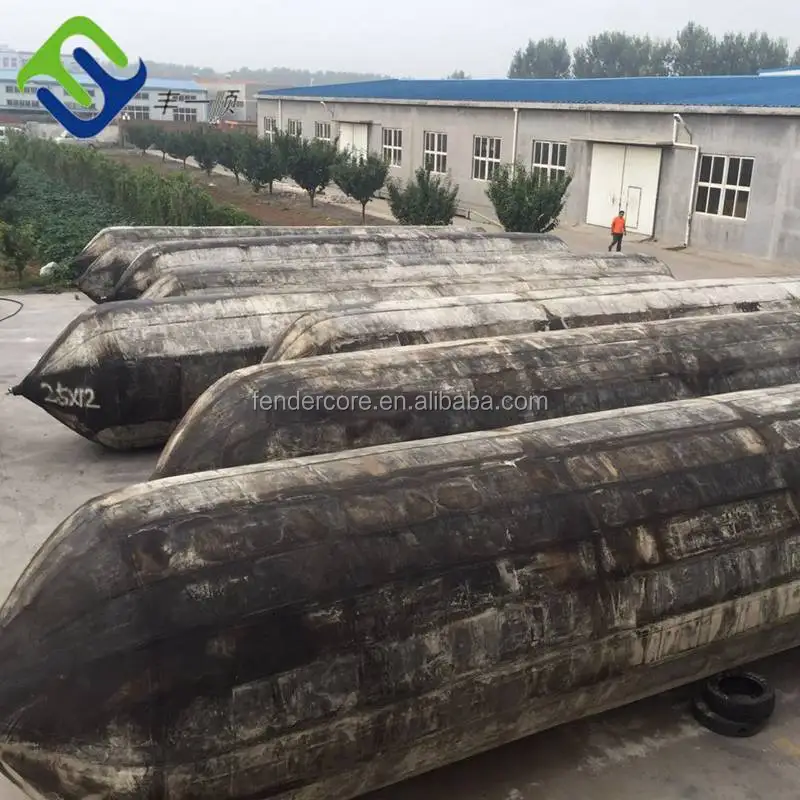

Detailed Images
Diameter
                                From 0.6-2.5m
Length
                                From 5.0-22.0m
Total length
                                From7.0-25.0m
Standard number of layers
                                Usually 4-10layers

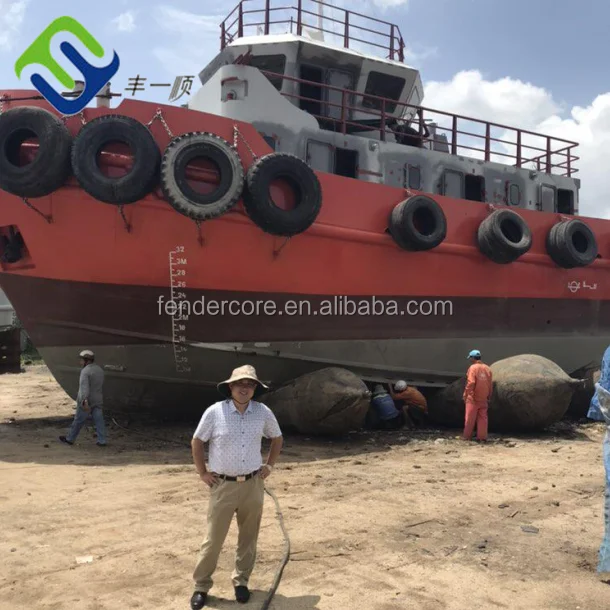

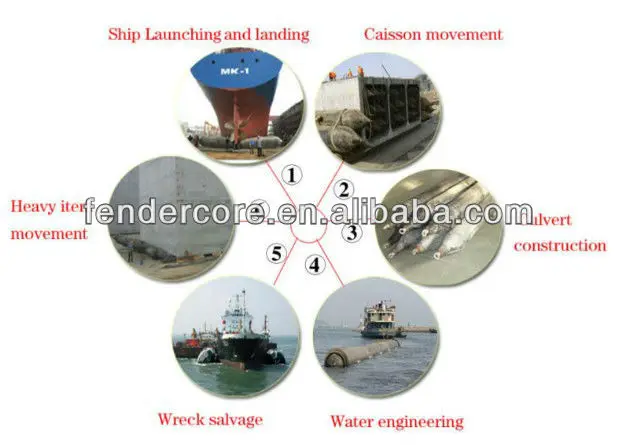

Application of Ship moving rubber pontoon

Attentions during airbag use and ship launching

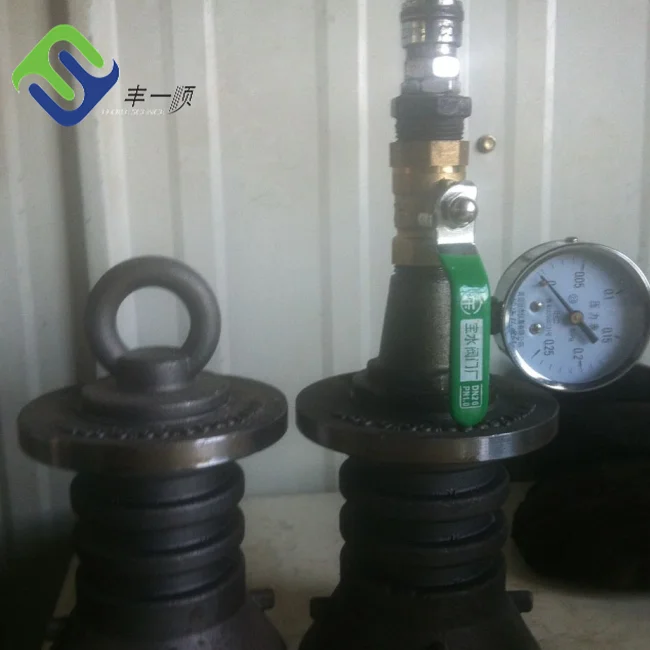

1.The airbags must be checked if the pressure gage is normal before used.

2.The working pressure of the airbag whenused should compare the data in the bearing oressrre capacity from mustn't use excessive pressure.

3.It must clean the sharp and protruding hard objects on the ground which could contact with the airbag body before the airbag being used, in case it punchures the skin of the airbag.

4.The distance of the airbag under the ship should no less than 1.5m,the distance after compression should at least 0.8m, in case it occours the airbag overlapping phenomenon when the ship launching.

5.Lifting after the airbag be forced under the snip, when most of the ship is raised up,demount the pier-top and force the rolling airbag at the same time. If there is one or two pier-top impacted which is difficult to take out, do not let the works force todemount the pier-top,if the pier-top is demounted, it is easy to suffer from the slip gravity, and then will make the airbag explosive. The workers should check the working pressure of the airbag.

Ship Moving Airbag Advantages

1. Different size airbag stock avaliable, quick delivery
2. Provide repair kit and on site instruction
3. Long time service life can be reused many times
4. Wear resistance and anti aging

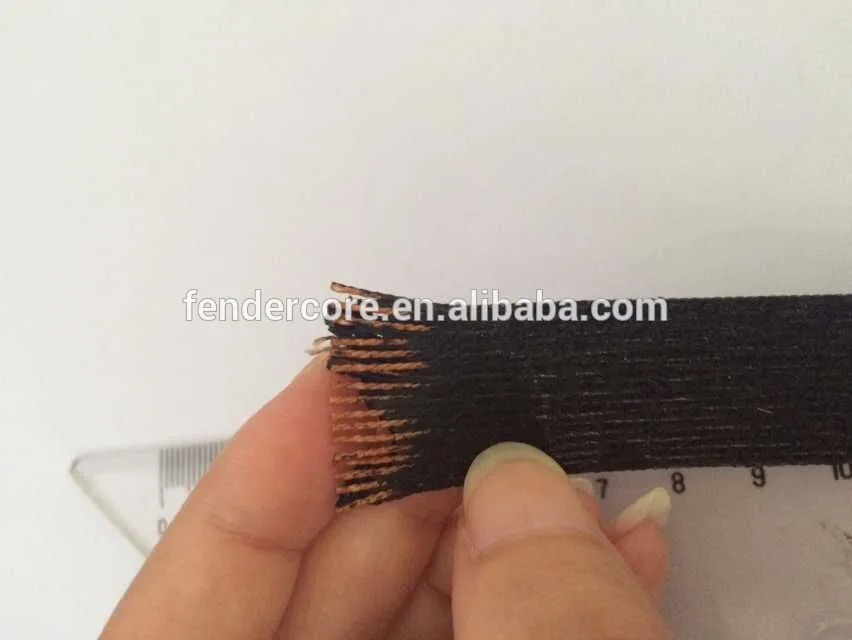

5. Good raw material and cord faabric
6.Harmless to the envirenment. Time & money saving
7. Need no more than aie compressors, winches
8. Much cheaper and portable than other meyhods

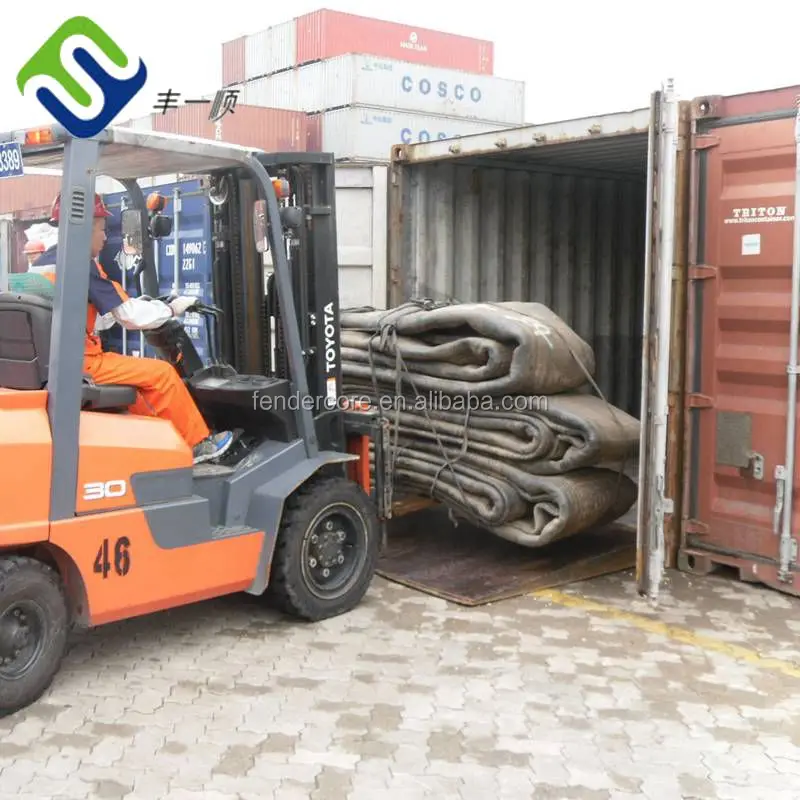

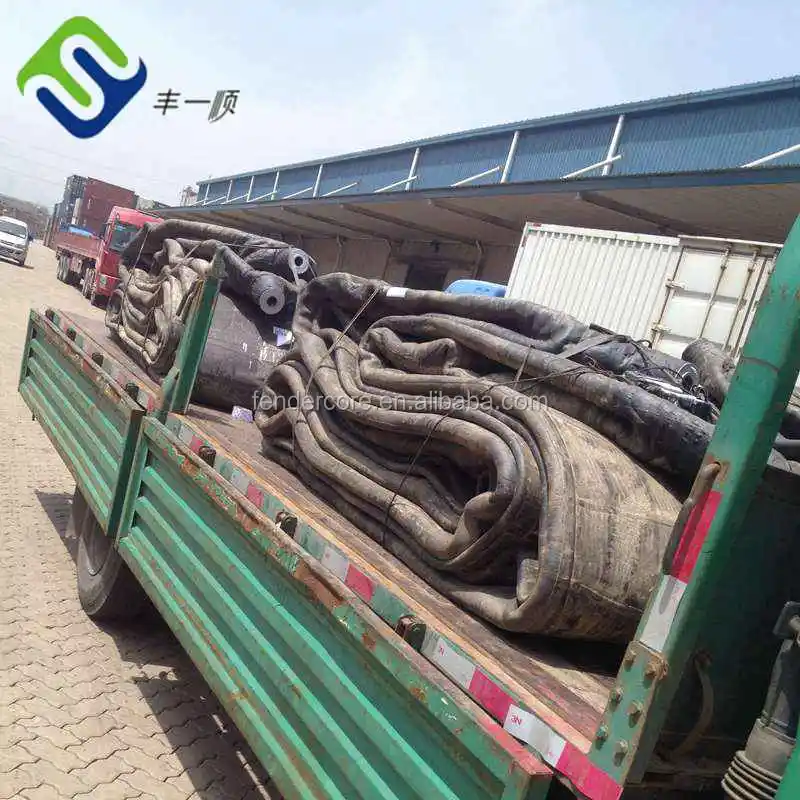

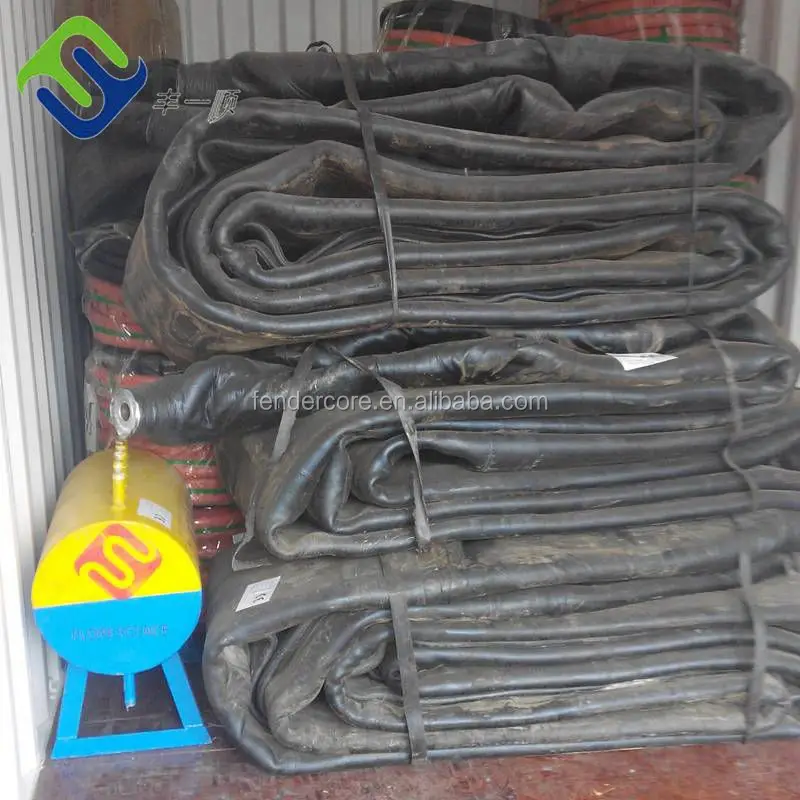

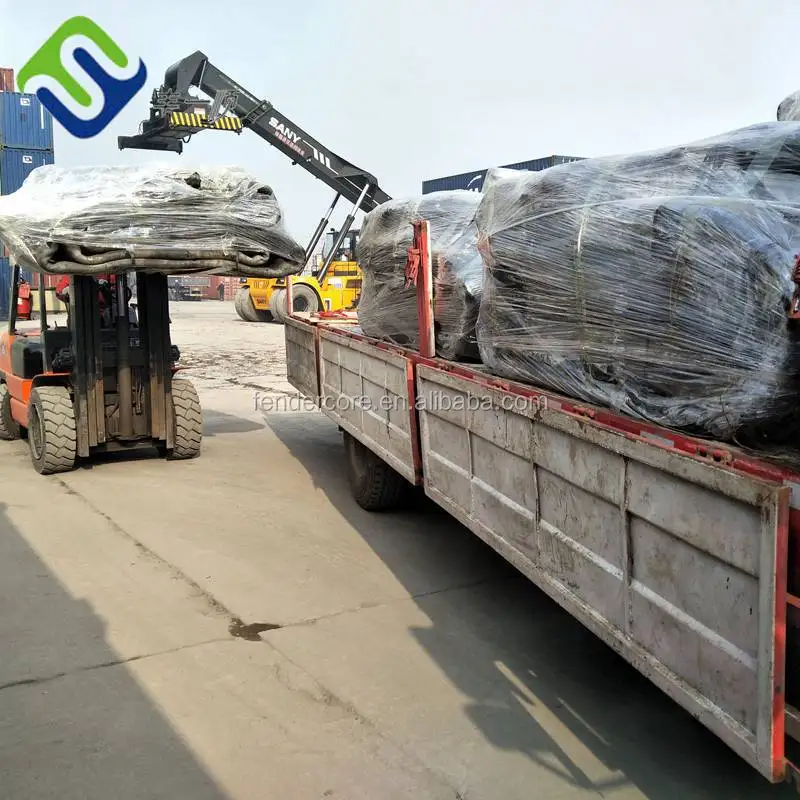

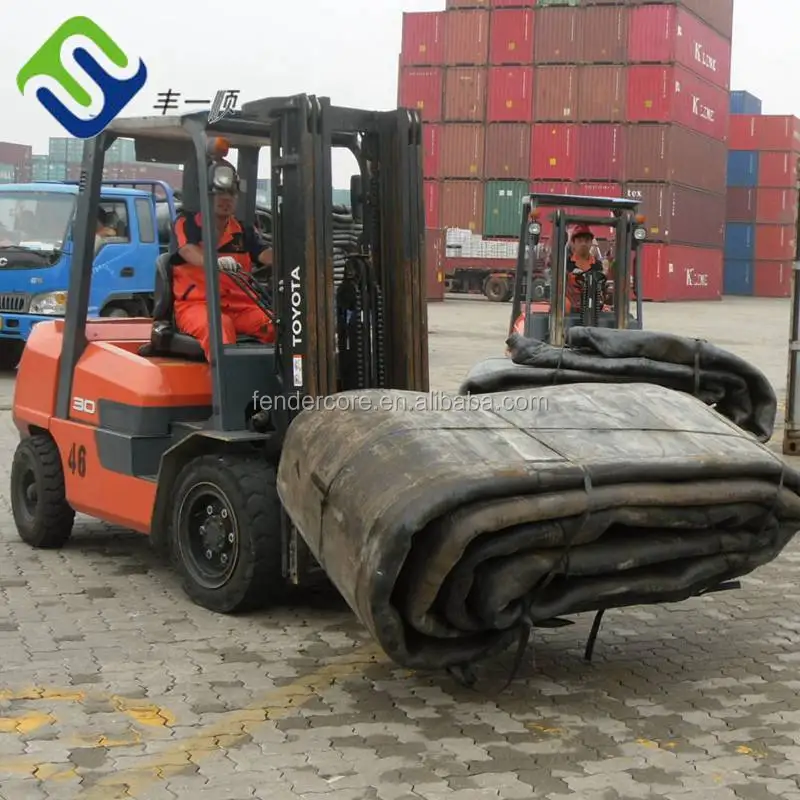

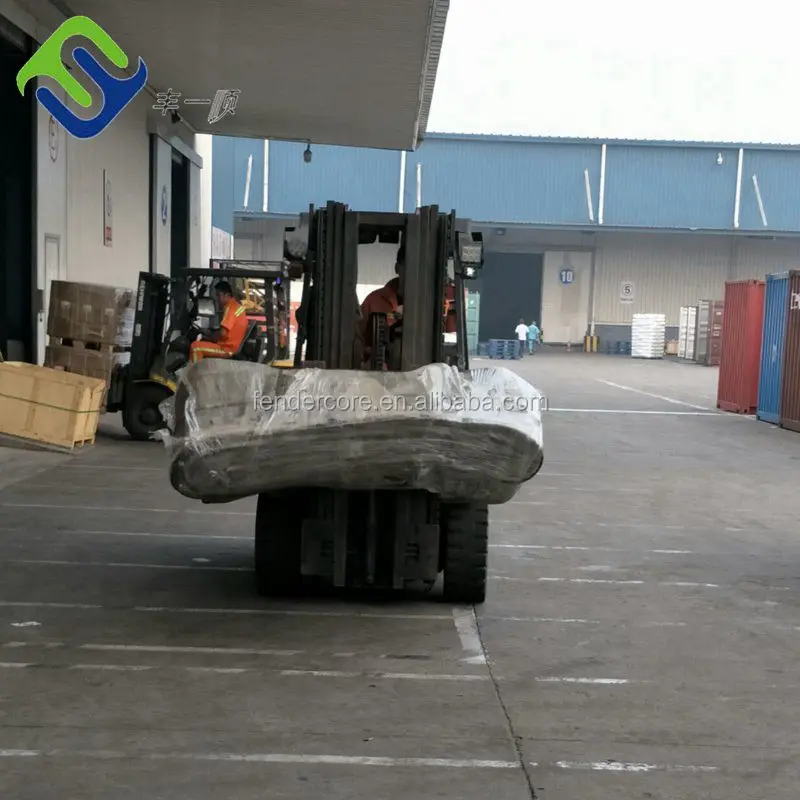

Packing & Delivery


Product Tags: ship launching and landing airbag , ship launching airbag , ship landing airbag
