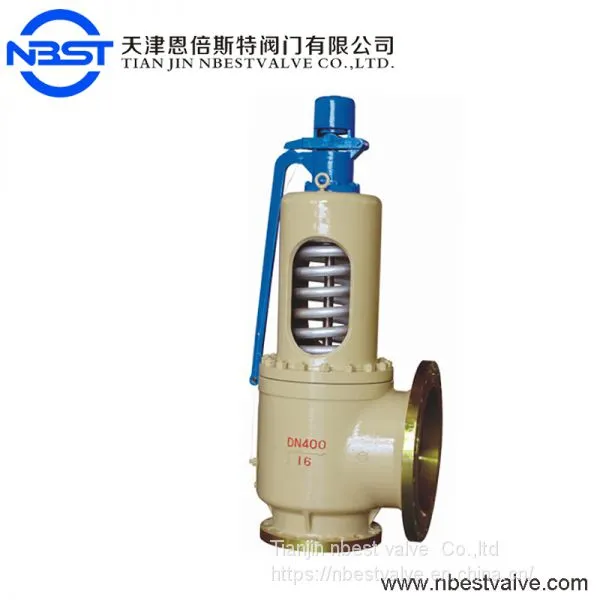

Help CenterAutomatic High Temperature Duplex Spring Type Safety Valve
Related Products
-
DN25 High Temperature Safety Valve For Medium Gas,liquid With A RadiatorUS$ 20 - 1000MOQ: 1 Piece -
DN25 API DIN Pressure Large Size Relief Valve, Safety Valve For WaterUS$ 20 - 1000MOQ: 1 Piece
-
DN25 Low Pressure Reief Valve Air Safety Valve With BellowsUS$ 20 - 1000MOQ: 1 Piece
-
DN25 A42F-25C Low Temperature Natural Gas Safety ValveUS$ 20 - 1000MOQ: 1 Piece
-
Automatic Pressure Duplex Spring Type Double Safety ValveUS$ 20 - 1000MOQ: 1 Piece
One.Product data:
1 Type: Duplex Spring-type Safety Valve
2 Suitable medium:air,water,steam, gas etc.
3 Suitable temperature:less than 350C
4 Nominal diameter:DN40~250(11/2"~10")
5 Standard:GB,DIN,ANSI,JIS are available
6 specification:
In order to offer a better solution for your meet.We need follow information:
*Design standard.
*Connection standard .
*Size.
*Set Pressure
*Working Pressure .
*Body material .
*Trim (Material for inside parts).
*Connection type.
*Operation type. ( Without lever or not )
*Medium.
*Temperature.
*Ambient temperature range . Corrosion considerations.
*Application Descripetion.
*Painting color.
*Label content.
| workingtemperature | A48Y-16C/25/40 Less than 350°C A48Y-16C/25/40P less than350°C | ||||||||||||||
| Suitable medium | A48Y-16C/25/40 air,water,oil A48Y-16C/25/40P corrosive gas | ||||||||||||||
| Nominal diameter | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Dimension | d0 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 300 | 350 |
| L | 100 | 115 | 120 | 135 | 160 | 170 | 205 | 205 | 255 | 300 | 350 | 370 | 500 | 500 | |
| L1 | 95 | 100 | 110 | 120 | 140 | 135 | 160 | 180 | 230 | 260 | 320 | 350 | 450 | 450 | |
| DN' | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 175 | 250 | 300 | 400 | 500 | 500 | |
Two.Related products
Patent products are the core competitiveness of enterprises. Products including butterfly valves, gate valves, ball valves, check valves, globe valves, Y type strainer, water power controlling valves and pressure regulating valves. With pressure rating ranging from 0.6Mpa to 10Mpa and port size from DN40 to DN3000. These valves can be operated manually, electrically, pneumatically, hydraulically, and elector-hydraulically, with reference to ANSI, API, DIN, BS, JPI, and JIS standards and China's GB standards.
Three.Company profile
Tianjin Nbestvalve Co., Ltd. was established in 2002, headquartered in No.21,No.1 Building, Ronghui Business Zone, Zhongguancun technology Park, Binhai New District, Tianjin, China. With the rapid development of the most dynamic Chinese Bohai Economic Rim, Our company, production, sales and manufacturing test capabilities, with independent import and export rights, is a science, industry and trade as one of the group enterprise.
Four.Aplication Area
a. Domestic sewage treatment.
b. industrial wastewater treatment.
c. industrial irrigation treatment.
Five.Packing and Freight
Six.FAQ
Q: Are you trading company or manufacture?
A: We are factory located in Tianjin, China.
Q: What's your product range?
A: We specialize in product butterfly valves, gate valves, check valves, Y type strainer, water controlling valves,motorized valves,pneumatic valves,hydraulic valves and other pipe accessories.
Q: What's execution standard?
A: ISO/ANSI/DIN/JIS/EN/GOST standard.
Q: What's your strong product?
A: Concentric butterfly valves, grooved butterfly valves, dual plate check valves.
Q: Do you provide sample? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of the freight.
Q: How long is your delivery time?
A: Generally it is 7 days if the good are in stock, or it is 20 days if the goods are not in stock, it is according to the quantity.
Q: What is your terms of payments?
A: Payment ≤10000 USD, 100% in advance. Payment ≥10000USD, 30% T/T or other ways in advance, balance before shipment.
