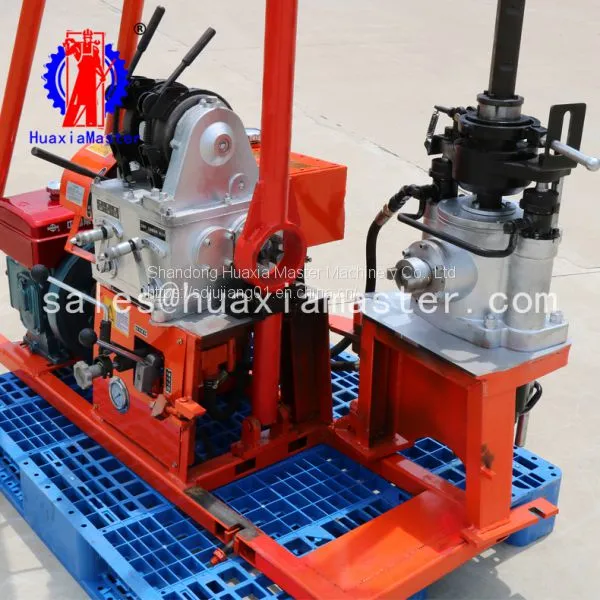

Brief introductions of YQZ-30 hydraulic mountain geophysical drilling rig
YQZ-30 hydraulic mountain geophysical drilling rig is a small portable diesel oil drilling machine. It is mainly used for prospecting and exploration, geophysical exploration,drilling engineering such as road construction and blasting hole, shallow oil, natural gas and groundwater drilling. It also can be used for engineering drilling of dam grouting and tunnel ventilation and drainage. The drilling depth of YQZ-30 hydraulic mountain geophysical drilling rig is 30 meters. The open hole diameter is 89mm, and the final hole diameter is 75mm.
2.Features of YQZ-30 hydraulic mountain geophysical drilling rig
· Oil pressure automatic feeding mechanism, high drilling efficiency.
· Using the upper ball clamp mechanism, non-stop re-chuck
· Handles are centralized, easy to operate, safe and reliable.
· Compact structure, small floor space.
· The shell of drill rig and gearbox are made of aluminum. The shell reduce the weight of the fuselage.
· Easy to decomposition and move, suitable for working in hilly terrain, mountainous areas and other complex terrain.
3. Technical parameters of YQZ-30 hydraulic mountain geophysical drilling rig
Main engine | |||
Drilling depth |
30m |
Drill pipe diameter |
42mm |
Open hole diameter |
91-110mm |
End hole diameter |
75 mm |
Drilling rig weight |
198kg(No power) |
Drilling rig dimension |
1400*600*1055mm |
Windlass | |||
Maximum hoist capacity |
4kn |
Coiling block diameter |
90mm |
Wire rope diameter |
8mm |
Maximum length |
18m |
The band type brake diameter |
200mm |
The band type brake width |
35mm |
Vertical shaft | |||
Rotating speed |
136/338/578r/min |
Stroke |
400mm |
Maximum pressure |
8kn |
Lifting power |
10kn |
Oil pump | |||
Model |
YBC20/125 |
Rated pressure |
12.5Mpa |
Rate of flow |
20ml/r |
Rated rotate speed |
1500r/min |
Power | |||
Diesel engine |
R180 |
Cooling type |
water-cooling |
Rated power |
5.67KW |
Rated rotate speed |
2600r/min |
4.Configuration list of YQZ-30 hydraulic mountain geophysical drilling rig
Item |
Specification |
Unit |
Quantity |
Hydraulic mountain water drill |
YQZ-30 |
Platform |
1 |
Drill pipe including joint |
42 |
m |
30 |
Reducing nipple joint |
57/57 |
pc |
2 |
Reducing nipple |
89*57 |
pc |
1 |
Opening pipe |
89 |
pc |
1 |
Alloy bit |
91 |
pc |
1 |
Reducing nipple |
73 |
pc |
1 |
Core barrel |
73 |
pc |
1 |
Diamond bit |
75 |
pc |
1 |
Water pump |
diesel engine power |
set |
1 |
Drill tower |
3m |
set |
1 |
Wire rope |
10mm |
m |
20 |
Rope cappel |
pc |
4 |
|
U shape ring |
pc |
1 |
|
Flat square main rod |
2m/pc |
pc |
1 |
Reducing nipple for main rod |
pc |
1 |
|
Water faucet |
pc |
1 |
|
Lifter |
pc |
1 |
|
U-fork |
57 |
pc |
1 |
Safety clamp |
57 |
pc |
1 |
Pliers |
24 |
pc |
1 |
L-wrench |
73/89 |
pc |
2 |
