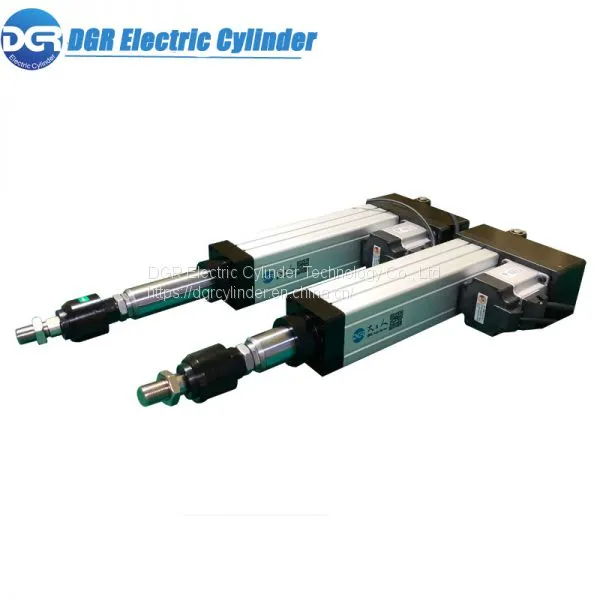

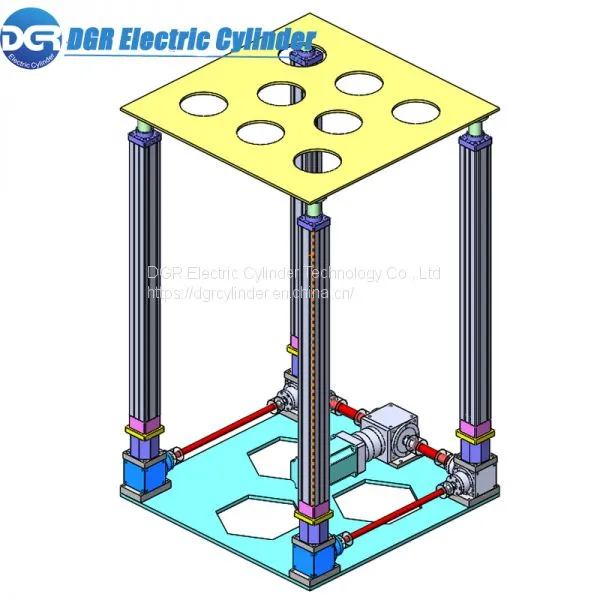

4DOF Positioning Accurate Servo Electric Lifting Linear Actuator with Remote Control for Cinema Motion 5D Platform

DGR-ST-65 Linear Lctuator for  Cinema Motion 5D Platform Model  designations:

DGRST	65	T5	L1200	S250
Standard Electric Cylinder	Bore/size	Lead T5=5mm   T10=10mm	Stroke L1200=1200mm	Rated speed S250=250mm/s
	F3	I/U	P750	i1
	Rated load F3=3KN	Motor mounting Inline mounting ：I Parallel mounting：U	Power P750=750W	Gear Ratio i1=1:1 i1.5=1.5:1 …… i100=100:1

DGRST65  Linear Lctuator for  Cinema Motion 5D Platform  Technical Data

Product Series	DGRST65
Screw lead / pitch (mm)	5	10
Max. Power of Motor (W)	750
Max. Rated Thrust (N)	3000
Max. Speed (mm/s)	250	500
Rated Driving Torque (N.m)	1. 3	2. 5
Max. Ball Screw Diameter (mm)	16	16
Rated Dynamic Load of Ball Screw (kgf)	1380	1103
Max. stroke (mm)	1200
Axial Backlash (mm)	0. 02-0. 04
Lead Error Every 300mm (mm)	0. 023
Repeatability Accuracy (mm)	0. 02

Note:

1. If you need to know the ball screw life, please contact customer service for detailed consultation;

2. The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.

3. If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;

Note: If you require beyond the specification chart above, please contact us directly, we can able to customize according to customers’ requirements on the load (up to 20 ton), speed(up to 2000mm/s) and stroke (up to 2800mm).

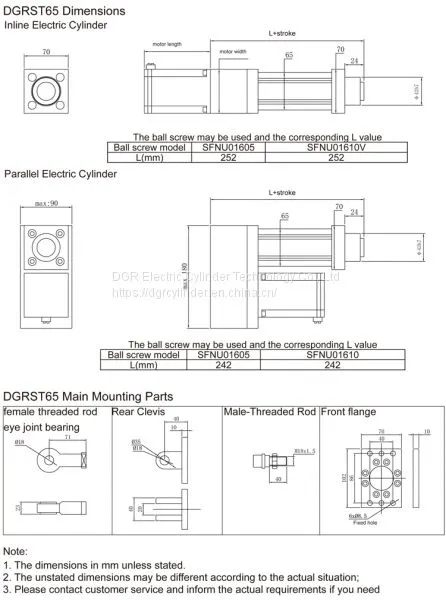

DGR-ST-65 4DOF Positioning Accurate Electric Piston Actuator Motor Selection List

Product Series	DGRST65
Flange Size of Optional Servo Motor Series (mm)	60/ 80
Flange Size of Optional Stepper Motor Series (mm)	57/ 60
Flange Size of Optional Gear Box Series (mm)	60/ 80

Note:

1.DGR electric cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda;

2. DGR electric cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS', etc;

3. The DGR electric cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo;

4. The cylinder can be equiped with a motor or gear box, and the motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information;

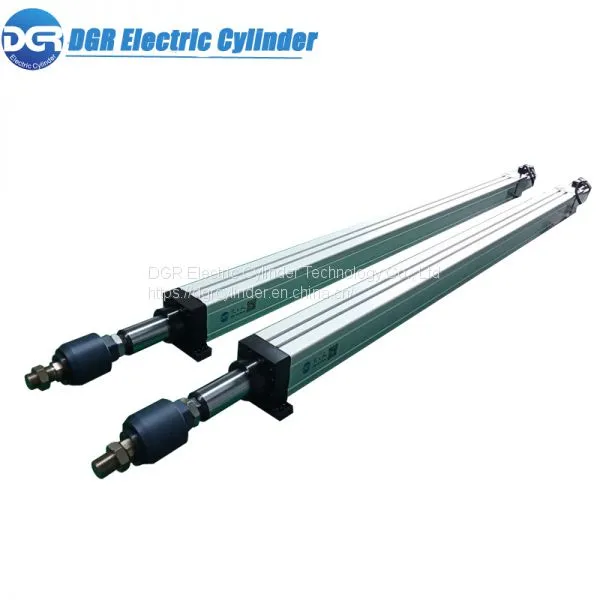

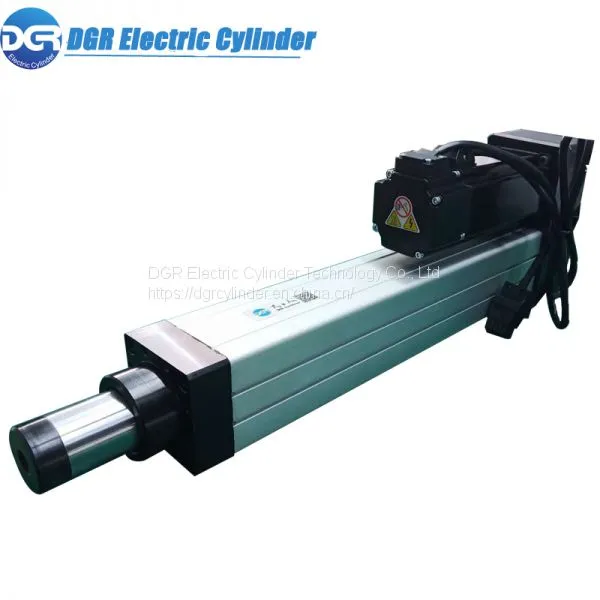

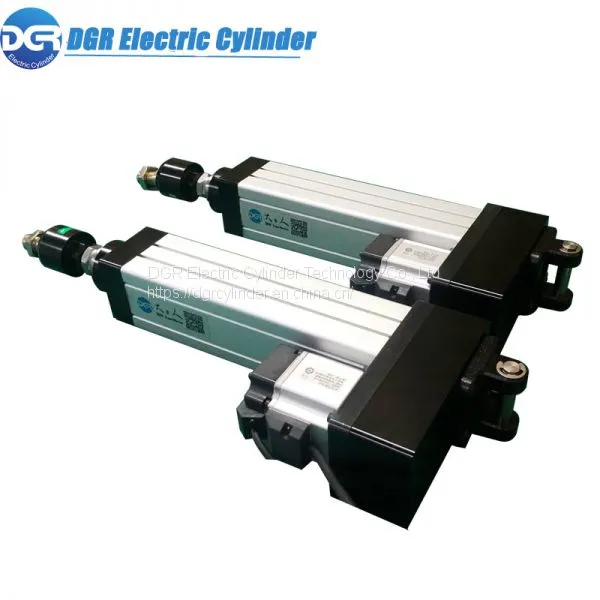

Electric Lifting Linear Actuator Products Show

Features of DGRST65 4DOF Positioning Accurate Electric Piston Actuator



High Accuracy

High precision, with servo motor, repeat positioning accuracy: ±0.01mm

High Reliability

Highly reliable, safety factor>2 ( PS: safety factor for key parts > 4), which is in compliance with metallurgical standard.

Long Life

Run over a distance of 100,000km

Careful Material Selection

1. Self-opening high-strength aluminum alloy is used as the cylinder material, with large thrust and fast speed.

2. Select sensor components of internationally famous brands .

3. Key components are made of high quality materials and processed with vacuum heat treatment or surface treatment (including: coating, azotizing, oxidation)

4. Select branded bearings and gears to achieve the best mechanical performance in mechanical structure

5. Select high-quality grease to minimize friction, which enables the drive efficiency to reach up to 90%.

Refined Design and Processing

1. The connection between the screw nut and the piston rod is rigid

2. Snap fastener will be required to locate the part in its fixed position to avoid assembly errors that affect mechanical properties.

3.All screw threads are coated with screw locking adhesive after commissioning to ensure the equipment is stable and trouble-free.

    4.Aluminum itself has anti-twist ability, no need to match the output shaft, users can directly use

Duty Cycle

Use ball screw to reduce friction while increasing service life

Complete Testing

Professional factory inspection: Appearance, speed, accuracy etc.

Excellent Service

1. Each DGR electric cylinder is backed by a lifelong tracking service to ensure it can be used normally over its life cycle. (including: handling product failure, providing spare parts and technical support)

2. DGR Electric cylinder can be custom engineered for customer’s particular application.

3.5 years’ experience in electric cylinder production.

4.All customer requirements will be responded within 12 hours

Wide Selection of Motors

A variety of AC servo motors or stepper motors for option: such as Delta, Mitsubishi, Panasonic, Yaskawa and other brands

DGR electric cylinder applications

	Entertainment    Six degrees of freedom motion platform platform widely used in a variety of analog simulation, dynamic entertainment, robot arms and joints, dynamic seats.
VR Simulations Multi-degree of freedom platforms can be applied to virtual reality motion seats, such as: VR gaming, racing simulator
	Automobile industry  Electric cylinder servo press, also known as precision servo press, its working principle is that servo motor drives high-precision ball screw for precision pressure assembly work, can be realized in the pressure assembly operation Closed-loop control of the entire process of press-fitting force and press-in depth enables precise press-fitting of online quality management.Widely used in: Automotive industry: Press-fitting of engine components (cylinder heads, liners, oil seals, etc.), press-fitting of steering gear assemblies (gears, pins, etc.), press-fitting of driveshaft assemblies, press-fitting of gearbox assemblies, brake disc assemblies Press-fitting, etc.;
3D Robotic Billboard The motor controls the motion of each unit in the 3D robotic billboard, and constructs various static and dynamic patterns through matrix elevation changes to simulate three-dimensional topography, text patterns, wave motion, and the like. The 3D robotic billboard can also be combined with projection and digital image to realize the multimedia and digitization of the matrix, making it more ornamental and dynamic.
	Automation Industry The electric cylinders are widely used in the automation industry, such as automation production line, steel continuous casting, material handling, injection molding machine, valve control, precision machine tools, pharmaceutical machinery, precision machining, mechanical lifting platform, food industry, etc
Solar Tracking Systems The solar tracking system maximizes the solar system's electricity production by moving the solar panels by electric cylinders to follow the sun throughout the day, which optimizes the angle at which your panels receive solar radiation. The electric cylinder includes: motor (DC brushless motor, stepper motor, servo motor Etc.), worm gears, push rod, sensor systems, etc.
