12HP Chiller for Cooling

12HP Chiller for Cooling thumbnail-1
12HP Chiller for Cooling thumbnail-2
12HP Chiller for Cooling thumbnail-3
12HP Chiller for Cooling thumbnail-4
12HP Chiller for Cooling photo-1
12HP Chiller for Cooling photo-2
12HP Chiller for Cooling photo-3
12HP Chiller for Cooling photo-4
US$ 2,500 - 2,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
xiecheng
Place of Origin:
China
Certification:
CE
Contact Supplier Request Quote Chat Now
Meihua Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
JIANGMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name xiecheng
Place of Origin China
Certification CE
Warranty 1year
Weight 519
Dimension(L*W*H) 1720*900*1720
Condition New
Voltage 380v/50hz/3P

CE plastic machinery air chiller for injection cooling

12HP chiller for cooling
12HP chiller for cooling 12HP chiller for cooling 12HP chiller for cooling

10hp/30kw Industrial water chiller for all kinds of factory plants

1. The water chiller is to provide cooling process to plastic moulds to improve molded products quality and cut down injection cycle time. Hence maximizes plastic molding machines productivity.

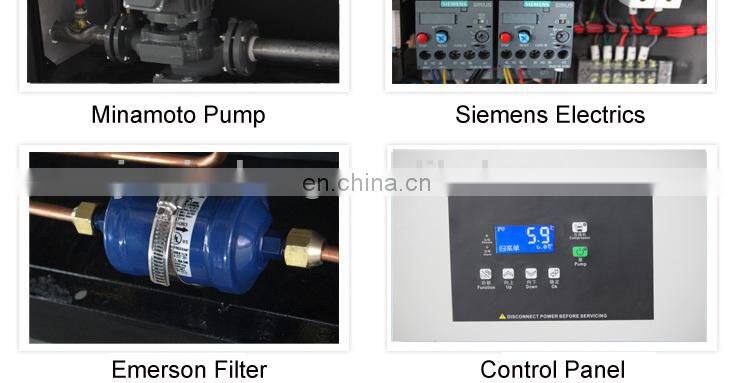

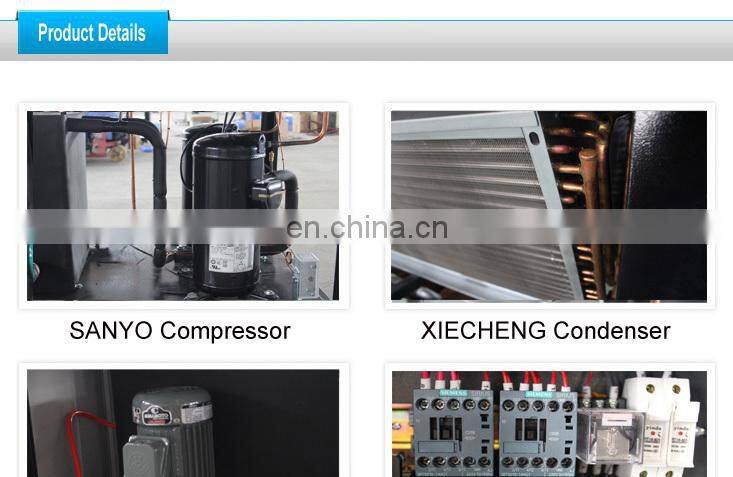

1. Installed with import compressors, highly efficient shell condenser and evaporator, excellent cooling, quiet and low electricity consumption.

2. Microprocessor control, easy to operate;

3. Unique open reservoir tank made of stainless steel, easy cleaning and maintenance;

4 Pipeline well-arranged to save energy;

5. Installed will precise electronic thermostat accurately maintains temperature within 30C~500C;

6 Installed with current overload protector, high and low pressure switch, electronic timer delay, fault display system;

7. Screen liquid crystal display of chill water out let and inlet with temperatures setting;

9. Single, double or four compressors combination unit available;

10. Industrially designed, elegant and ergonomic.

12HP chiller for cooling12HP chiller for cooling

12HP chiller for cooling12HP chiller for cooling12HP chiller for cooling

Product specification:

Model UNIT XC-LF12A
Refrigerating Capacity kw 39
Kcal/h 44505
Compressor Input Power(kw) 10
Rated Power(Hp) 6*2
Evaporator Type SHELL AND TUBE
Pipe Diameter(inch) 2"
Refrigerant Type *R407c/R134a/R410a/R22
Filling Quantity(kg) 3.5
Cooling Flow(m³/h) 5.03
Air Cooled Condenser Type Finned condenser
Fan Power(kw) 0.46*2
Water Tank Capacity(L) 75
Pump Power(kw) 1.5
Flow(L/min) 360

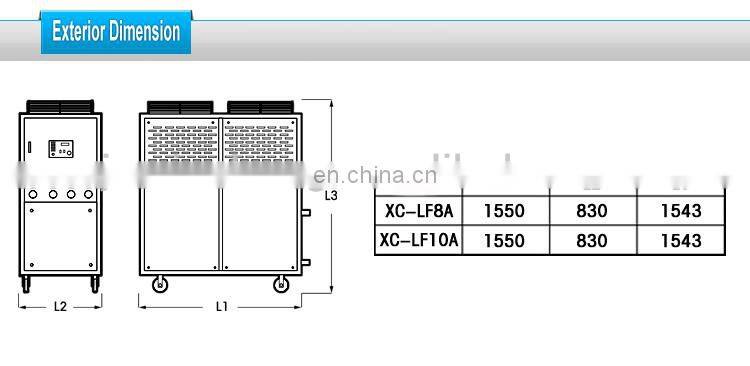

Dimension(L*W*H, mm) 1550*830*1508
Operating Weight(kg) 520
Voltage *380V/50Hz/3phase
* Customizable according to client's requirement

12HP chiller for cooling12HP chiller for cooling12HP chiller for cooling 12HP chiller for cooling12HP chiller for cooling12HP chiller for cooling

water-cooled low temperature screw-type industrial chiller/chiller price/Water cooled chiller /chiller price

Model

UNIT

XC-LF1A

XC-LF2A

XC-LF3A

XC-LF5A

XC-LF6A

XC-LF8A

XC-LF10A

Refrigerating capacity

kw

2.77

5.28

7.91

12.9

15.22

23.8

30.5

Kcal/h

2382

4541

6803

11094

13091

20468

26230

Compressor

Input power(kw)

0.89

1.77

2.8

4.66

5.2

3*2

4.5*2

Rated power(Hp)

1

2

3

5

6

4*2

5*2

Evaporator

Type

pipe coil evaporator

shell evaporator

Pipe diameter(inch)

6'

1"

2"

Refrigerant

Type

R407/134A

filling Quantity(kg)

1.6

1.8

2

2.5

4

5

Cooling flow(m³/h)

0.476

0.908

1.36

2.22

2.6

3.95

4.42

Air cooled condenser

Type

Finned condenser

Fan power(kw)

85

185

135

420

Water tank capacity(L)

20

50

70

125



Pump

power(HP)

0.37

0.75

flow(L/min)

40

60

100

Dimension(mm)

790*450*900

760*530*983

920*590*983

1380*530*1083

1380*530*1083

1650*830*1584

1650*830*1584

Operating Weight(kg)

50

73

100

175

180

310

450

voltage

380V/50Hz/3phase
