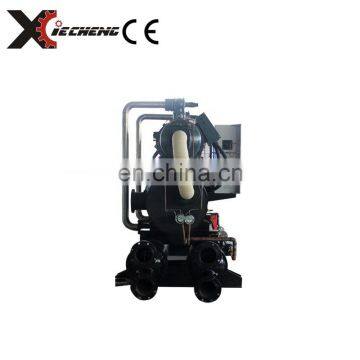

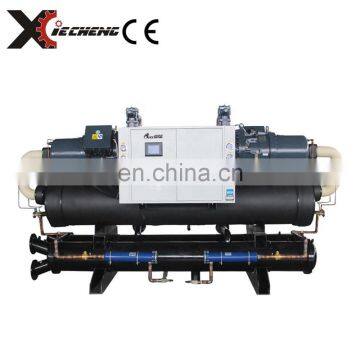

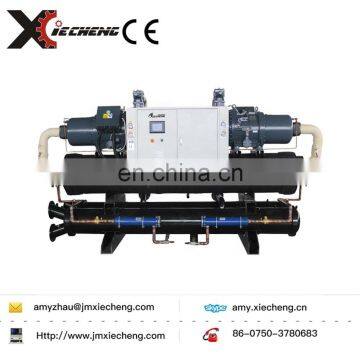

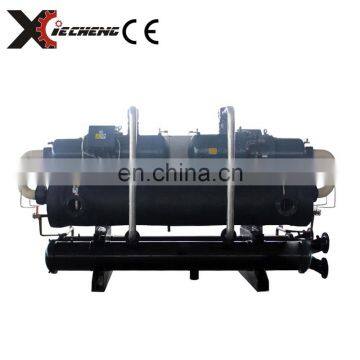

100ton Hermetic Single Screw Compressor Cascade Water Cooled Screw Style Chiller
US$ 24,000 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
XIECHENG
Place of Origin:
Guangdong, China
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
jiangmen/shenzhen/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Jiangmen New Design Box Type Water Chiller Industrial Air Cooled Scroll Chiller With 10hp CompressorUS$ 3,750 - 4,000MOQ: 1 Set -
Motor Drive Directly 14mm Screw Dia Color Masterbatch Doser MachineUS$ 1,390 - 1,480MOQ: 1
-
Independent Type Auto Loaders Automatic Hopper Feeder Vacuum Hopper LoaderUS$ 377 - 415MOQ: 1
-
Hot Sale 600kg Plastic Gravimetric Volumetric System Gravimetric Blender Machine For Plastic IndustryUS$ 8,300 - 15,900MOQ: 1 Set
-
CE Factory Price R404A/R22 3 Ton Water Chiller Auto Cooling Cooler Air ChillerUS$ 4,500 - 4,900MOQ: 1 Set
Brand Name
XIECHENG
Place of Origin
Guangdong, China
Certification
CE
Warranty
1 Year
Weight
customized
Dimension(L*W*H)
3600*765*1650mm
Voltage
3PH-380V/50HZ
100ton Hermetic Single Screw Compressor Cascade Water Cooled Screw Style Chiller
1.open type chillersopen type chillers
2.Industrial Chillers are widely used in many industries like plastic and rubber manufacturing,electronic ductions,electroplating,medical chemistry,ultrasonic cooling and printing business,etc.It could accurately provide needed temperature for modern industrial manufacturing and largely improve efficiency and product quality.Xiecheng Industrial Chillers are with simple operation,reasonable design and superior quality with more than one hundred different models,which are the best choice for modern industries.
4.Regarding to high power industrial chiller,screw type chiller is available.
5.Screw type chiller adopts screw compressor with,high effciency,low noise,durable service,reliable operation.
| Model | UNIT | XC-L30WS | XC-L40WS | XC-L50WS | XC-L60WS | XC-L80WS | XC-L100WS | XC-L120WS | XC-L150WS | XC-L180WS | XC-L240WS | XC-L280WS | XC-L320WS | XC-L360WS | XC-L440WS | XC-L500WS | XC-L560WS | XC-L640WS | XC-L720WS | |
| Refrigerating capacity | kw | 88 | 116.7 | 146.4 | 172 | 230 | 292.8 | 343 | 492 | 530 | 792 | 872 | 980 | 1198 | 1380 | 1564 | 1768 | 1960 | 2396 | |
| kcal/h | 75680 | 100362 | 125904 | 146716 | 197800 | 251808 | 295152 | 423120 | 455800 | 681120 | 749920 | 842800 | 1030280 | 1186800 | 1345040 | 1520480 | 1685600 | 2060560 | ||
| Input Power | Kw | 22 | 30.9 | 37.9 | 45.8 | 60 | 37.9x2 | 45x2 | 114 | 135 | 181 | 196 | 227 | 273 | 308 | 345 | 401 | 456 | 547 | |
| Control type | expansion valve | |||||||||||||||||||
| Refrigerant | R22(R407C) | |||||||||||||||||||
| Compressor | Type | Semi-hermetic Screw | ||||||||||||||||||
| quantity | 1 | 2 | 4 | |||||||||||||||||
| Startup mode | Y-type turn on | |||||||||||||||||||
| (% Capacity control | 0-25-50-75-100 | |||||||||||||||||||
| Power | 3PH-380V/50HZ(200V/220V/415V 50HZ/60HZ) | |||||||||||||||||||
| evaporator | Type | Shell and tube type | ||||||||||||||||||
| (m3/h)Cooling water flow | 19 | 21 | 26 | 30 | 39 | 55 | 68 | 86 | 96 | 136 | 150 | 168 | 206 | 240 | 273 | 308 | 337 | 412 | ||
| (Inch) inet and outlet pipe caliber | 3" | 3" | 3" | 3" | 4" | 4" | 5" | 5" | 6" | 6" | 6" | 6" | 8" | 8" | 10" | 10" | 10" | 10" | ||
| condenser | Type | Shell and tube | ||||||||||||||||||
| (m3/h)Cooling water flow | 21 | 26 | 33 | 40 | 45 | 69 | 85 | 108 | 122 | 170 | 186 | 220 | 252 | 294 | 334 | 372 | 416 | 506 | ||
| (Inch) inet and outlet pipe caliber | 3" | 3" | 3" | 3" | 4" | 4" | 5" | 5" | 4"x2 | 4"x2 | 5"x2 | 5"x2 | 6"x2 | 6"x2 | 6"x2 | 6"x2 | 8"x2 | 8"x2 | ||
| safety protector | high and low pressure protection,overload protection,overtemperature protection,phase sequence protection,etc. | |||||||||||||||||||
| Dimensions(L*W*H) | mm | 1980*750*1580 | 2350*750*1580 | 2550*750*1580 | 2550*985*1600 | 3600*765*1650 | 3600*765*1750 | 3850*765*1750 | 3880*875*1850 | 3910*875*1950 | 4150*1320*2150 | 4250*1320*2150 | 4350*1320*2150 | 4450*1580*2230 | 4900*1600*2350 | 4950*1760*2360 | 5010*1760*2360 | 4310*2350*2630 | 4310*2350*2750 | |
| Net Weight | KG | 750 | 850 | 950 | 1150 | 1580 | 1830 | 2080 | 2610 | 2820 | 3670 | 4230 | 4730 | 5380 | 5920 | 6450 | 6450 | 8830 | 9860 | |
| unit exchange | 1kw=860Kcal/hr 1RT=3024Kcal/hr 1Btu/hr=0.252Kcal/hr | |||||||||||||||||||
