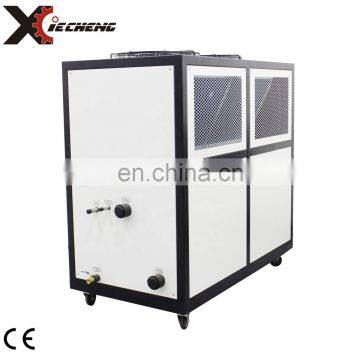

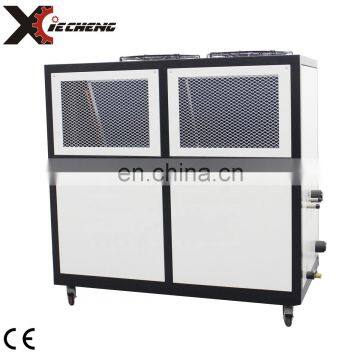

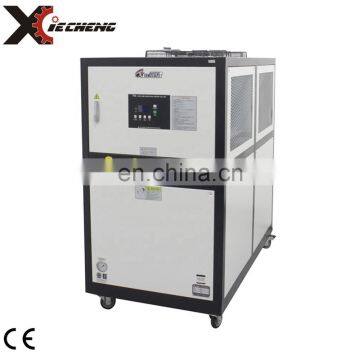

10hp Freeze Water Cooler Machine Small Water Cooling Chiller Unit Price Air Cooled Chiller Industrial Chiller
10hp Freeze Water Cooler Machine Small Water Cooling Chiller Unit Price Air Cooled Chiller Industrial Chiller
The water chiller is to provide a cooling process in plastic molding, to improve quality of molded products and shorten period of injection molding cycles. Hence maximizes productivity of plastic molding
manufacturing.
1.Famous brand new compressors ,high efficient shell condensers and evaporators – excellent cooling, quiet with low elections consumption.
2.P.I.D.Microprocessor control – easy to operate, accurately maintains temperature range from 3℃ to 50℃.
3.Special open type reservoir tank with stainless steel – rays to clean and maintain.
4.Well designed and reasonable Pipelines-ensures power supply and saves energy.
5.Current-overload protector, high-and-low pressure switches, electronic time delayer, fault display system – Safe and durable.
6.Liquid crystal display showing temperatures of outlet and inlet chill water-provides visualized and direct setting.
7.Single, double or quadruple compressors combination available – economical and efficient.
8.Industrial designed – elegant and economical with friendly human – machine connections.
Industrial Chillers are widely used in many industries like plastic and rubber manufacturing, electronic productions, electroplating ,medical chemistry, ultrasonic cooling and printing business, etc. It could accurately provide needed temperature for modern industrial manufacturing and largely improve efficiency and product quality. Xiecheng Industrial Chillers are with simple operation, reasonable design and superior quality with more than one hundred different models, which are the best choice for modern industries.
Regarding to high power industrial chiller, screw type chiller is available.
Screw type chiller adopts screw compressor with, high efficiency, low noise, durable service, reliable operation.
Model | UNIT | XC-LF3A | XC-LF5A | XC-LF6A | XC-LF8A | XC-LF10A |
Refrigerating capacity | kw | 7.91 | 12.9 | 15.22 | 23.8 | 30.5 |
Kcal/h | 6803 | 11094 | 13091 | 20468 | 26230 | |
Compressor | Input power(kw) | 2.8 | 4.66 | 5.2 | 3*2 | 4.5*2 |
Rated power(Hp) | 3 | 5 | 6 | 4*2 | 5*2 | |
Evaporator | Type | pipe coil evaporator | shell evaporator | |||
Pipe diameter(inch) | 1" | 2" | ||||
Refrigerant | Type | R407/134A | ||||
filling Quantity(kg) | 2 | 2.5 | 4 | 5 | ||
Cooling flow(m³/h) | 1.36 | 2.22 | 2.6 | 3.95 | 4.42 | |
Air cooled condenser | Type | Finned condenser | ||||
Fan power(kw) | 185 | 135 | 420 | |||
Water tank capacity(L) | 50 | 70 | 125 |
| ||
Pump | power(HP) | 0.37 | 0.75 | |||
flow(L/min) | 40 | 60 | 100 | |||
Dimension(mm) | 920*590*983 | 1380*530*1083 | 1380*530*1083 | 1650*830*1584 | 1650*830*1584 | |
Operating Weight(kg) | 100 | 175 | 180 | 310 | 450 | |
