Home > Products > other > Industrial High-Efficient Screw Air Cooling Chiller For Injection Molding Machine

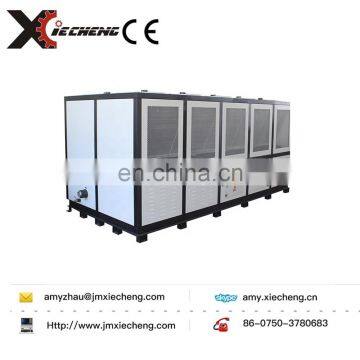

Industrial High-Efficient Screw Air Cooling Chiller For Injection Molding Machine
- 300 Set / Sets per Month
- Jiangmen/Guangzhou/Shenzhen
- T/T Credit Card
- Semi-Hermetic Chiller Equipment Air Cooled Type Injection Chiller Industry Water Chiller
- China Low Temp Water-Cooled Water Scroll Chiller For Produce Plastic
- pbt dehumidifying dryer
- Water Tank Cooling System Evaporator Chiller Fish Tank Water Chiller
- High Precision Injection Molding Machine Oil Mold Temperature Controller Machine Plastic
- Industrial PET Plastic Hopper Blower Dryer Hot Air Vertical Plastic Dryer
Product Details
Brand Name: | XIECHENG | Place of Origin: | Guangdong, China | Certification: | CE |
Warranty: | 1 year | Weight: | 3850kg | ||
Dimension(L*W*H): | 405*2100*2050 mm | Condition: | New | Voltage: | 3PH-380V/50HZ or customized |
Product Description
Industrial High-Efficient Screw Air Cooling Chiller For Injection Molding Machine
The water chiller is to provide a cooling process in plastic molding,to improve quality of molded products and shorten period of injection molding cycles.Hence maximizes productivity of plastic molding manufacturing.
1 Famous brand new compressors ,high effcient shell condensers and evaporators – excellent cooling,quiet with low elecient consumption.
2 P.I.D.Microprocessor control – easy to operate,accurately maintains temperature range from 3℃ to 50℃.
3 Special open type reservoir tank with stainless steel – rasy to clean and maintain.
4 Well designed and reasonable Pipelines-ensures power supply and saves energy.
5 Current-overload protector,high-and-low pressure switches,electronic time delayer,fault display system – Safe and durable.
6 Liquid crystal display showing temperatures of outlet and inlet chill water-provides visualized and direct setting.
7 Single,double or quadruple compressors combination available – economical and efficient.
8 Industrial designed – elegant and economical with friendly human – machine connections.
china manufacturer supplier low price water cooling chiller unit
Model | UNIT | XC-LF1A | XC-LF2A | XC-LF3A | XC-LF5A | XC-LF6A | XC-LF8A | XC-LF10A |
Refrigerating capacity | kw | 2.77 | 5.28 | 7.91 | 12.9 | 15.22 | 23.8 | 30.5 |
Kcal/h | 2382 | 4541 | 6803 | 11094 | 13091 | 20468 | 26230 | |
Compressor | Input power(kw) | 0.89 | 1.77 | 2.8 | 4.66 | 5.2 | 3*2 | 4.5*2 |
Rated power(Hp) | 1 | 2 | 3 | 5 | 6 | 4*2 | 5*2 | |
Evaporator | Type | pipe coil evaporator | shell evaporator | |||||
Pipe diameter(inch) | 6' | 1" | 2" | |||||
Refrigerant | Type | R407/134A | ||||||
filling Quantity(kg) | 1.6 | 1.8 | 2 | 2.5 | 4 | 5 | ||
Cooling flow(m³/h) | 0.476 | 0.908 | 1.36 | 2.22 | 2.6 | 3.95 | 4.42 | |
Air cooled condenser | Type | Finned condenser | ||||||
Fan power(kw) | 85 | 185 | 135 | 420 | ||||
Water tank capacity(L) | 20 | 50 | 70 | 125 | ||||
Pump | power(HP) | 0.37 | 0.75 | |||||
flow(L/min) | 40 | 60 | 100 | |||||
Dimension(mm) | 790*450*900 | 760*530*983 | 920*590*983 | 1380*530*1083 | 1380*530*1083 | 1650*830*1584 | 1650*830*1584 | |
Operating Weight(kg) | 50 | 73 | 100 | 175 | 180 | 310 | 450 | |
voltage | 380V/50Hz/3phase |
Cooling System Plastic Industry Water Chiller | XieCheng CE standard 10HP Plastic processing Industrial Air Cooled Water Chiller | high effective cooling capacity screw chiller for injection factory |
...
