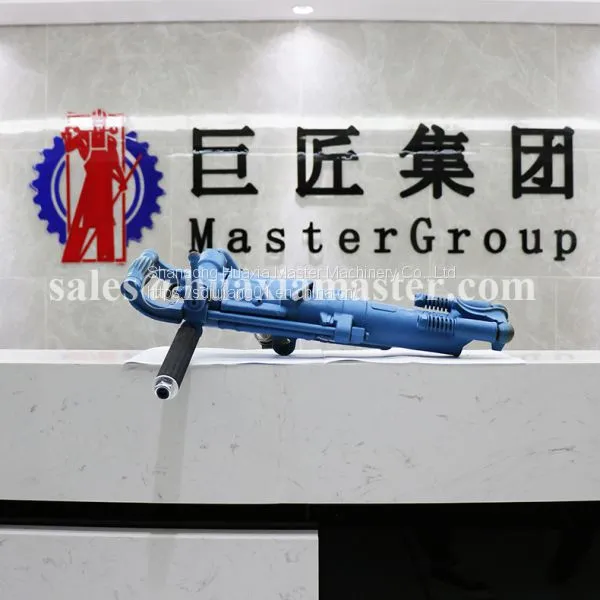

Introduction of Y10 Hand-held Pneumatic Rock Drill
Y10 portable hand-held pneumatic rock drill is a novel light rock drilling machine for mining and construction in quarrying industry and construction industry. It has low gas consumption, low noise, fast speed, high efficiency, flexible operation and good economic effect.
Y10 portable hand-held pneumatic rock drill can drill 20-24 mm holes on various rocks and buildings. Especially when performing secondary blasting on marble and granite, it will be your most handy tool.
2.Parameters of Y10 Hand-held Pneumatic Rock Drill
Weight |
10 |
kg |
Length |
458 |
mm |
Air consumption |
＜9 |
l/s |
Working pressure |
0.4-0.63 |
mpa |
Air pipe inner diameter |
13 |
mm |
Rock drilling speed |
280 |
mm/min |
Bit diameter |
20 |
mm |
Shandong Master Machinery Group specializes in supplying pneumatic rock drill，the main models are: QCZ-1, QCZ-2, Y6, Y8, Y10, Y24, Y26, YO18, Y19A, Y20LY, 7665, 7655, YT23, YT24, YT27, YT28, YT29A ,YSP45 .
