Help CenterArmature Slot Cell Paper Inserting Machine 0.5 To 0.8 Second Per Slot DC Motor
Related Products
-
Semi Automatic Commutator Mica Undercutting MachineUS$ 5000 - 50000MOQ: 1 Piece -
Tig Welding No Commutator Fusing Machine Joint For Integrated Starter Generator AssemblyUS$ 20000 - 50000MOQ: 1 Piece
-
Stator Coil Single Side Lacing Machine With Servo System WIND-100-CLUS$ 5000 - 50000MOQ: 1 Piece
-
Armature Slot Cell Paper Inserting Machine 0.5 To 0.8 Second Per Slot DC MotorUS$ 5000 - 50000MOQ: 1 Piece
-
PUR Electric Heating Insulation Hose Adhesive Box Pasting Shoe Material Pasting With 3 Slots and 4 SlotsCNY 400 - 500MOQ: 1 Piece
Machine Parameter | |
Armature O.D |
Ф20-55mm |
Length of lamination |
Max 60mm |
Shaft length |
32~250mm |
Shaft O.D |
Ф6~Ф20mm |
Slot number |
8-24 slots |
Commutator O.D |
Ф16~Ф50mm |
Speed regulation range |
0~60Hz |
Length of insulation paper |
15-60mm adjustable |
Thickness of insulation paper |
0.1 mm ~ 0.5 mm |
Type of insulation material |
DMD, DM, Polyester film(thickness 0.125mm), etc. |
Insulation paper shape |
V or edge-folding V |
Efficiency |
0.5sec - 0.8sec/per slot loadingàclampàfeeding paperàunloading |
Air source: air pressure |
4~6kg/cm2 |
Machine power |
1.0KW |
Voltage |
AC220V±10%, 50/60Hz |
Weight |
about 400Kg |
Dimension |
L910 mm x W880 mm x H1300mm |
WIND AUTOMATION | |

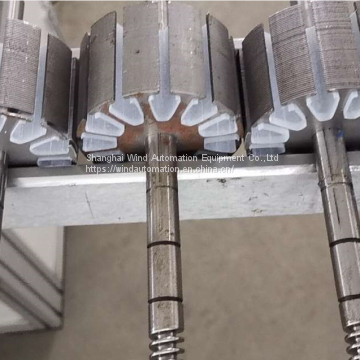

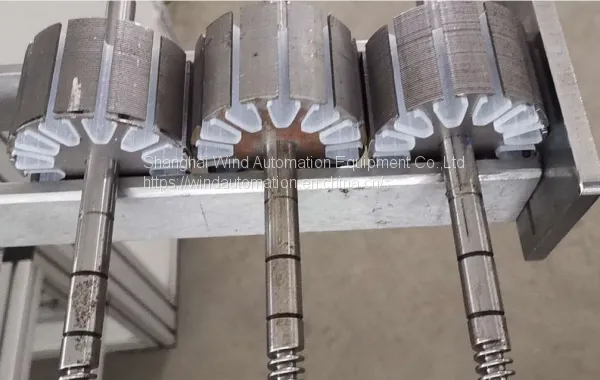

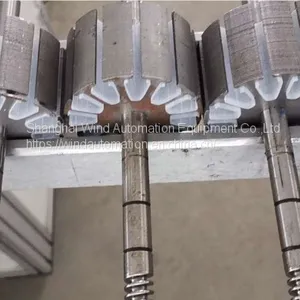

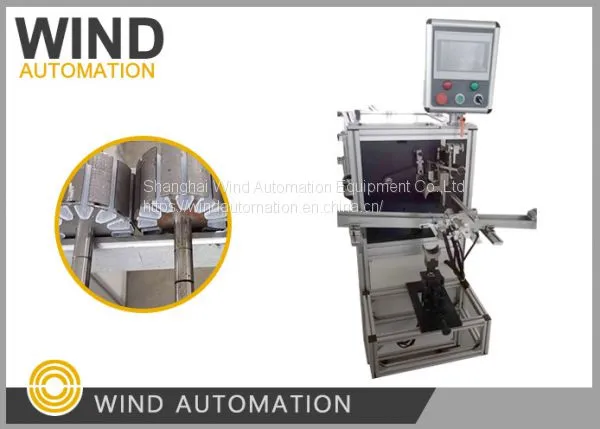

This paper inserting machine form, cut and insert the insulation paper polyester to armature's slot,the process is forming, cutting, inserting, indexing to next slot,repeat the action until all the setted armature slots are finished,one armature is well inserted,machine automatially place the next armature and repeat the job. | |
| |
