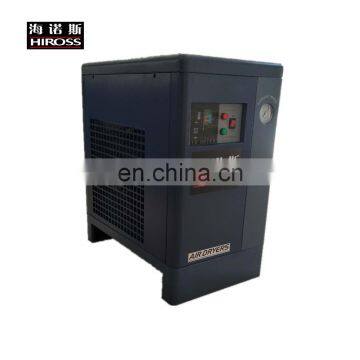

100 CFM Industrial Cold Air Compressor Dryer

100 CFM Industrial Cold Air Compressor Dryer thumbnail-1
100 CFM Industrial Cold Air Compressor Dryer thumbnail-2
100 CFM Industrial Cold Air Compressor Dryer thumbnail-3
100 CFM Industrial Cold Air Compressor Dryer photo-1
100 CFM Industrial Cold Air Compressor Dryer photo-2
100 CFM Industrial Cold Air Compressor Dryer photo-3
US$ 500 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HIROSS
Place of Origin:
Fujian, China
Certification:
ISO9001:2008
Contact Supplier Request Quote Chat Now
Hangzhou Kecheng Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HIROSS
Place of Origin Fujian, China
Certification ISO9001:2008
Warranty 1 Year
Weight 148KG
Dimension(L*W*H) 980*540*910mm
Condition New
Voltage 220V 50HZ
Power(W) 1.7KW
Product Description

Hiross 244 CFM Dark Blue Color Air Cooled Refrigerated Compressed Air Dryer


Inlet temperature : For low temp model: ≤45°C
For high temp model: ≤80°C
Environment temperature≤40℃
Refrigerant: R-22,R134a,R407C etc.
Pressure dew point : 2-10℃
Refrigerated type :Air cooling/ Water cooling
Work pressure 0.6-1.0Mpa (can be customized if your requested pressure is different)
Pressure loss ≤0.02Mpa


Hiross 244 CFM Dark Blue Color Air Cooled Refrigerated Compressed Air Dryer
5.5Air flow /Capacity
6.9Nm3/min   (244cfm)
Applicable air compressor
40Hp
Inlet /outlet diameter
G 2'' or customized
Power supply
220v/50hz
Power consumption
1.7KW
Size
980x540x910mm
Weight
125kgs
Air cooling type refrigerated air dryer (normal modes)
Mode
Capacity/air flow         Nm3/min
Applicable air compressor hp
Power consumption
Inlet /outlet diameter
Power supply
HR-10AC
1
5
0.65
G1"
220V/50HZ
HR-15AC
1.5
10
0.75
G1"
220V/50HZ
HR-23AC
2.3
15
0.85
G1"
220V/50HZ
HR-28AC
2.8
20
1
G1"
220V/50HZ
HR-38AC
3.8
30
1.35
G1.5"
220V/50HZ
HR-55AC
5.5
40
1.4
G1.5"
220V/50HZ
HR-69AC
6.9
50
1.7
G2"
220V/50HZ
HR-86AC
8.6
60
2.1
G2"
220V/50HZ
HR-110AC
11
75
2.6
G2.5"
220V/50HZ
HR-150AC
15
100
3.6
G3"
380V/50HZ
HR-180AC
18
125
4
G3"
380V/50HZ
HR-220AC
22
150
5
G3"
380V/50HZ
HR-250AC
25
175
5.3
G3"
380V/50HZ
HR-290AC
29
200
5.5
G4"
380V/50HZ
HR-350AC
35
250
6
G4"
380V/50HZ
HR-450AC
45
300
8.5
DN100
380V/50HZ
HR-550AC
55
350
9.5
DN100
380V/50HZ
HR-650AC
65
400
10.5
DN125
380V/50HZ
hpDetailed Images

Air dryer Parts

Name: heat exchanger


Hiross air dryer use heat exchanger with more quanity and thicker copper tubes



Main  parts

Name: compressor

Brand: Copeland,Panasonic
Original: USA, Japan


Compressor is the core part of air dryer, Good compressor ensure the long life of the machine.


Warehouse
Packing & Delivery
Compressed air line
Related Products
Certifications
Our Company

HIROSS INDUSTRY MACHINERY CO.,ltd have more than 10 years experience in designing,researching and developing and manufacturing the purify,environment friendly,energy saving equipment.Product various from compressed air dryer,dehumidifier,filter,chiller,to accessories,etc.

HIROSS company occupies a 1500 square meter manufacturing field,focus on advanced technology,combining with internationally processing technology to develop and manufacture a series of high performance,low vibration, quiet operation and trouble free equipment.A series of HIROSS products have passed ISO9001,CE,2008 international quality system certification.

We are pleased to welcome you from home or abroad to our company for a visit or a business talk, even if you have already had a familiar partner.

customer's visiting

customer's visiting

customer's visiting
