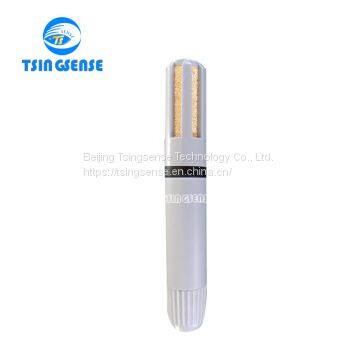

TH01 Integrated air temperature and humidity sensor is a professional sensor designed and manufactured for high-precision measurement. Mainly applied to climate research, temperature gradient measurement and other fields. A protective net made of advanced sintering process. Select an imported high precision probe. This sensor has gained good reputation both in life and stability.
Features
l High sensitivity to temperature
l High reliability, high precision, small time constant
l The top is threaded connection, easy to install
l The protective net with sintered material has better ventilation performance
l Low power consumption, conserve energy
Technical Parameters
Supply voltage | 3.3 ~ 16VDC |
Humidity measurement range | 0 ~ 100%RH |
Temperature measurement range | -40℃ ~ +60℃ |
Humidity measurement resolution | 1% |
Temperature measurement resolution | ±0.1℃ |
Humidity measurement precision | ±2% |
Temperature measurement precision | ±0.3℃ |
Repeatability | 0.05℃ |
Long-term stability | 0.1℃/year |
Output signal | RS485(RS232) |
Circuit working range | -50℃~100℃/0~100%RH |
Power consumption | <1mA |
Cable length | 2m/5m/10m |

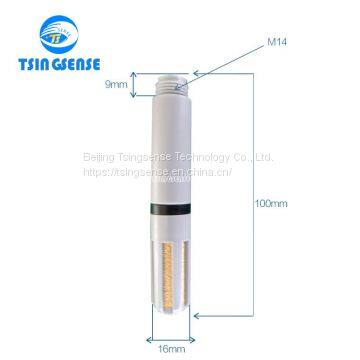

Sensor length | 100mm |
Sensor diameter | 16mm |
Weight | About 18g |
Packing list
TH01 sensor 1 unit
Instructions 1 copy
Certificate 1 copy
Packing list 1 copy
FAQ for TH01 sensor
Q:Can I buy a shell separately?
A:Yes, you can purchase the sensor or you can purchase the sensor housing separately.
Q:What is the transmission mode of the product?
A:Its transmission is RS485.
Company information
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don't offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends' visits.
