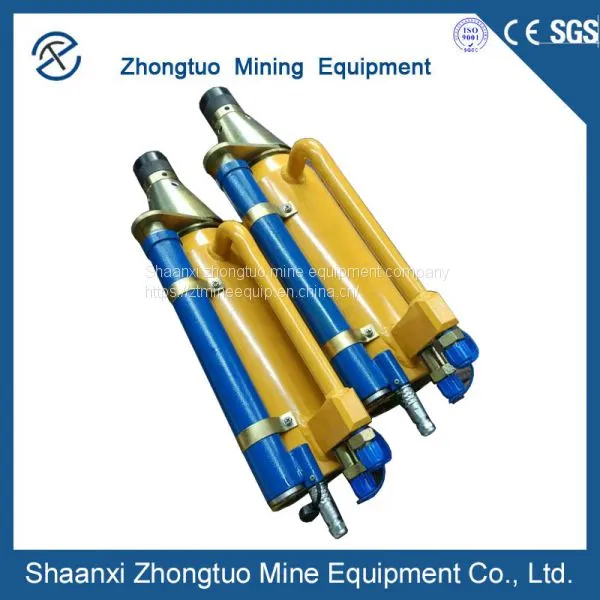

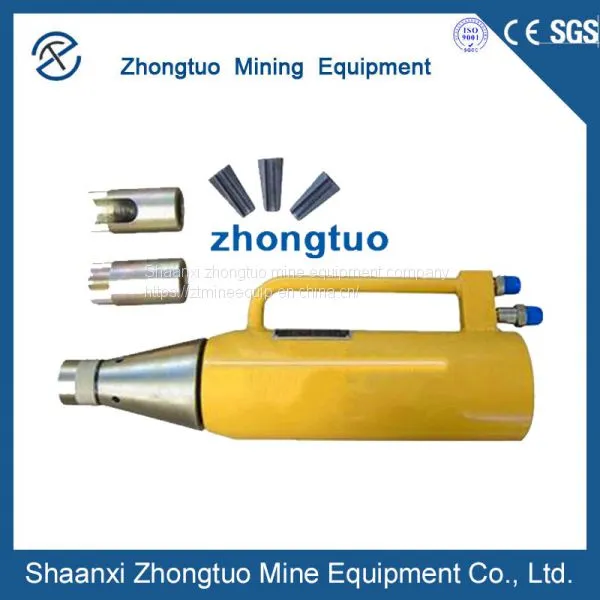

Description of Mono Strand Jack:
1. Model: QYC250(25 tons)
2. Capacity: 24 tons and 27 tons, Tension Journey: 200mm, Tension Cylinnder Area: 4418mm², Weight: 24kg, Size: 108x510mm.
3. Usage: For stressing single strand, such as unbonded monostrand anchor system and flat anchor system.
4. For PC Strand Diameter: 9.53mm, 12.7mm, 15.24mm, for PC Steel Wire Diameter: 5mm, 7mm, 9mm.
5. Accessories: Removing Anchor Device, Limited Board, Seal Kits, Spare Wedges.

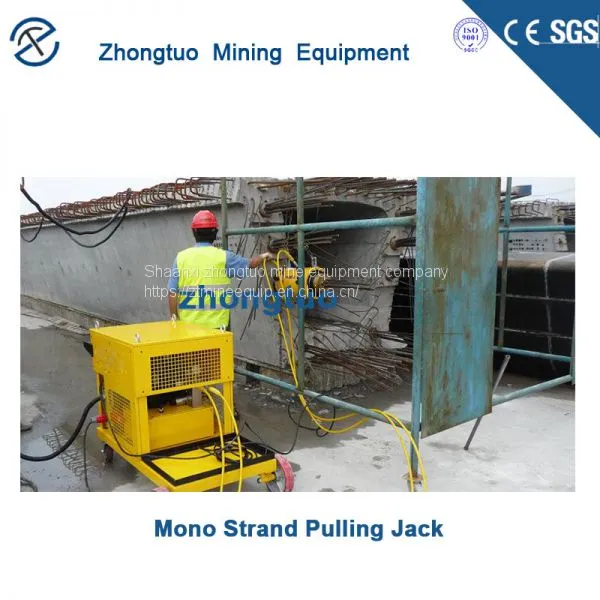

Application of Mono strand jack:
1). For Buildings: Housing, Commercial Buldings, High Rise Buildings.
2). For Municipal Engineering: Railway, Highway, Over Head Fast Speed Way, Metro Way, High-speed Railway, etc.
3). For Projects: Mining, Piling, Foundation, Slope and Rock Reinforcement, Hydropower Station, Anchoring Engineers, Water Conservancy Project, Oil or Gas Tank, etc.
Our advantage:
1. Anchor System: unbonded monostrand anchor system, multistrands anchor system, flat anchor system, arch type flat anchor, anchor barrel and wedges, ground anchor, rock and soil anchor, anchor wedges, anchor bearing plate, spiral reinforcing rings.
2. PC Strand System: unbonded pc strand, bonded pc strand, 12.7mm prestressed cable, 15.24mm prestressed strand, epoxy coated pc strand,galvanized pc strand, 6mm, 7mm, 9mm pc steel wire.
3. Duct System: galvanized metal duct, HDPE plastic duct, curved type galvanized metal duct, flat duct, corrugated pipe.
4. Heavy equipment: bridge girder launching machine, drilling rig, bridge girder transporter.
