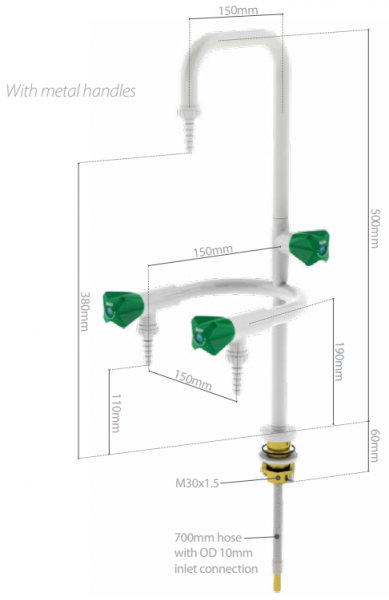

Broen three valve bench mounted fittings
S P E C I F I C AT I O N S

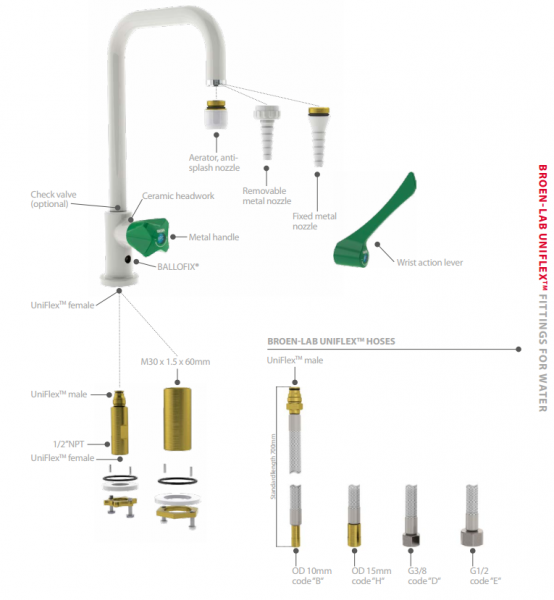

The fitting is delivered with an integrated BALLOFIX® ball valve.
Handle: Metal, BROEN-LAB POLYCOAT powder coated
with media indication according to EN13792
Spout: Full swivel action
Hose nozzle: Removable metal
Headwork: Ceramic
Opening/closing function: 180° (wrist action lever: 90°)
Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 3 kg
M AT E R I A L S W I T H M E D I A C O N TA C T
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al
2O3 96%
Solder: DIN L-Ag55:Sn
O R D E R I N G I N F O R M AT I O N
For standard configuration please refer to the item
numbers below.
Other options:
- aerator
- flow restrictor (5 l/min)
- fixed hose nozzle
- integrated non-return valve
- alternative hose inlet connection / without a hose
- other inlet options (type, length)
- national approvals
- WPH (Water Potable Hot)
- WNH (Water Non-Potable Hot)
