large tricycle tractor drilling rig machine/wheeled water well drilling machine/easy move for sale
- 20 Set / Sets per Month
- Qingdao
- T/T L/C
You May Like
-
Supply Geological exploration backpack diamond core sample drilling rig for sale
-
wholesale from hauxiamaster high technology strong power portable backpack core rock drill rig
-
QZ-2A Lightweight drilling rig/three-phase electric portable sampling drilling rig/Geological prospecting rigs
-
QZ-2CS 30m geology exploration drilling machine/gasoline power light sampling drill rig for sale
-
huaxia master supply Full Hydraulic Tunnel Drilling Rig ZDY-650 Machine for Coal Mine geology exploration
-
China made with imported spare parts ZDY-1250 full hydraulic tunnel jumbo drill rig ,underground drilling rig
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | XYX-44A | Type | Core Drilling Rig | |
| Certification | iso9001 | After-sales Service Provided | Overseas third-party support available | |
| Warranty | 6months | Weight | 1200KG | |
| Dimension(L*W*H) | 3050*1100*1920 mm | Power Type | Diesel | |
| Usage | Ore | Condition | New | |
| Power(W) | 81KW |
Product Description

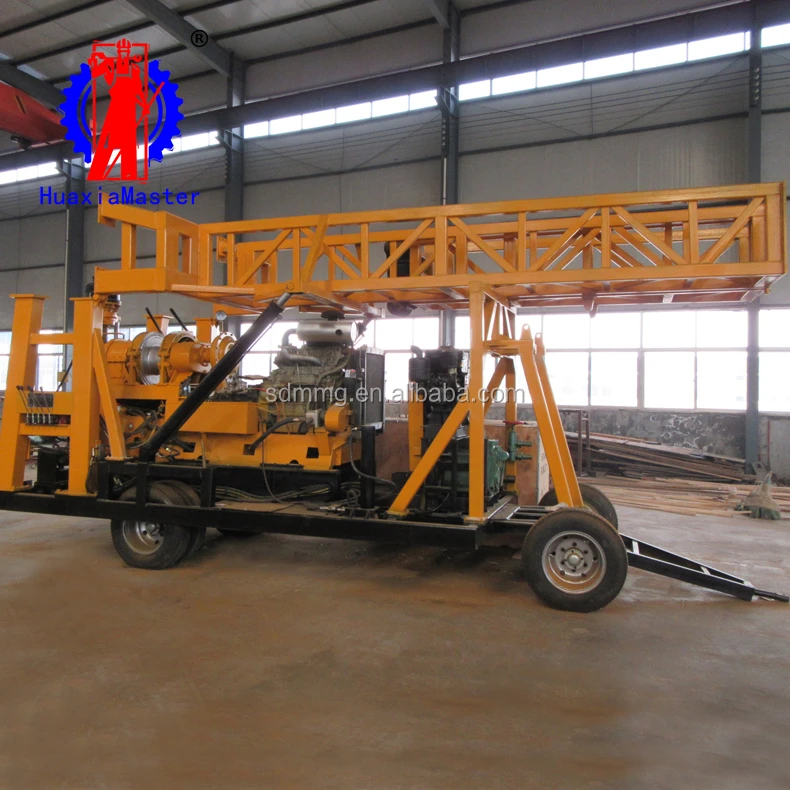

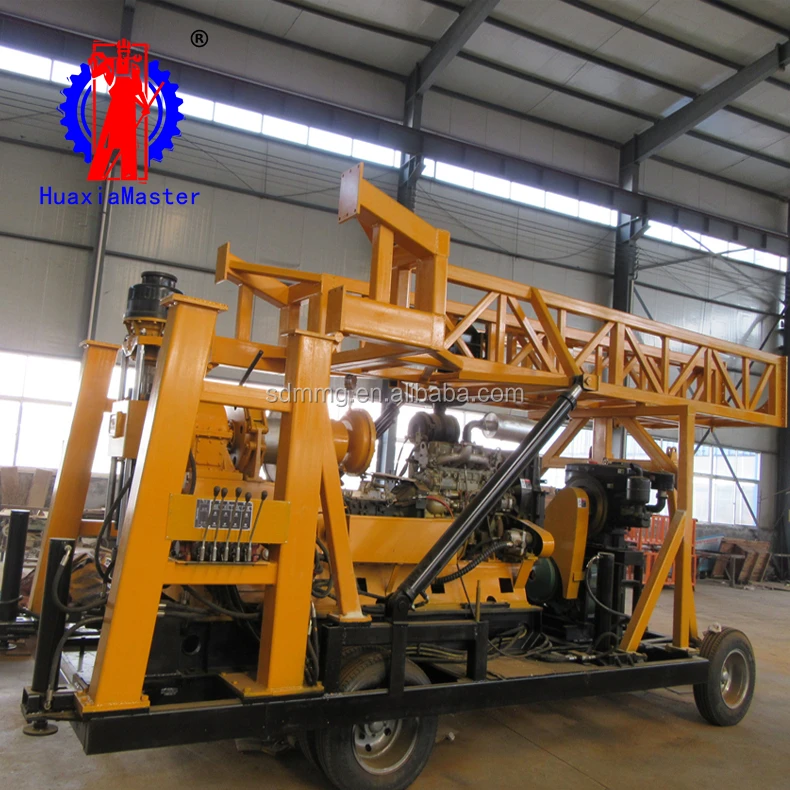

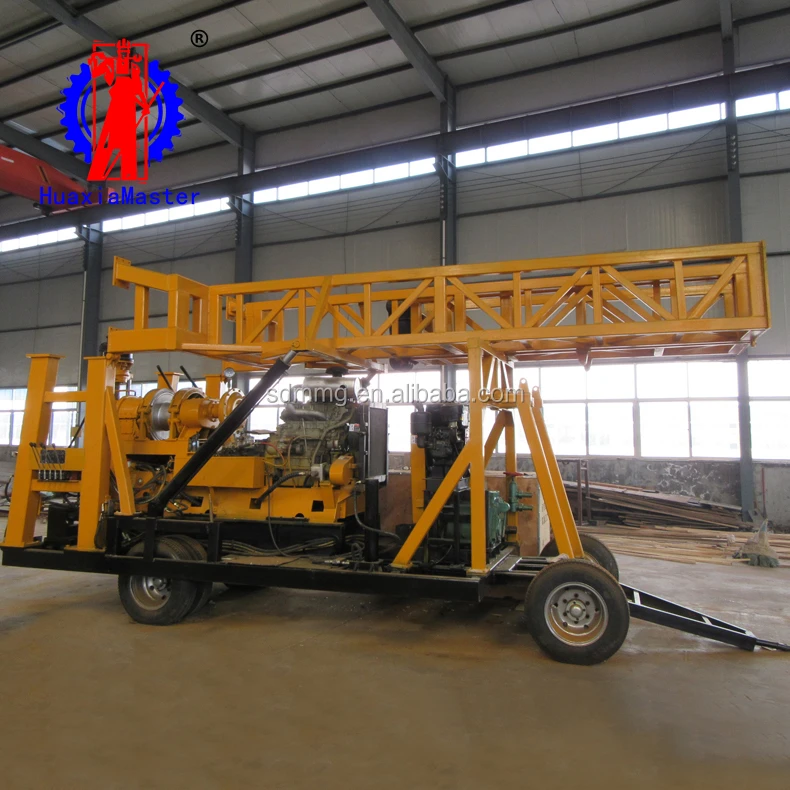

XYX-44A wheeled hydraulic core drilling rig
1. Characteristics of XYX-44A wheeled hydraulic core drilling rig
XY-44A wheeled hydrulic core drilling rig is a multi-purpose spindle diamond core drilling rig suitable for high-speed medium and deep borehole drilling in complex rock formation. HuaxiaMaster core drilling rigs covers all the main foundation and drilling technologies with a range of models whose characteristics, capability and performance find application in every operating condition.
2. Applications of XYX-44A wheeled hydraulic core drilling rig
· Core drilling rig
· Engineering geology exploration,
· Hydrology and core drilling
· Large diameter foundation piles construction
3. Parameters of XYX-44A wheeled hydraulic core drilling rig
XYX-44A wheeled hydraulic core drilling rig | |
Drilling depth | 600-1400m |
Max open hole caliber
| 300mm |
End hole caliber | 75mm |
Drilling rod diameter | 60mm |
Drilling angle | 90-65 |
Drill rig moving stroke | 450mm |
Spindle | |
Spindle speed ( Diesel Engine)
| Forward 60 97 169 187 276 301 284 487 521 847 1180 1490r/min |
Reverse 65 201r/min | |
Spindle speed ( Electric Motor) | Forward 50 81 141 155 230 251 320 406 434 706 984 1247r/min |
Reverse 54 167r/min | |
Spindle stroke
| 600mm |
Spindle max. pressure force | 90kn |
Spindle inner diameter | 96mm |
Lifting capacity | 120kn |
Main hoist | |
Max.single line lifting capacity
| 45kn |
Max.single line lifting speed | 0-45m/s |
Wire rope caliber | 17.5-18.5mm |
Hoist capacity of wire line | 90-110m |
Roller diameter | 140mm |
Wirerope diameter
| 6mm |
Wire rope length | 450m |
Mud pump | |
Type | BW-250 |
Displacement | 250 l/min |
Work pressure | 80kg/cm² |
Water inlet pipe diameter | 75 mm |
Water outlet pipe diameter
| 50 mm |
Power | |
Diesel engine | YC4E135-1 81KW |
Electric motor | Y225S-4 37KW |
