Air to Air Exchage Core

Detail of core: crossflow paper heat exchanger core

1.Heat exchanger air to air core

2.No cross contamination paper

3.Fibrous and ABS framework

4.Efficiency 60-70%

5.plate distance :2.2-2.5mm

6. angle : 90 degree

7. air flow: cross flow

Introduction:

paper total ventilation Core is made of special fibrous paper, which have high moisture permeability, anti-rends, anti-mildew features;with ABS framework, which is not easy to break, long service time, pro-environment;with galvanized sheet cover plate and plastic handle.

Working principle:

  two air streams are forced cross enter into the heat exchanger, temperature and humidity exchange from the paper, so as to recover energy and achieve the energy saving

Features:

1.Made of special fibrous paper, with high moisture permeability, good air-tightness, anti-rends, aging resistance, anti-mildew

2.ABS framework, beautiful, not easy to break, long service time, pro-environment, good impermeability,ensure the intensity and tightness of structure, reduce back flow

3.Rectangular channel, reasonable plate distance,less interior brace,small on-way resistance, less air loss, ensured the maximum heat exchanger area, achieved to maximum efficiency

4.No moving parts, and low maintenance cost

5.Compact structure, small volume, suitable for various occasions

6.Can use the vacuum cleaner purify the dust and foreign bodies on the devices, easy to use andmaintenance.

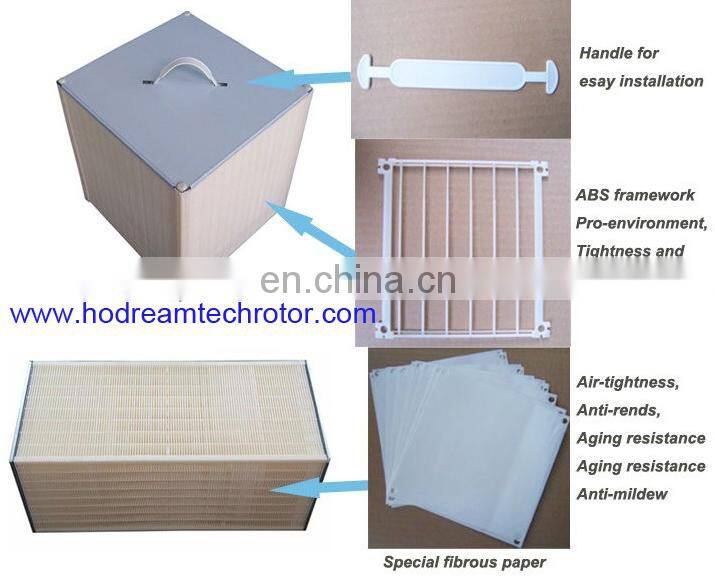

Detail of paper core:

Model range:

Remark:Except the above fixed specifications,we also can provide combined models,aimed to satisfy different demand

Applied range:

heat ventilation core is the major part of energy recovery ventilator(KRV), for air volumes up to 30,000 m3/h, include the household and commercial ventilations. The heat exchanger controlled the ventilation, recover the heat energy and moisture in winter, the cold energy and moisture in summer, not only save the energy but also give room for fresh air.

Package
