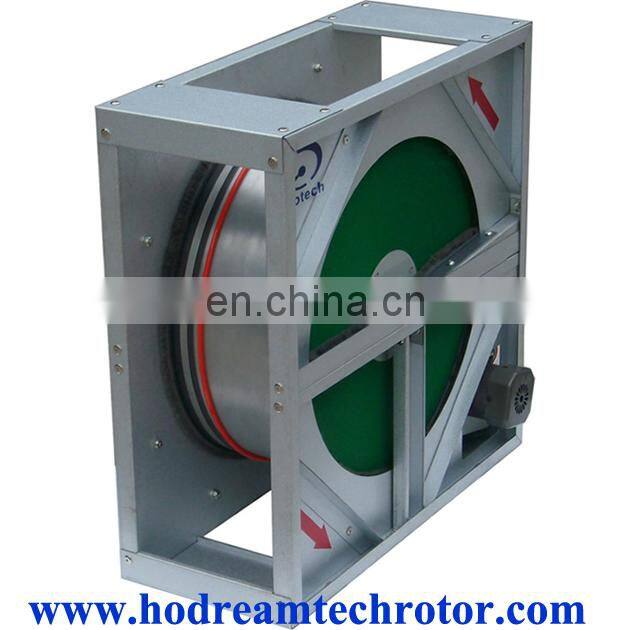

Sensible Heat Recovery Wheel
US$ 750 - 90,000
/ Piece
1 Piece(Min. Order)
- Shenzhen or Foshan or Shanghai
- T/T Credit Card
You May Like
-
Air to Air Heat Exchanger
-
Multi Functional Mixed Rotary Wheel Heat Recovery Ventilator
-
3A Molecular Sieve Coating Aluminum Low Cross Contamination Heatrotary Recuperator
-
Energy Recovery Ventilator
-
Low Leakage 3A Coating Heat Recovery Thermal Wheel
-
Total Heat & Sensible Heat Self-clean Heat Recovery Wheel
Product Details
| Brand Name | HODREAM & ECOTECH | Model Number | heat recovery wheel | |
| Certification | CCC, CE, ROHS | After-sales Service Provided | No overseas service provided | |
| Warranty | one to two years | Weight | 5-800KGS | |
| Dimension(L*W*H) | L*W*H | Condition | New | |
| Voltage | 380V | Power(W) | 80-1300 |
Product Description
Description,
1. Welded spoke structure maintains tolerance
2. Low cost for industrial and commercial applications
3. One to three Week lead time – Industry’s quickest delivery
4. Standard sizes to 5 meter diameter
5. Standard depth of 100 200mm 300mm and 400mm
6. flute height of 0.30-0.75.mm offers high capacity
7. Available in non standard sizes

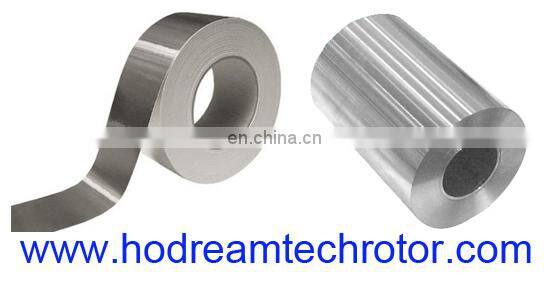

Aluminum foil, our thinnest foil is only 2.9dmm, it can accelerate thermal conversion
honeycomb cell height can be selected from 0.30-0.75mm, 0.30mm very small height, it can improve high heat exchange rate.
Specifications and dimensions
| Model | Rotor diameter(mm) | Wheel length(mm) | Wheel width(mm) | Wheel height(mm) | Volt./Hz | Power(Kw) |
| HD-HRW-500 | 520 | 700 | 295 | 700 | 380/50 | 90 |
HD-HRW-600 | 620 | 800 | 295 | 800 | 380/50 | 90 |
| HD-HRW-700 | 720 | 850 | 295 | 850 | 380/50 | 90 |
| HD-HRW-800 | 820 | 950 | 295 | 950 | 380/50 | 90 |
| HD-HRW-900 | 920 | 1030 | 295 | 1030 | 380/50 | 90 |
| HD-HRW-1000 | 1020 | 1130 | 295 | 1130 | 380/50 | 90 |
| HD-HRW-1100 | 1120 | 1230 | 295 | 1230 | 380/50 | 90 |
| HD-HRW-1200 | 1220 | 1330 | 295 | 1330 | 380/50 | 180 |
| HD-HRW-1300 | 1320 | 1430 | 295 | 1430 | 380/50 | 180 |
| HD-HRW-1400 | 1420 | 1530 | 295 | 1530 | 380/50 | 180 |
| HD-HRW-1500 | 1520 | 1630 | 295 | 1630 | 380/50 | 180 |
| HD-HRW-1600 | 1620 | 1730 | 325 | 1730 | 380/50 | 180 |
| HD-HRW-1700 | 1720 | 1830 | 325 | 1830 | 380/50 | 250 |
| HD-HRW-1800 | 1820 | 1930 | 325 | 1930 | 380/50 | 250 |
| HD-HRW-1900 | 1920 | 2030 | 325 | 2030 | 380/50 | 250 |
| HD-HRW-2000 | 2020 | 2130 | 325 | 2130 | 380/50 | 250 |
| HD-HRW-2200 | 2225 | 2400 | 460 | 2400 | 380/50 | 370 |
| HD-HRW-2400 | 2425 | 2600 | 460 | 2600 | 380/50 | 370 |
| HD-HRW-2600 | 2625 | 2800 | 460 | 2800 | 380/50 | 370 |
| HD-HRW-2800 | 2825 | 3000 | 460 | 3000 | 380/50 | 370 |
| HD-HRW-3000 | 3025 | 3200 | 460 | 3200 | 380/50 | 550 |
| HD-HRW-3200 | 3225 | 3400 | 514 | 3400 | 380/50 | 550 |
| HD-HRW-3400 | 3425 | 3600 | 514 | 3600 | 380/50 | 550 |
| HD-HRW-3600 | 3625 | 3800 | 514 | 3800 | 380/50 | 550 |
| HD-HRW-3800 | 3825 | 4000 | 514 | 4000 | 380/50 | 550 |
| HD-HRW-4000 | 4025 | 4200 | 514 | 4200 | 380/50 | 750 |
| HD-HRW-4200 | 4225 | 4400 | 514 | 4400 | 380/50 | 750 |
| HD-HRW-4600 | 4625 | 4800 | 514 | 4800 | 380/50 | 1100 |
| HD-HRW-4800 | 4825 | 5000 | 514 | 5000 | 380/50 | 1100 |
| HD-HRW-5000 | 5025 | 5200 | 514 | 5200 | 380/50 | 1100 |
Different wheel frame material for selection, stainless steel, iron, Aluminum alloy
Applications
Rotary heat exchanger can built in air handling unit(AHU)as a main part of the heat recovery section. Usually side panel of the exchanger casing is unnecessary, except that bypass has been set in AHU.
