Sensible Type Cross-counter Flow Hydrophilic Aluminium Foil Plate Heat Exchanger
- Shenzhen
- T/T Credit Card
You May Like
-
Sensible Heat Type Plate Hydrophilic Aluminium Foil Moisture Proof Heat Exchanger
-
Large Air Volume Plate Type Aluminum Material Latent Heat Exchanger
-
Industrial High Efficiency 0.13mm Thick Aluminum Foils Hvac Heat Exchanger
-
Low Air Leakage Cross Counter Flow Hydrophilic Aluminium Foil House Heat Exchanger
-
Long Lifespan High Exchange Rate Antiseptic Hydrophilic Aluminium Foil Home Heat Exchanger
-
Industrial Sensible Heat Aluminum Double Side Pressing Heat Regenerator
Product Details
| Brand Name | HODREAM | Place of Origin | Guangdong, China | |
| Certification | CE, ROHS | |||
| Warranty | one to two years | Weight | 5-600kgs | |
| Dimension(L*W*H) | L*W*H | Condition | New | |
| Voltage | 110V/220V/380V/460V/600V |
Product Description

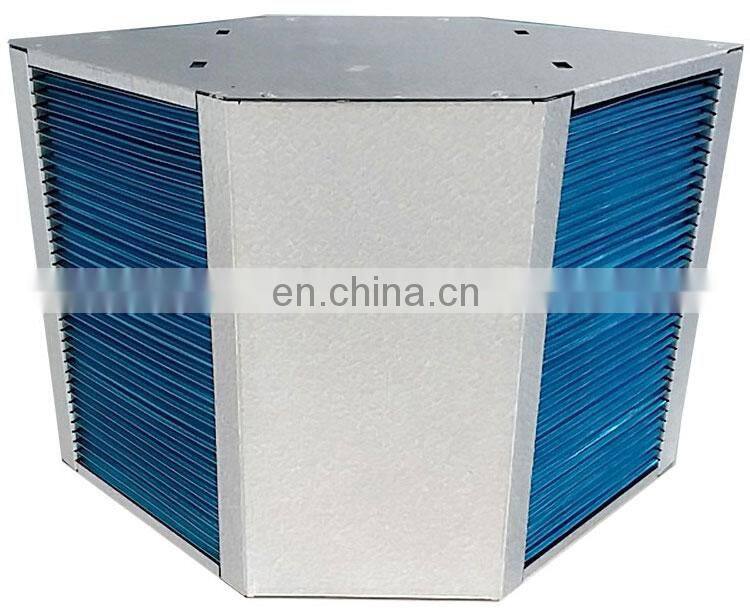

sensible type cross-counter flow hydrophilic aluminium foil plate heat exchanger

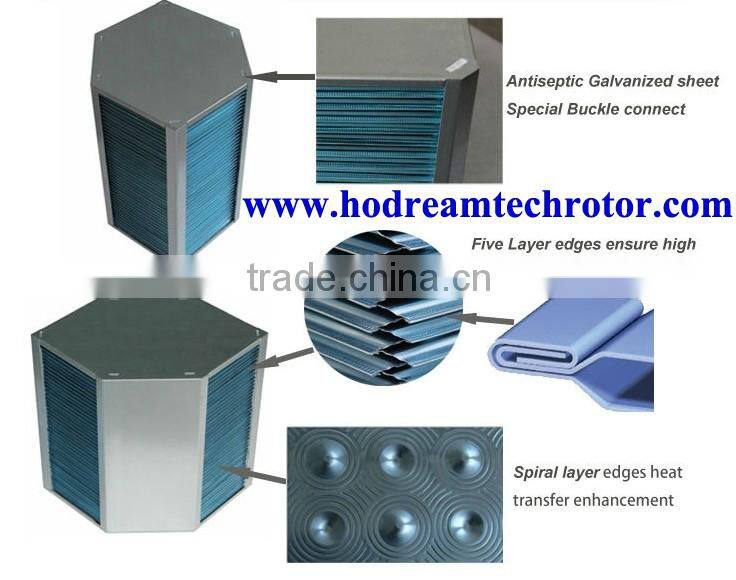

Plate Heat Exchanger Main Features
1)Sensible heat recovery core
2) total separation of fresh air & exhaust air streams
3) heat recovery efficiency up to 85%
4) 2-side press shaping
5) double folded edge
6) completely joint sealing.
7) adopted high quality corrosion resistant hydrophilic aluminum foil as heat conductor processed by spececial technics, high efficiency, easy to maintain and long service time.
8) no running components and low maintenance cost.
9) compact structure, different airflow and suitable for various occasions.
Plate Heat Exchanger Introduction
The air conditioner core is made of anti-corrosive hydrophilic aluminum foil and galvanized sheet framework, process by special technology, with high heat transfer efficiency, also easy to maintain and have long service time.

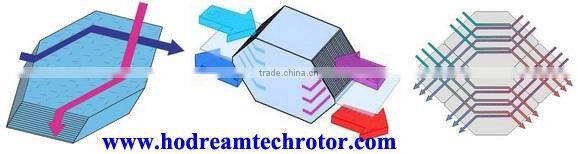

Plate Heat Exchanger Working principle
The cross & counter flow heat exchanger, for its two air streams, one part them is cross flow, and other part is counter flow, combined the working methods both cross flow and counter flow heat exchanger heat, achieve more higher heat efficiency.

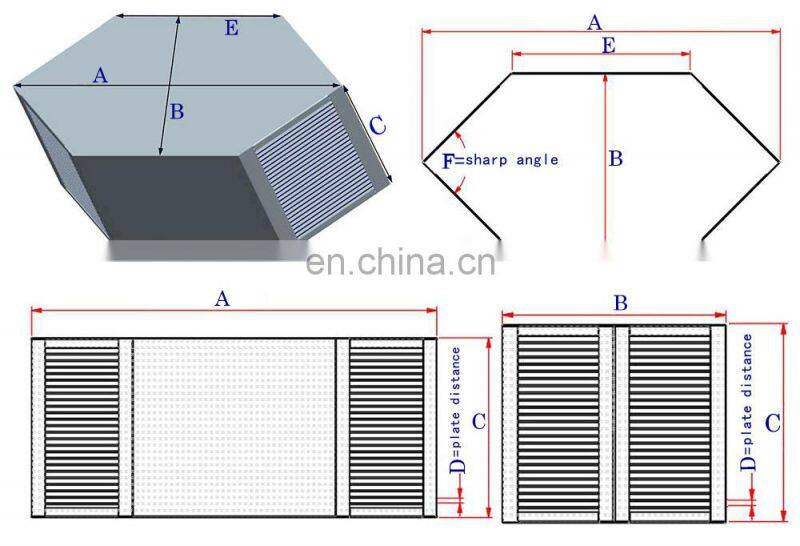

Plate Heat Exchanger Specification
| A | B | C | D |
| unit (mm) | unit (mm) | unit (mm) | unit (mm) |
| according to clients' request | according to clients' request | according to clients' request | 2~8 |
Main Sizes of Plate Heat Exchanger

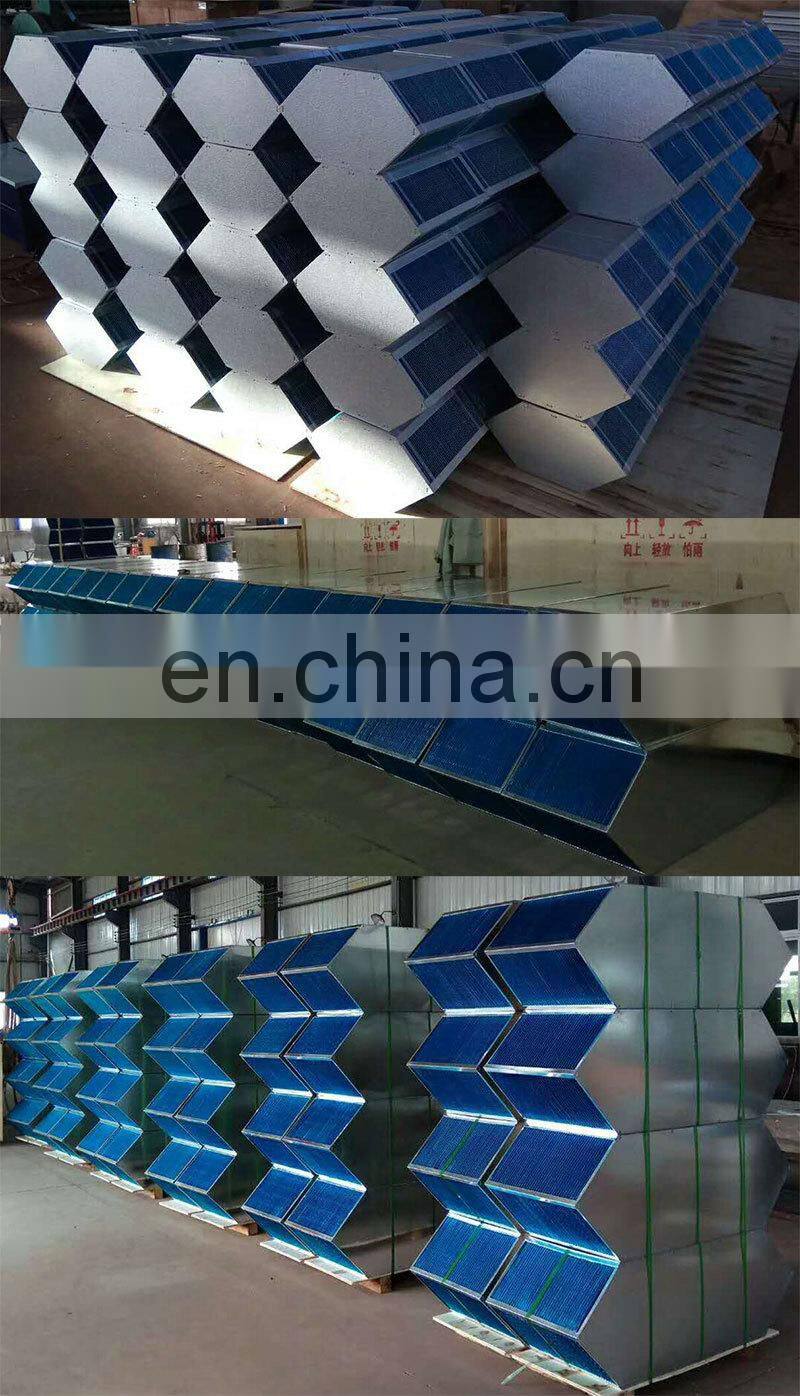

Plate Heat Exchanger Workshop
Plate Heat Exchanger Package
Plate Heat Exchanger Application
The cross & counter flow heat exchanger is the major part of heat recovery ventilator. The heat exchanger controlled the ventilation, recover the heat energy in winter and cold energy in summer, not only save the energy but also give room for fresh air.
