ChinaHome > Products > Impact Tester > Impact Resistance of Aluminum Coating Impact Testing Machine Plastic Film Pendulum Impact Tester

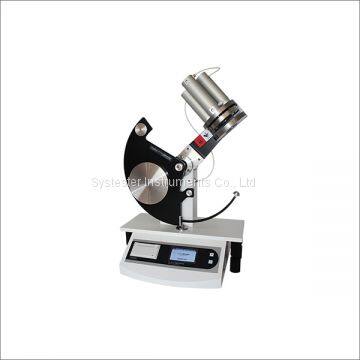

Impact Resistance of Aluminum Coating Impact Testing Machine Plastic Film Pendulum Impact Tester
- Jinan
- T/T L/C
- 8 days
You May Like
-
Flexible Package Sealing Cup Sealing Heat Sealing Parameters of Packaging Materials ASTM
-
Oxygen Permeability Testing Machine Gas Transmittance Rate LLDEP Film Flexible Package Lab Tester
-
Free Falling Dart Impact Testing Machine Plastic Film Impact Test Method A Method B ASTM
-
Water Vapor Permeability Testing Machine One-button Test ASTM E96 Packaging Transmittance Rate Lab Test
-
Auto Peeling Force Tester Micro Peeling Testing Machine Laminated Film Adhesion Lab Test ASTM
-
Shear Adhesion Testing Machine With Oven High Temperature 200℃ Package Tape Laminated Film Adhesive Force
Product Details
| Place of Origin | China | Model Number | PIT-1701 | |
| Power | Electronic | Usage | Auto Testing Machine |
Product Description
Test Instrument for Impact Resistance of Aluminum Coating Impact Testing Machine
Product Details
Application:
FIT-1701 Pendulum Impact Tester is professionally applicable to the determination of resistance to impact-puncture penetration of films, sheets, composite films, aluminum foils and other materials.
Test Instrument for Impact Resistance of Aluminum Coating Impact Testing Machine
Features:
1. Embedded system control
2. Touch screen operation
3. TFT screen display results
4. Patented technology and easy to operate.
5. Specimen pneumatic clamp
6. Pendulum pneumatic lock and release
7. Pendulum capacity easy to change
8. Balance auxiliary system
9. Statistic calculation: Max, Min, Mean and standard deviation
10. Micro-printer prints mini-report
11. RS-232 standard communication port.
12. Support DSM system
Test Instrument for Impact Resistance of Aluminum Coating Impact Testing Machine
Technical Indexes:
| Impact capacity | 1J, 2J, 3J, 5J (optional) |
| Resolution | 0.001J |
| Impact head size | Ф25.4mm, Ф19mm, Ф12.7mm (Customized available) |
| Specimen holder size | Ф89mm, Ф60mm |
| Specimen size | 100 mm x 100 mm, Ф100mm |
| Gas resource pressure | 0.3MPa - 1.0MPa |
| Gas resource interface | Ф6mm |
| Instrument dimension | 492mm(L) × 383mm(B) × 752mm(H) |
| Power supply | AC 220V 50Hz |
| Net weight | 44kg |
