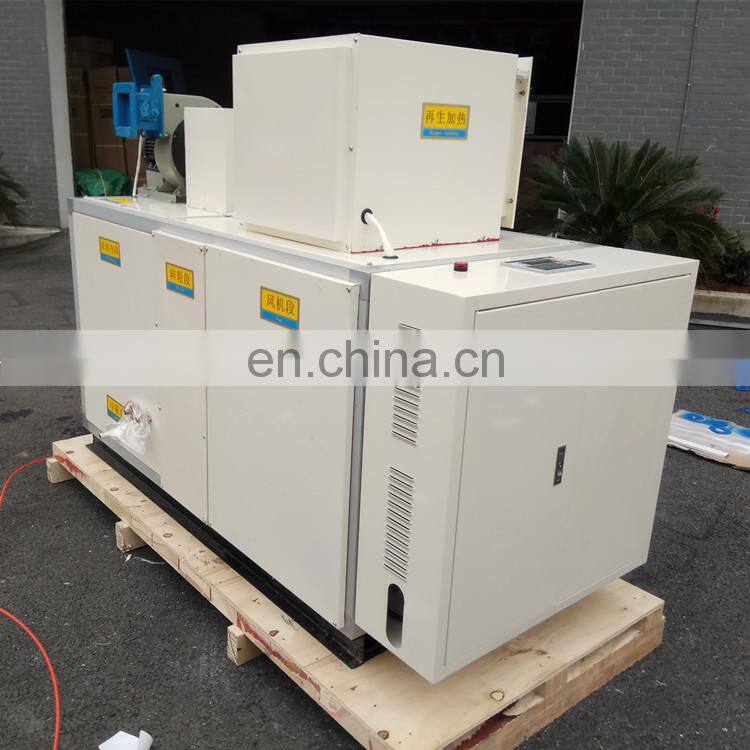

desiccant dehumidifier air handling unit

FOB Price

USD $3,500 - $3,500 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	OEM	Place of Origin	Zhejiang, China
Model Number	MTDD-1000	Certification	CE, ROHS
Type	Desiccant Dehumidifier	Function	Adjustable Humidistat, Auto Restart, Automatic Defrost, Automatic Humidistat Control, External Drain Connect, LED Display, Washable Air Filter
Voltage (V)	380	Power (W)	18000
Working Temperature Range	-20-38
Fan Speed	1	Dimensions (L x W x H (Inches)	7839.457
Coverage Area (sq. ft.)	384	Capacity (pints / 24h)	2152

Desiccant dehumidifier air handling unit product Description

1. Working temperature -20 to 38 C.

2. Three years warranty

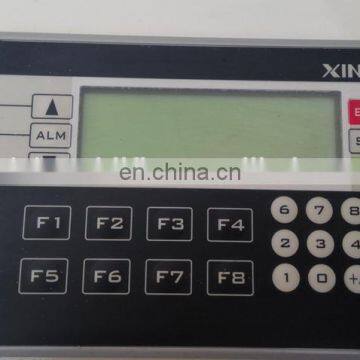

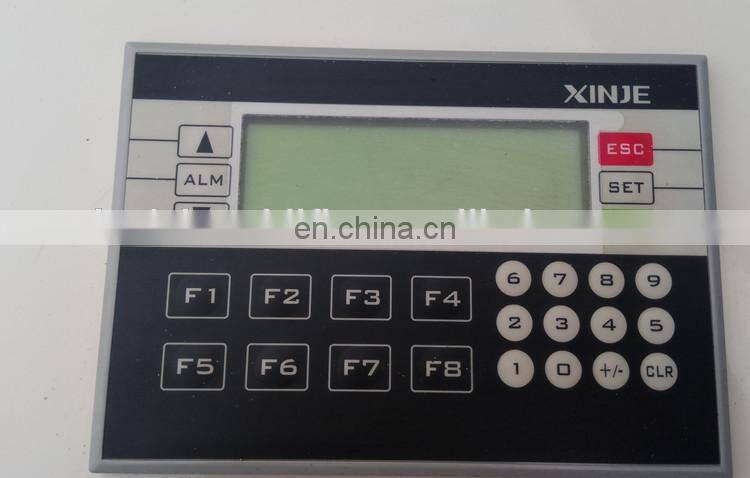

3. PLC controller

4. Voltage 220V 60HZ single phase or 220V 60HZ three phases or 380V 50HZ three phase or 460V 60HZ three phase.

Model		MTDD-1000
Process air volume Range		m³/h	800-1200
Nominal process air volume		m³/h	1000
Nominal regeneration air volume		m³/h	400
Nominal dehumidification capacity 30° RH80%		L/H	8
Regeneration energy consumption	Steam	Kg/h	15
	0.4Mpa	Pipe dia.	DN20
	ELec.	kw	11
Process Fan power		kw	1
Regeneration Fan power		kw	0.75
Drive Motor power		kw	0.1
Regeneration Installed Power	Steam	kw	0.8
Regeneration Installed Power	ELec.	kw	7.5

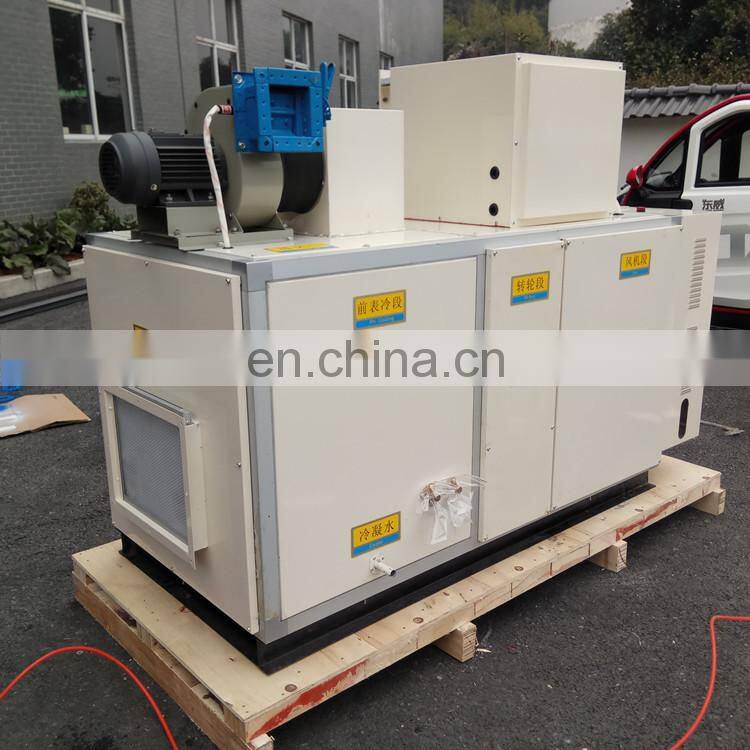

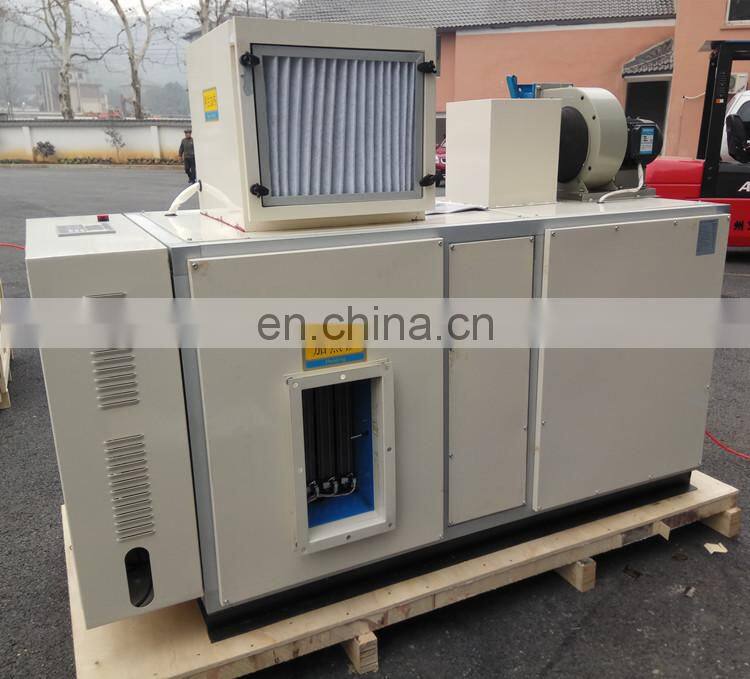

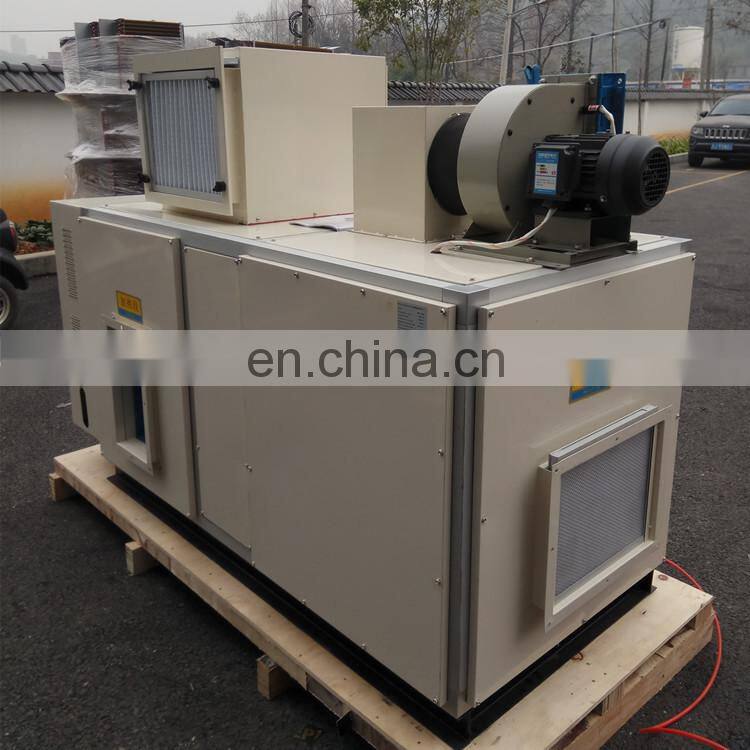

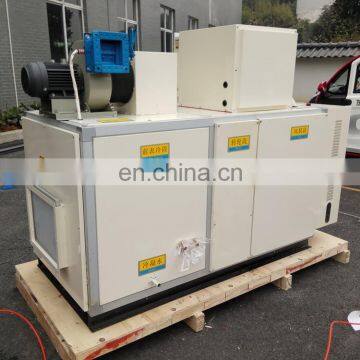

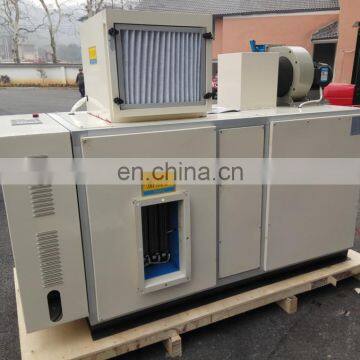

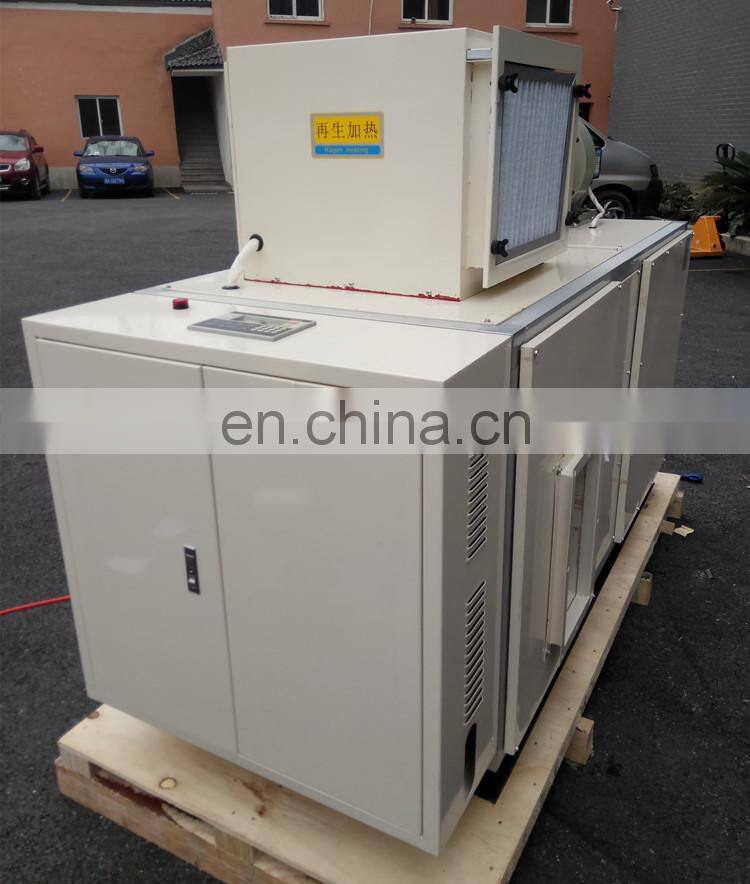

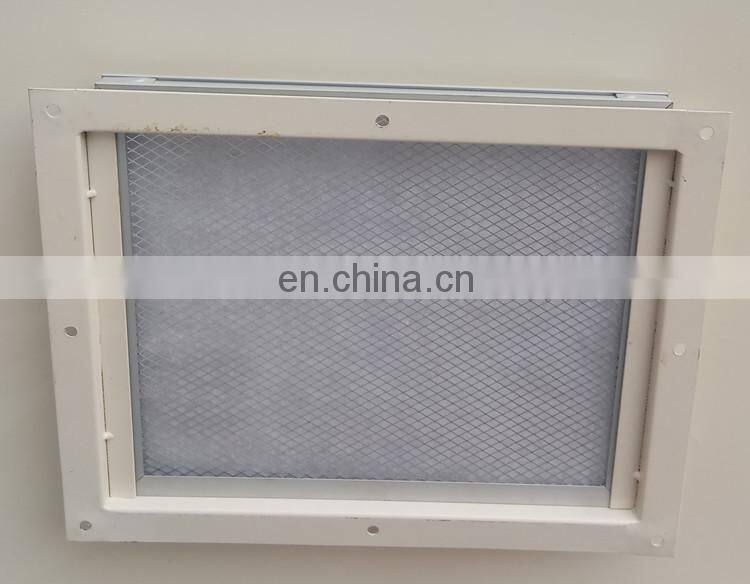

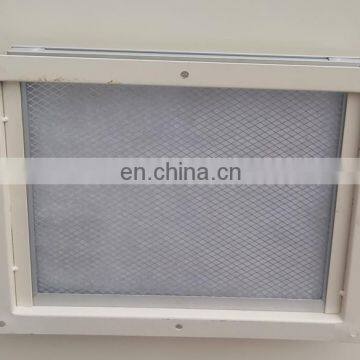

Picture details:
