Home > Products > Hydraulic rig > supply hydraulic water borehole drilling machine XY-180/ well equipment core drilling rig for sale high efficiency
supply hydraulic water borehole drilling machine XY-180/ well equipment core drilling rig for sale high efficiency
- 20 Set / Sets per Month
- Qingdao
- T/T L/C
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Brand Name: | HuaxiaMaster | Place of Origin: | China | Model Number: | XY-180 |
| Type: | Core Drilling Rig | Certification: | iso9001 | Warranty: | 6months |
| Weight: | 760KG | Dimension(L*W*H): | 2200*1300*1350 mm | Power Type: | Diesel |
| Usage: | Water Well | Condition: | New | Power(W): | 15KW |
Product Description

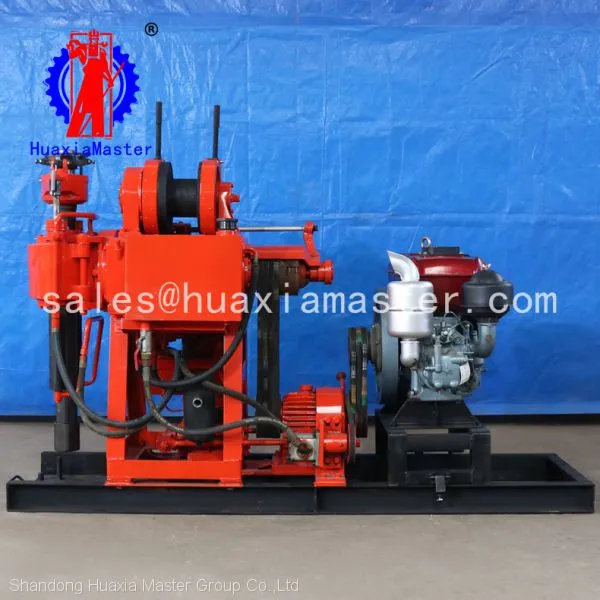

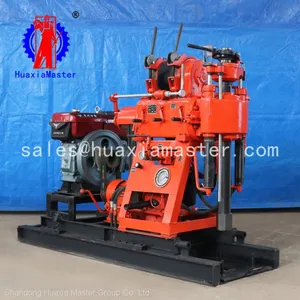

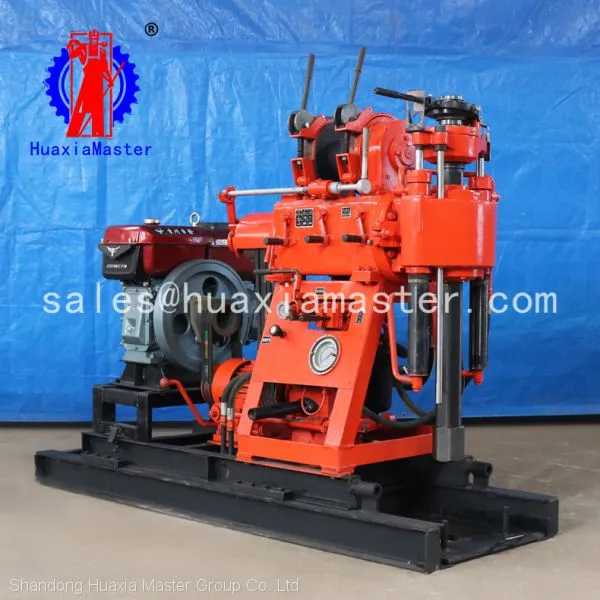

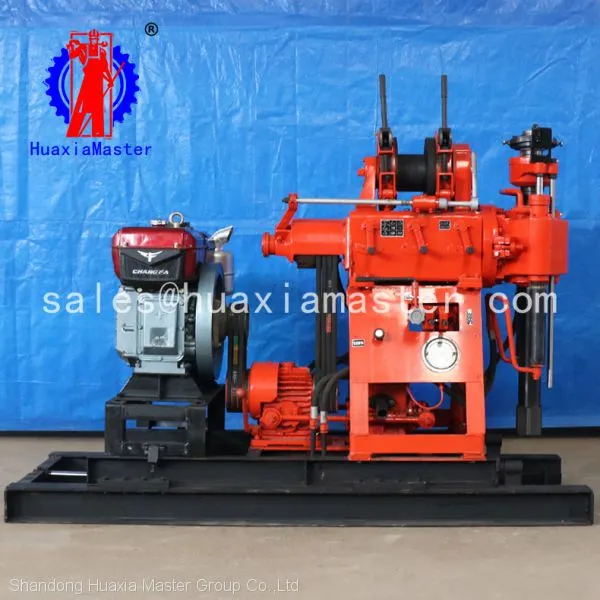

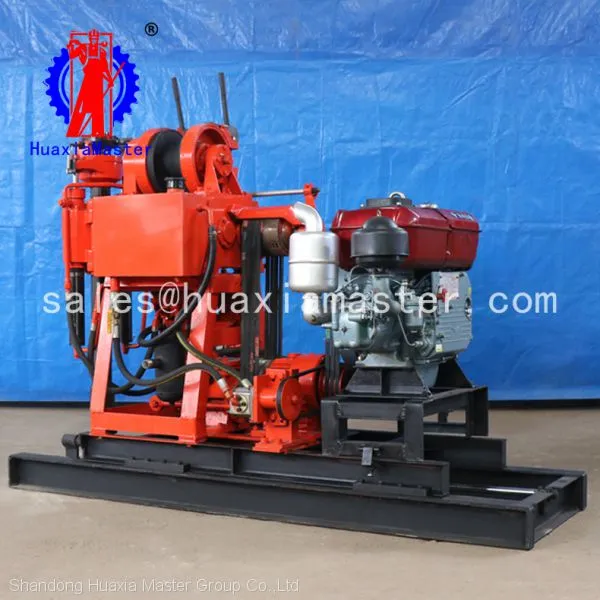

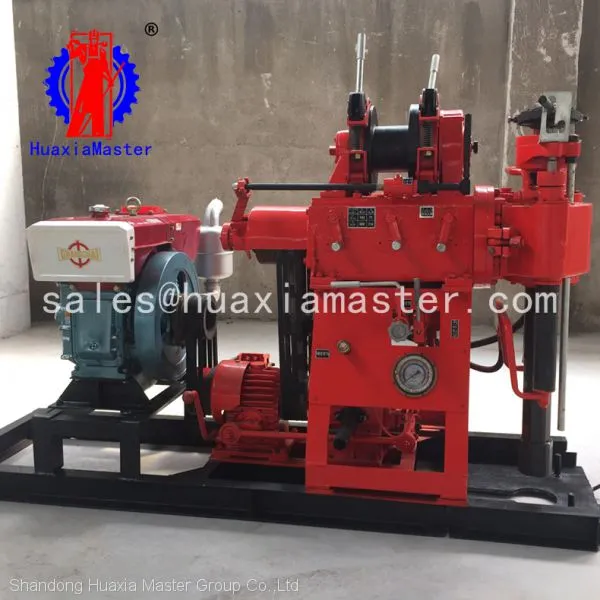

XY-180 hydraulic core drilling rig
1. Applications of XY-180 hydraulic core drilling rig
The XY-180 hydraulic core drilling rig is designed on the basis of the XY-1A hydraulic core drilling rig. It is a low speed and high torque portable drilling machine with oil pressure.
This drill rig is suitable for engineering geological survey of railway, hydropower, traffic, bridge, dam foundation and other buildings, geological core drilling and physical investigation, drilling holes for small holes and blasting holes, a small water well drilled.
1. Parameters of XY-180 hydraulic core drilling rig
Drilling depth | 180/150/120/90/70/30 |
75/91/110/130/150/300 | |
Maximum opening diameter | 375 |
Drill pipe diameter | 42/50 |
Spindle speed (r/min)
| 71/142/310/620 |
Spindle stroke | 450 |
Upgrading ability (KN) | 15 |
Diameter of steel wire | 12 |
Type | gear pump |
Model | YBC-12/80 |
Rated pressure (MPa)
| 8 |
Rated speed (r/m) | 1500 |
Displacement | 8 |
Power supply | ZS1115 diesel engine and 15kw motor |
