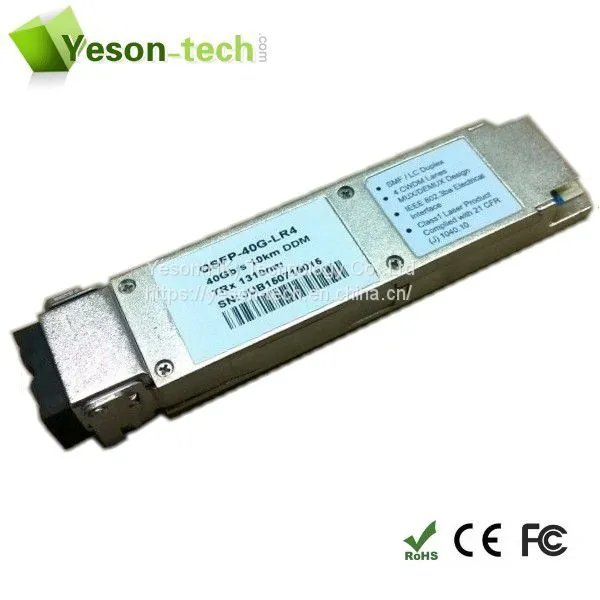

QSFP + Optical Transceiver SFP Modules
Negotiable
MOQ: 1 Pair (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Yeson-tech
Place of Origin:
China
Model Number:
353
Payment & Shipping
Payment Methods:
Port of Shipment:
sz
Delivery Detail:
3 days
Related Products
Brand Name
Yeson-tech
Place of Origin
China
Model Number
353
Product details:
The Quad Small Form-factor Pluggable ( QSFP or QSFP+) is a compact, hot-pluggable transceiver used for data communications applications. It interfaces a network device motherboard (for a switch, router, mediaconverter or similar device) to a fiber optic cable. It is a industry format jointly developed and supported by many network component vendors. QSFP+ transceivers are designed to support Serial Attached SCSI,40GEthernet, 20G/40G Infiniband, and other communications standards.The QSFP Transceiver include 40GBASE-SR4 and 40GBASE-LR4 for different applications.
The Yeson 40GBASE QSFP+ (Quad Small Form-Factor Pluggable Plus) modules offer customers a wide variety of high-density 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider transport applications.
Features
The Yeson 40GBASE QSFP+ (Quad Small Form-Factor Pluggable Plus) modules offer customers a wide variety of high-density 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider transport applications.
Features
- 4 independent full-duplex channels
- Up to 11.2Gbps data rate per channel
- MTP/MPO optical connector
- QSFP MSA compliant
- Digital diagnostic capabilities
- Capable of over 100m transmission on OM3 multi-mode ribbon fiber
- CML compatible electrical I/O
- Single +3.3V power supply
- Operating case temperature: 0~70C
- XLPPI electric interface (with 1.5W Max power)
- RoHS-6 compliant
Applications
40G Ethernet
Infiniband interconnects
40G Telecom connections
Data Centers
Yeson 40G QSFP+
| Item No | Data Rate | Distance | Wavelength | Connector | Media |
| YTQSFP-40G-SR4 | 40G/ps | 100M | 850nm | MTP/MPO | MM |
| YTQSFP-40G-CSR4 | 40G/ps | 300M | 850nm | MTP/MPO | MM |
| YTQSFP-40G-IR4 | 40G/ps | 2km | 4 CWDM | LC | SM |
| YTQSFP-40G-LR4 | 40G/ps | 10km | 4 CWDM | LC |
SM |
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
